Exploded Views

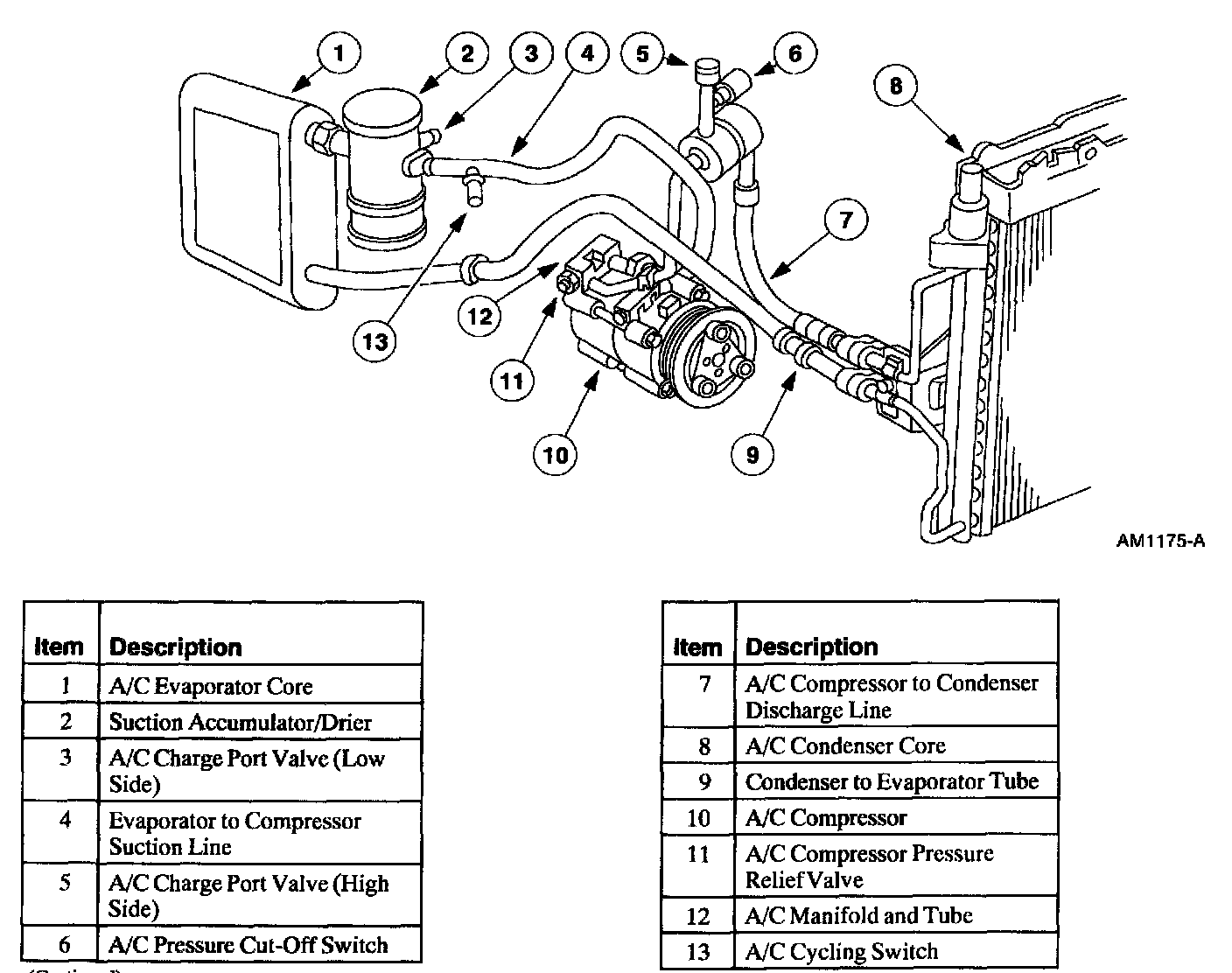

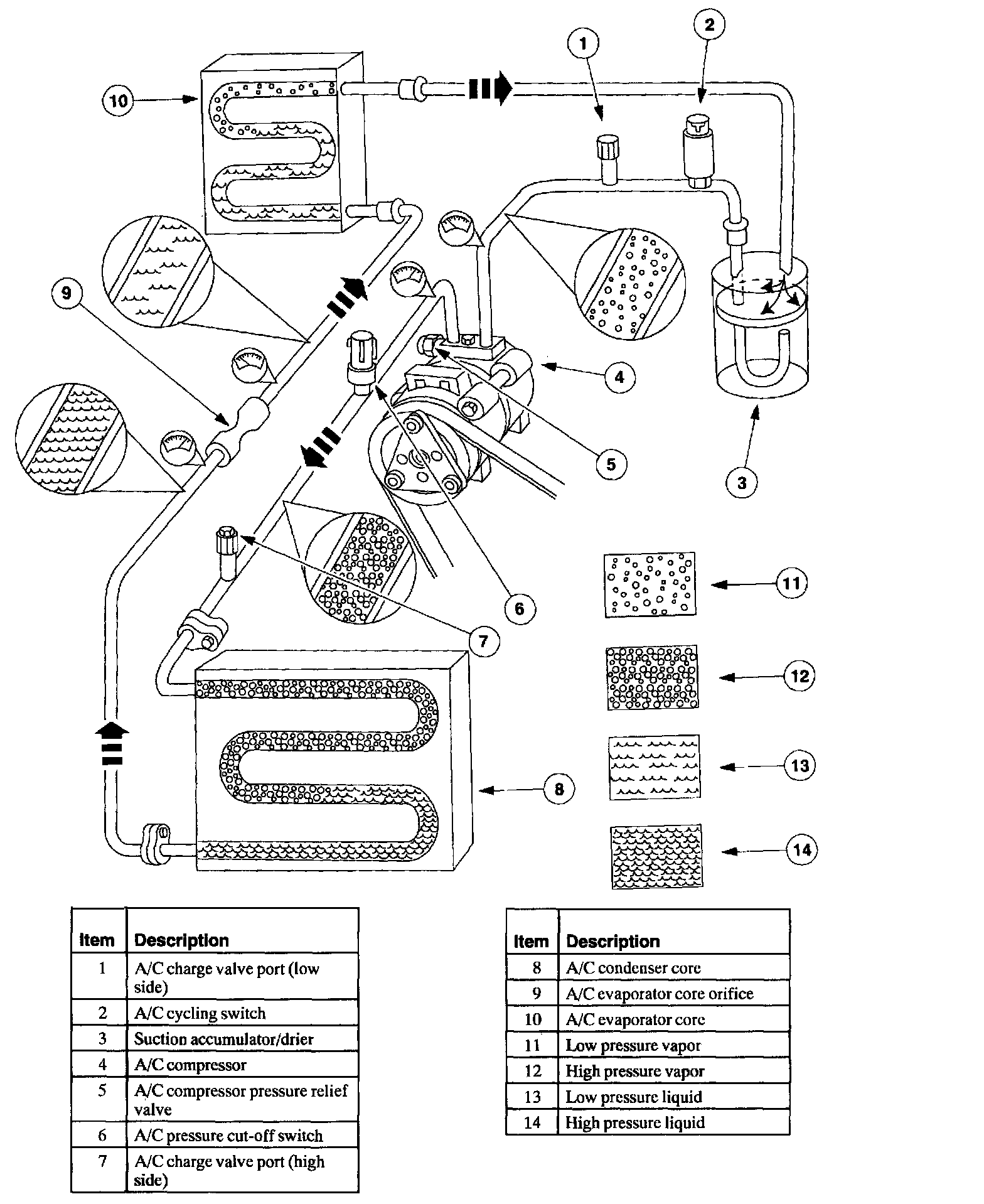

Clutch Cycling Orifice Tube Type Refrigerant System:











A/C Compressor Clutch Assembly:






Service Gauge Port Values:
