Home
>>
Lincoln
>>
2000
>>
Town Car V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Door Lock Control Module
Power Door Lock Control Module

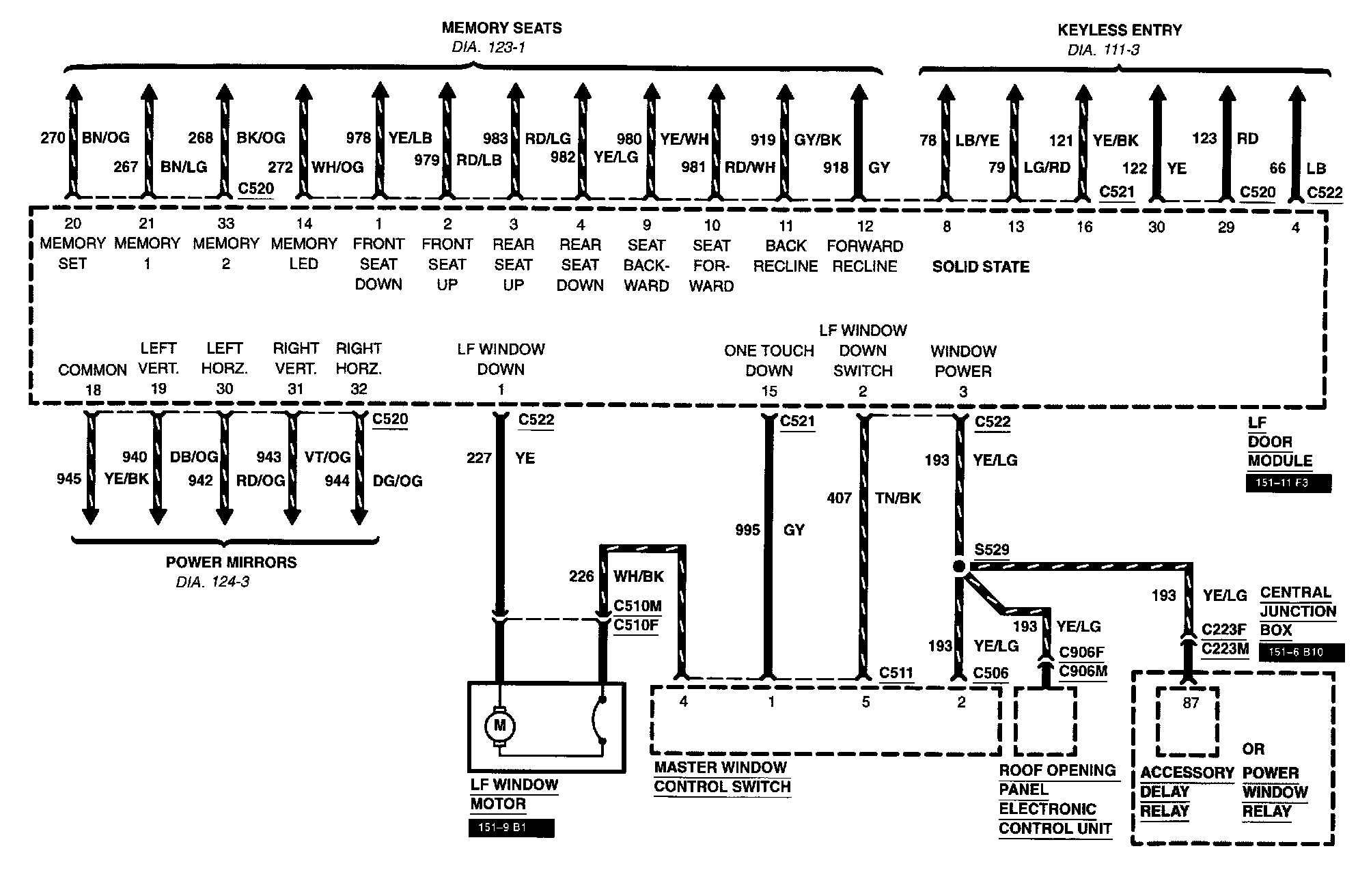

Diagrams 57-1:

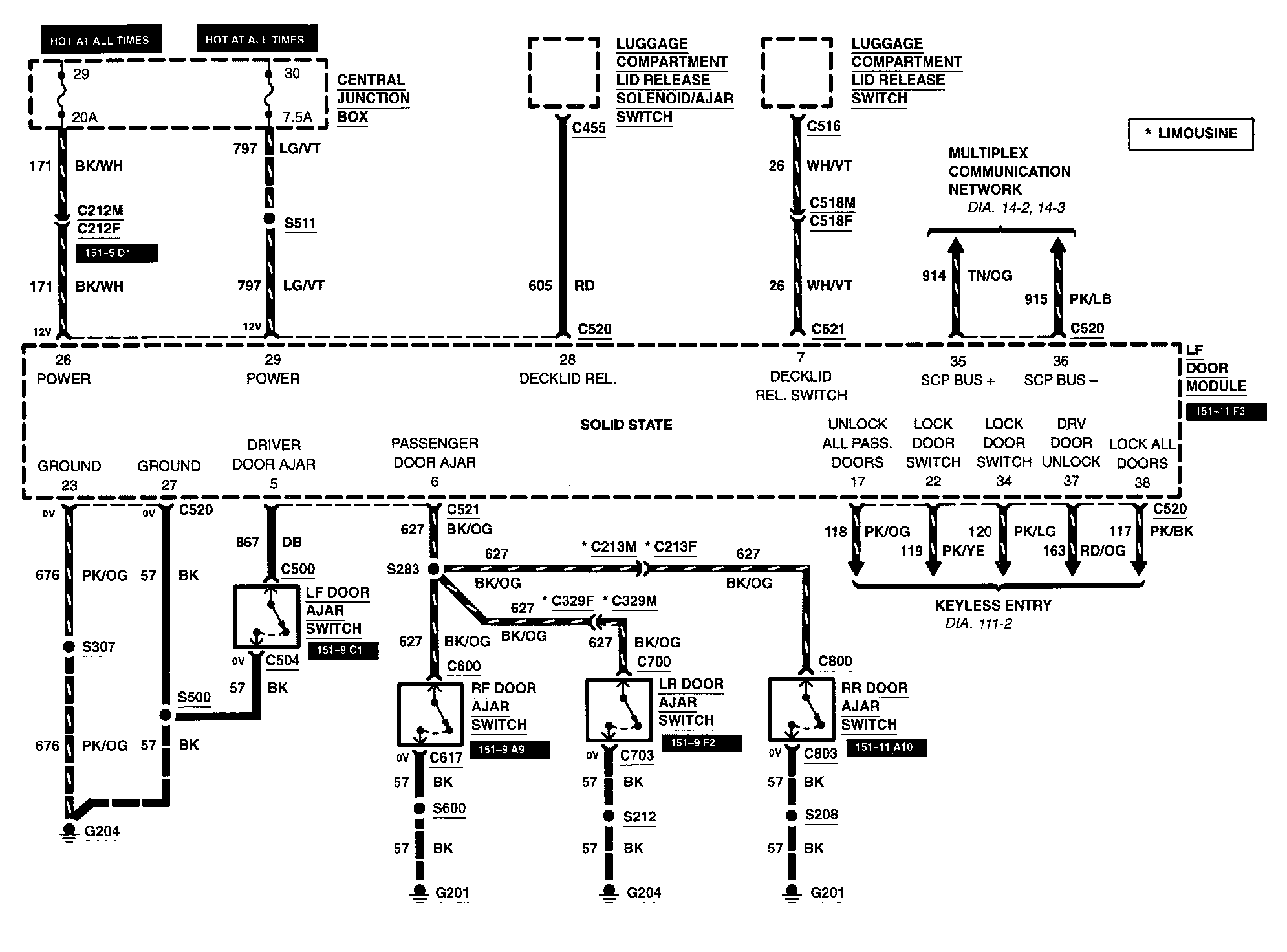

Diagrams 57-2:
