Home >> Lincoln >> 2000 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Module Communications Network >> Test M: No ISO 9141 Network Communication

Test M: No ISO 9141 Network Communication

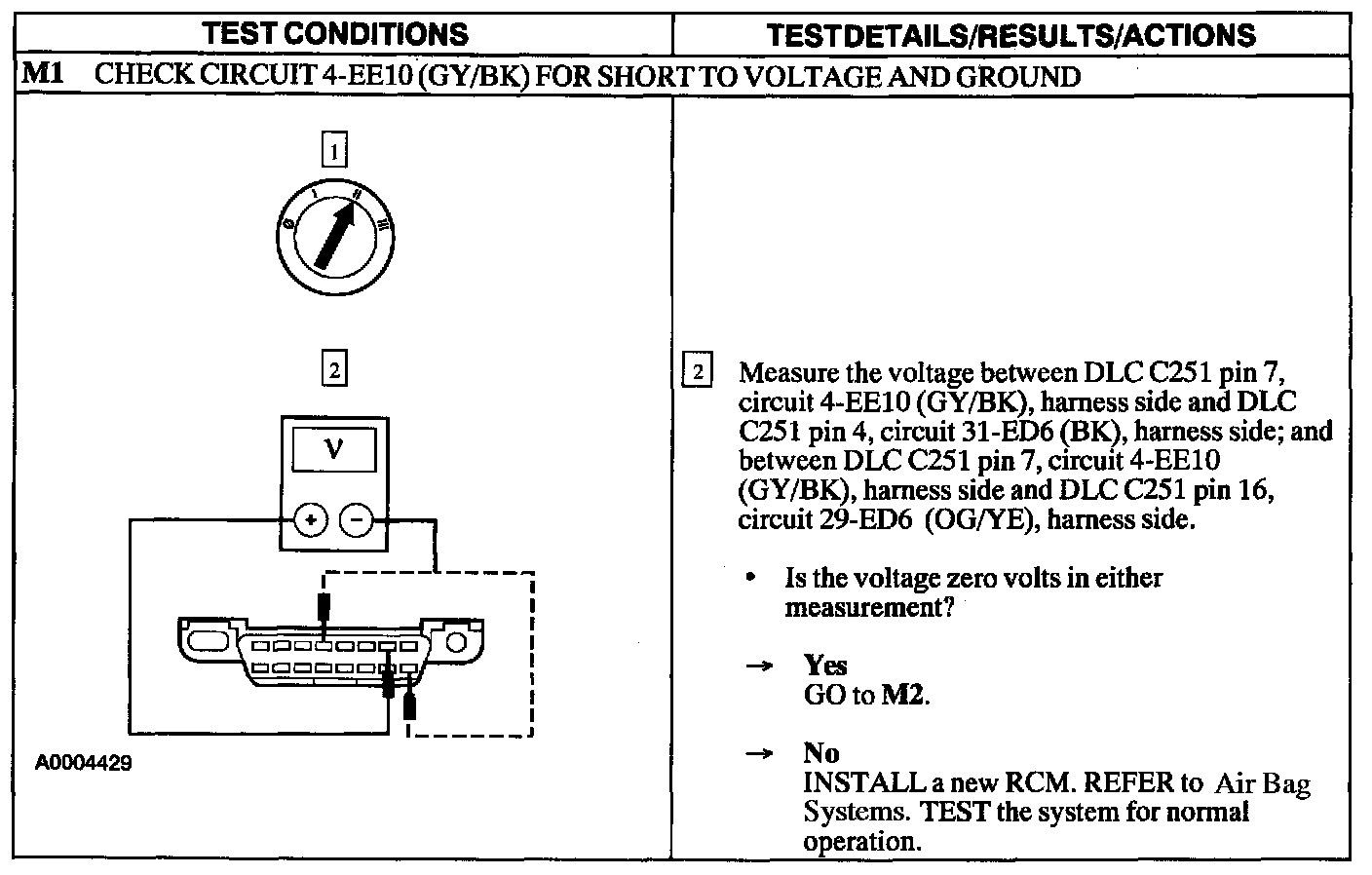

M1:

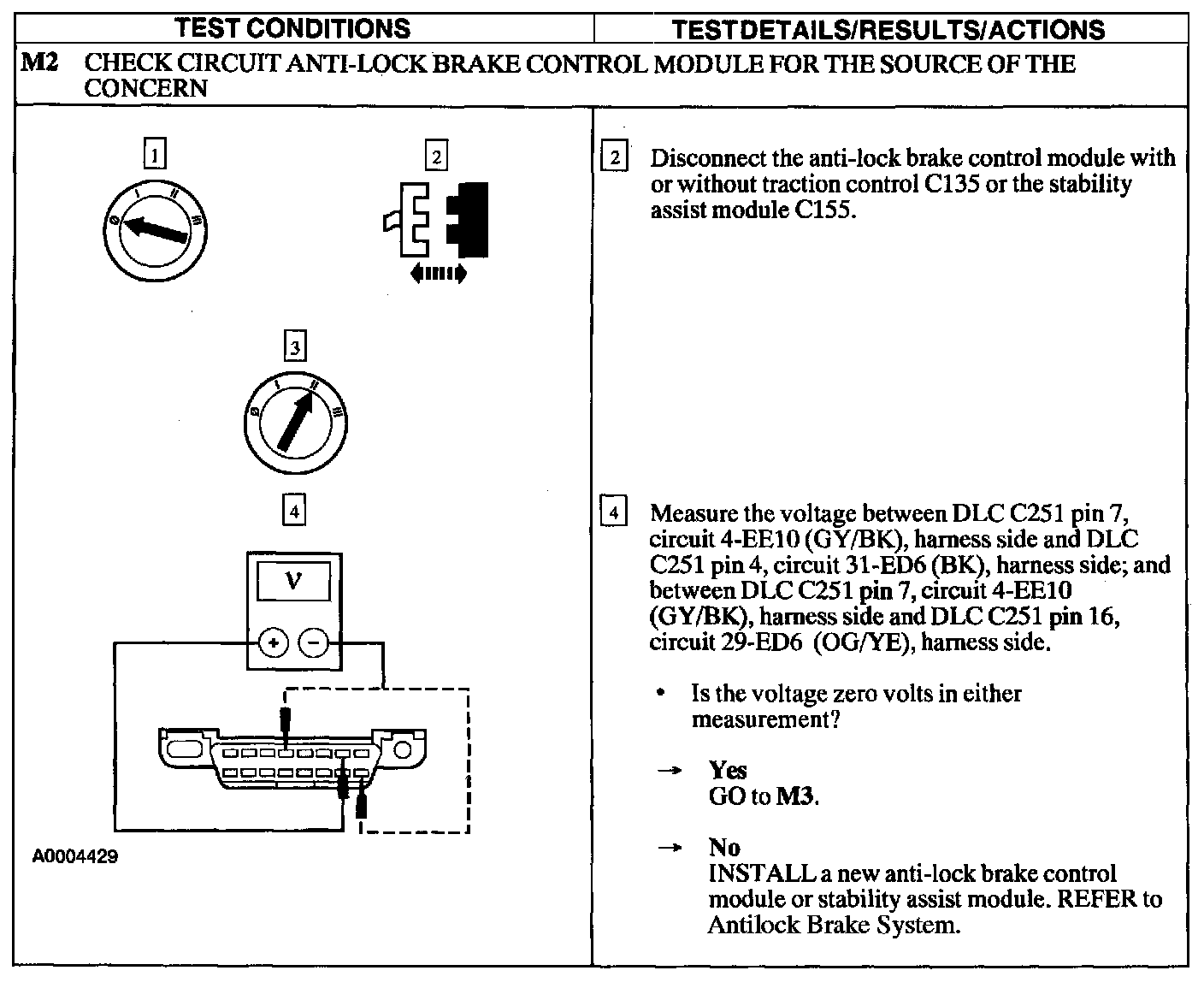

M2:

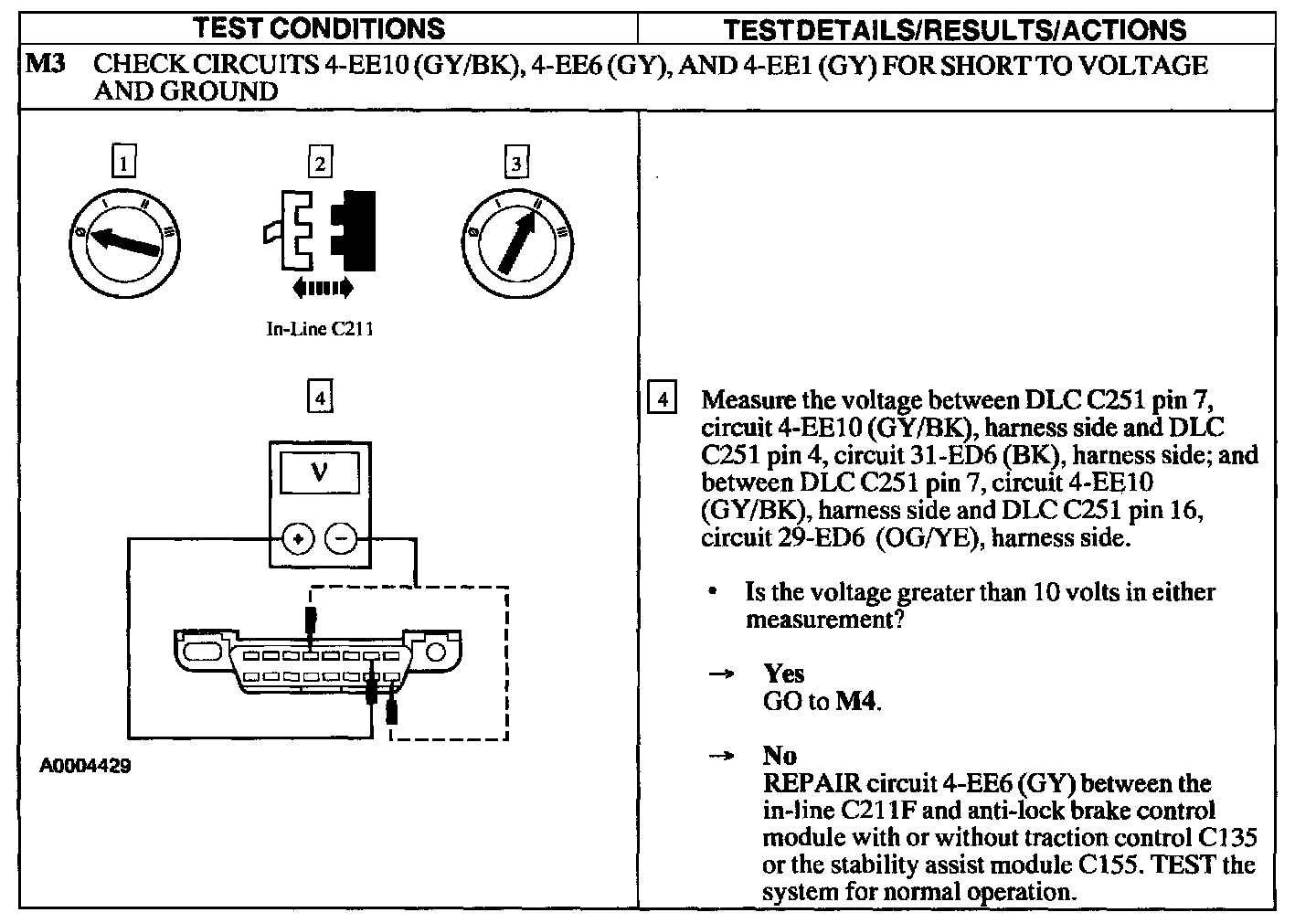

M3:

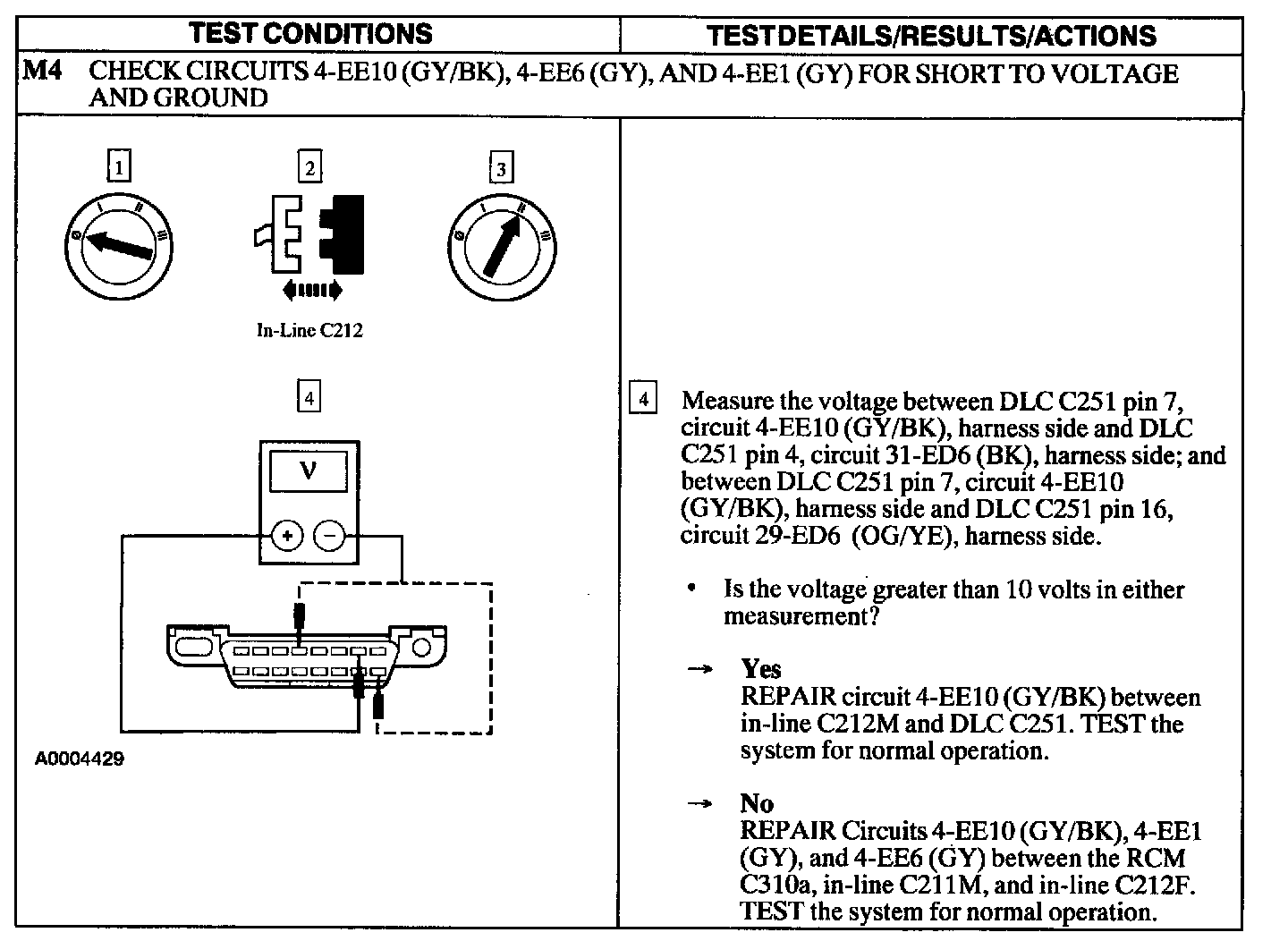

M4:
