Harness Locations

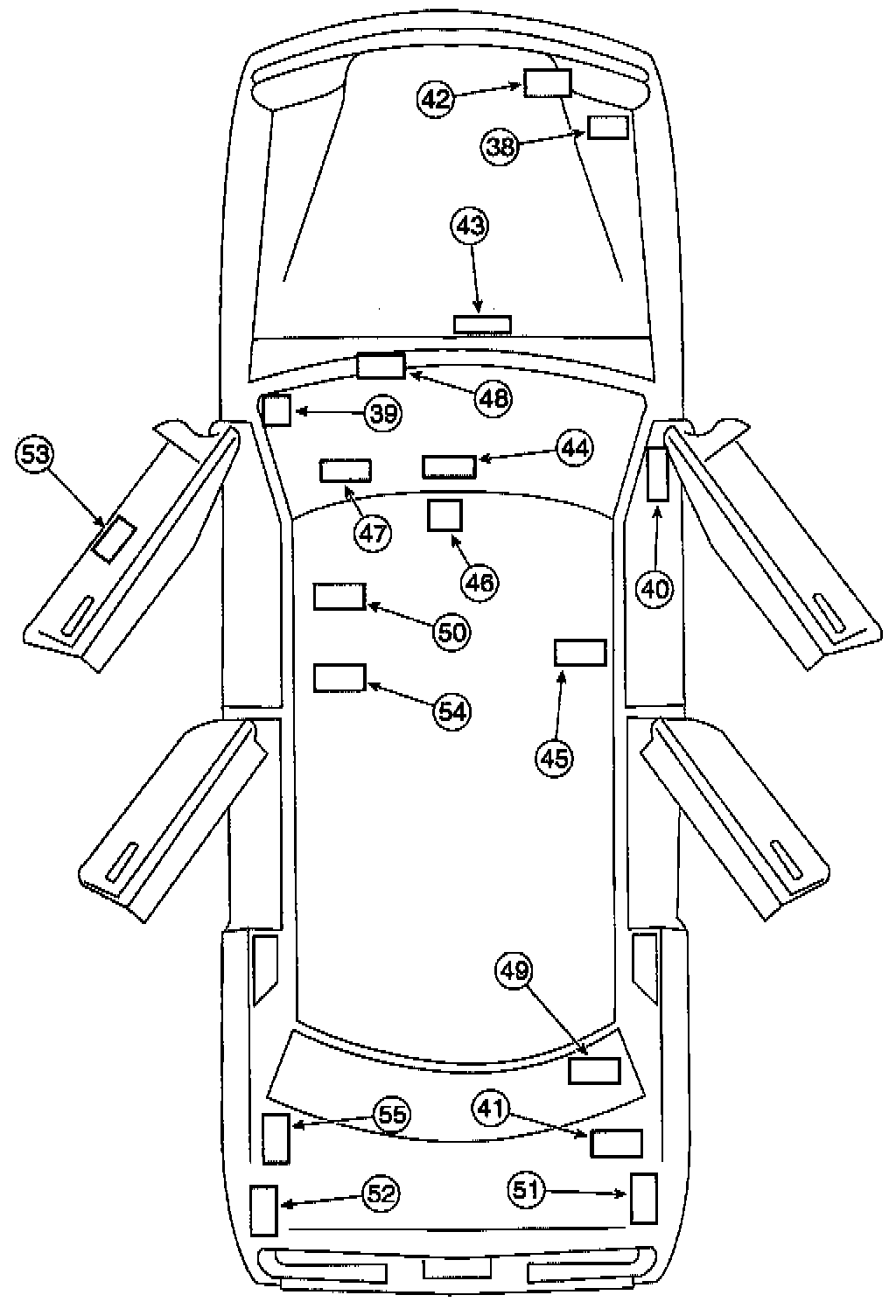

Diagram 100-00-06-1:

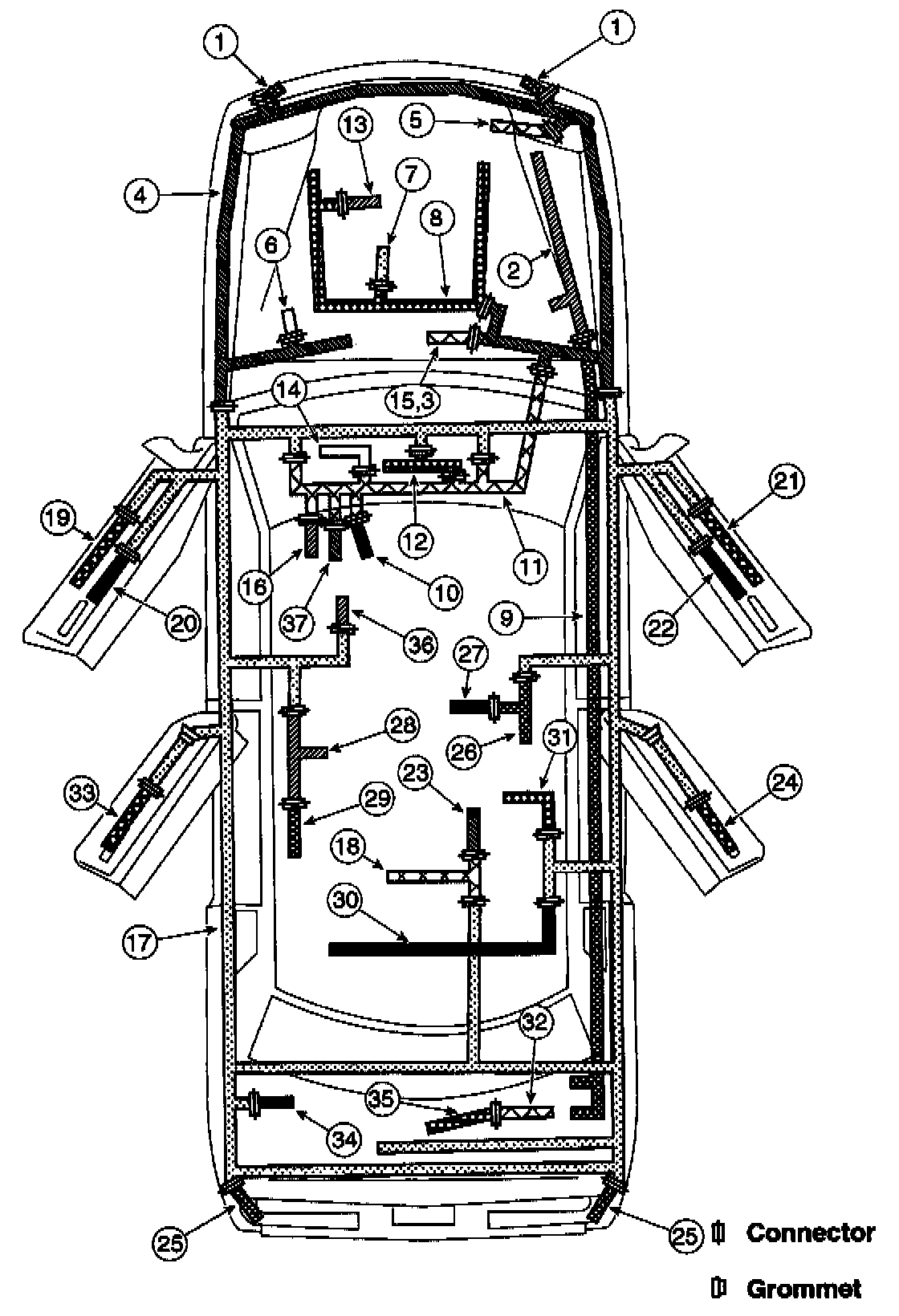

Diagram 100-00-06-2:

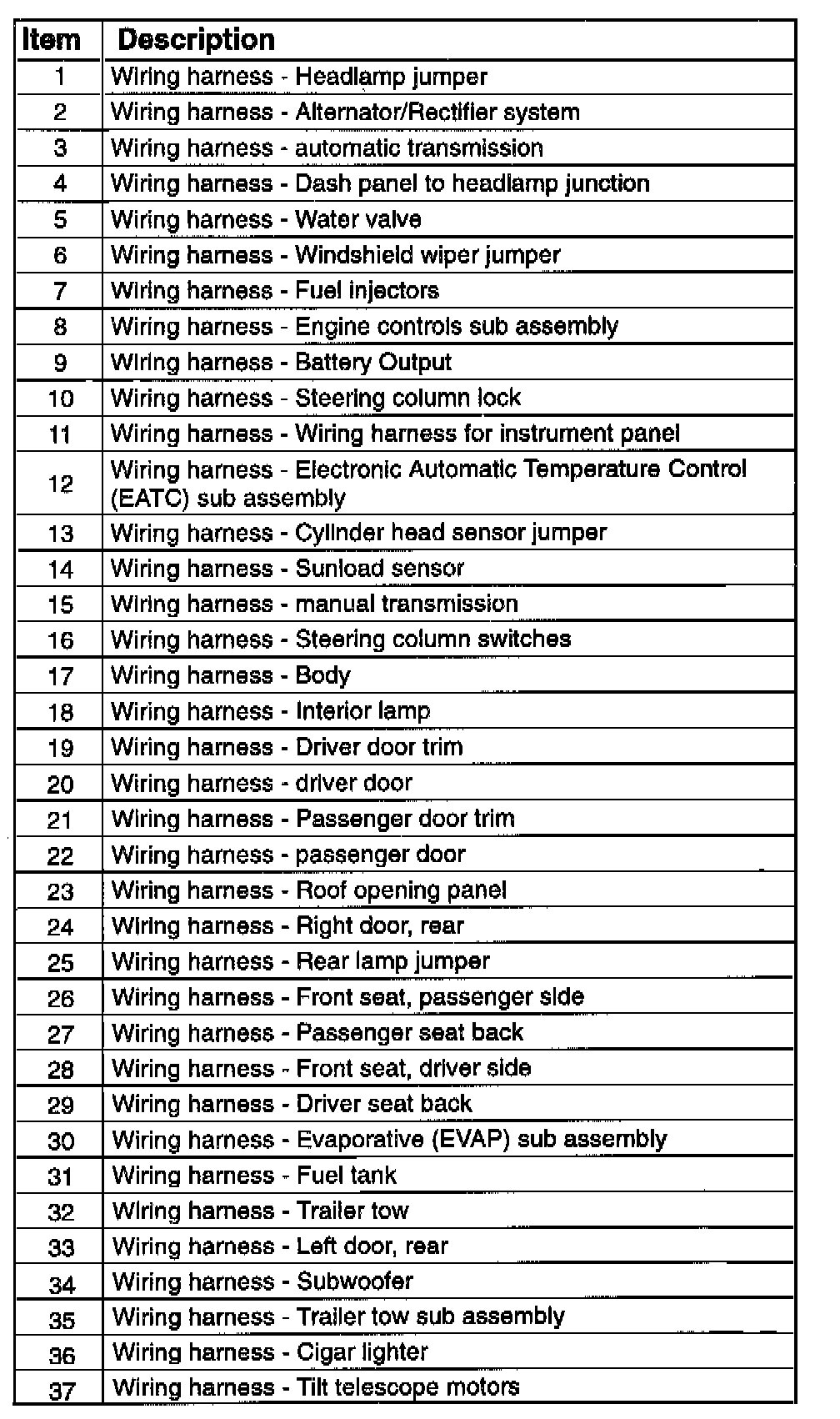

Diagram 100-00-06-3:






Diagram 100-00-06-4:
