Home >> Lincoln >> 2000 >> LS V8-3.9L VIN A >> Parts and Labor >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Images

Images

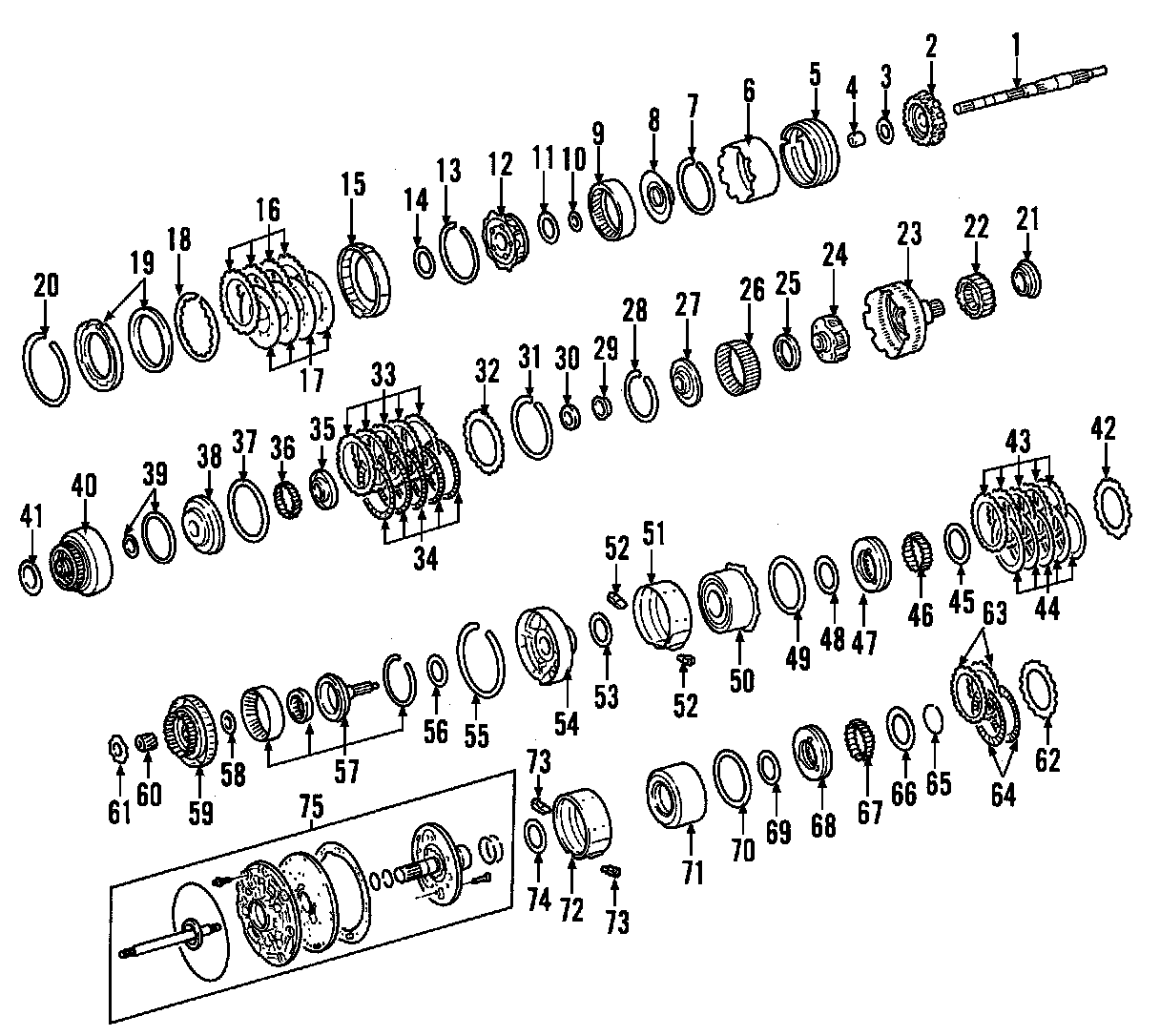

Gear Train, 5R55N:

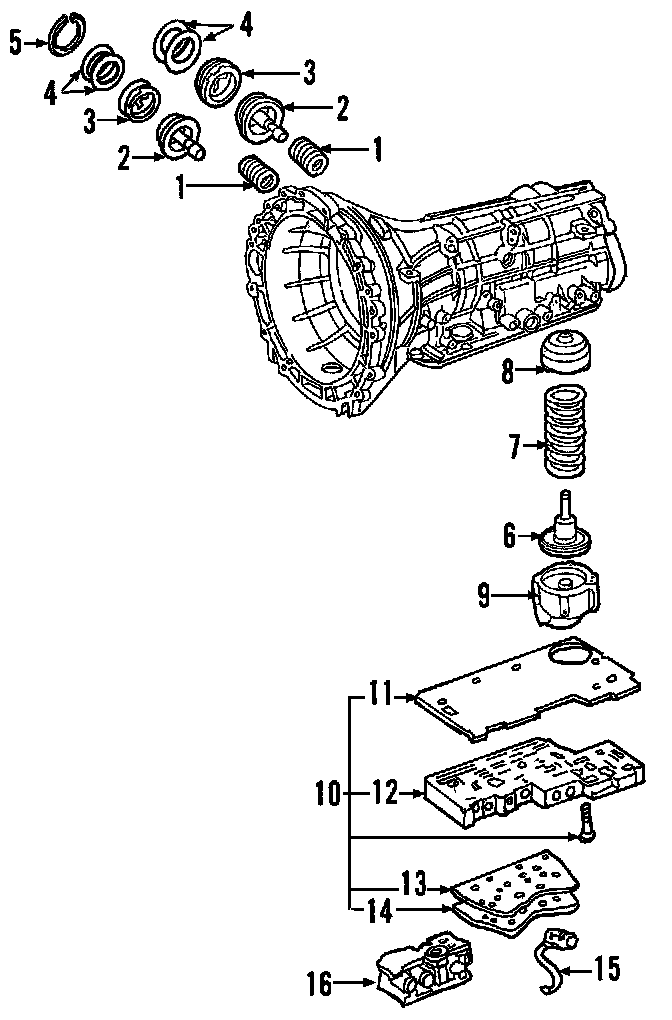

Valve Body, Accumulator Piston & Servos, 5R55N:

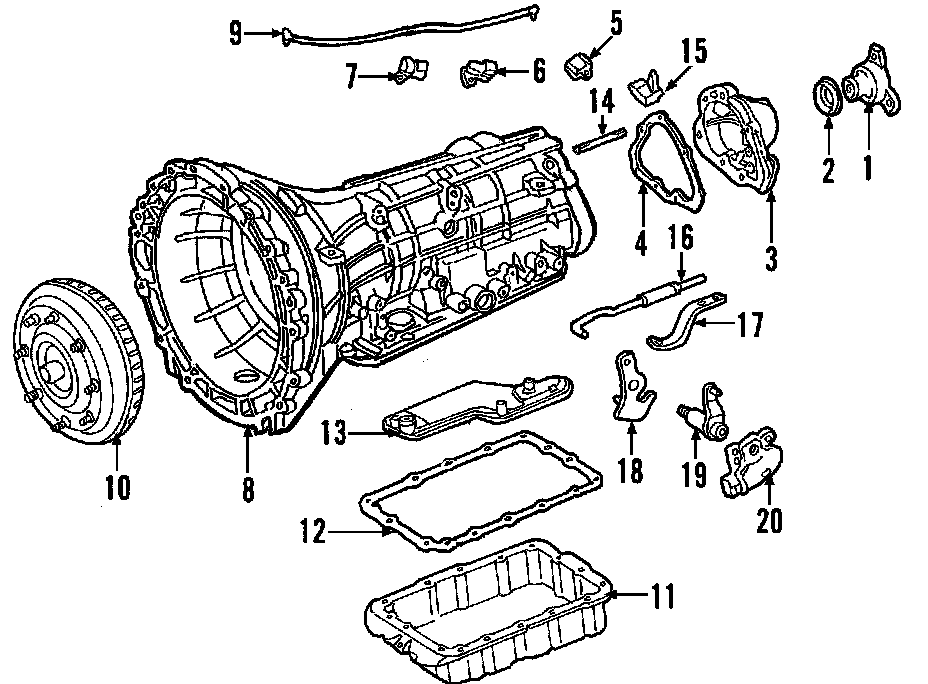

Case & Related Parts, 5R55N:
