Home >> Lincoln >> 1998 >> Town Car V8-4.6L VIN W >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Control Module >> Locations

Wiper Control Module: Locations

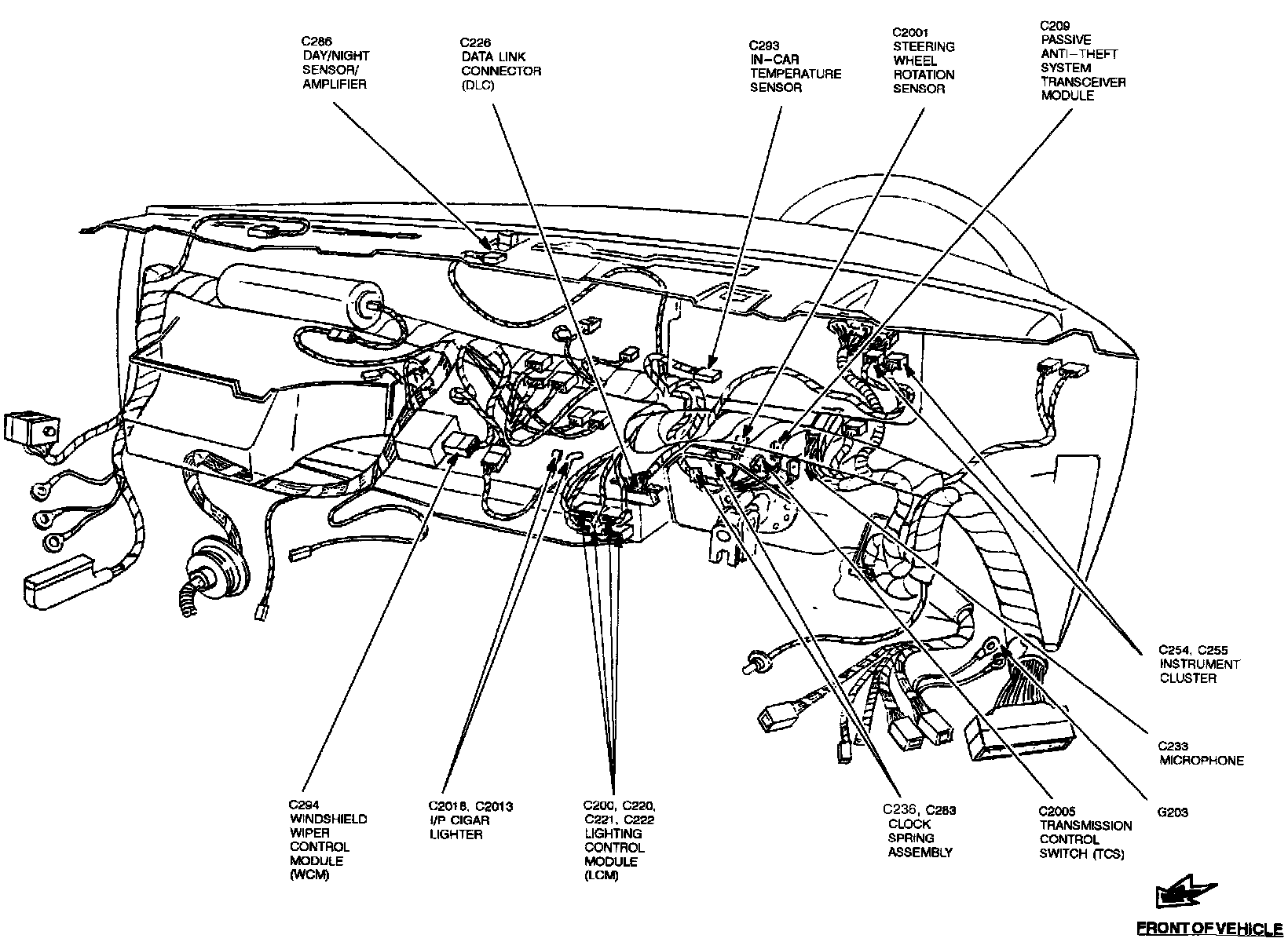

Instrument Panel View:





The Windshield Wiper Control Module is located behind LF side of instrument panel, above warning chime module.
