Transmission Position Sensor/Switch: Locations

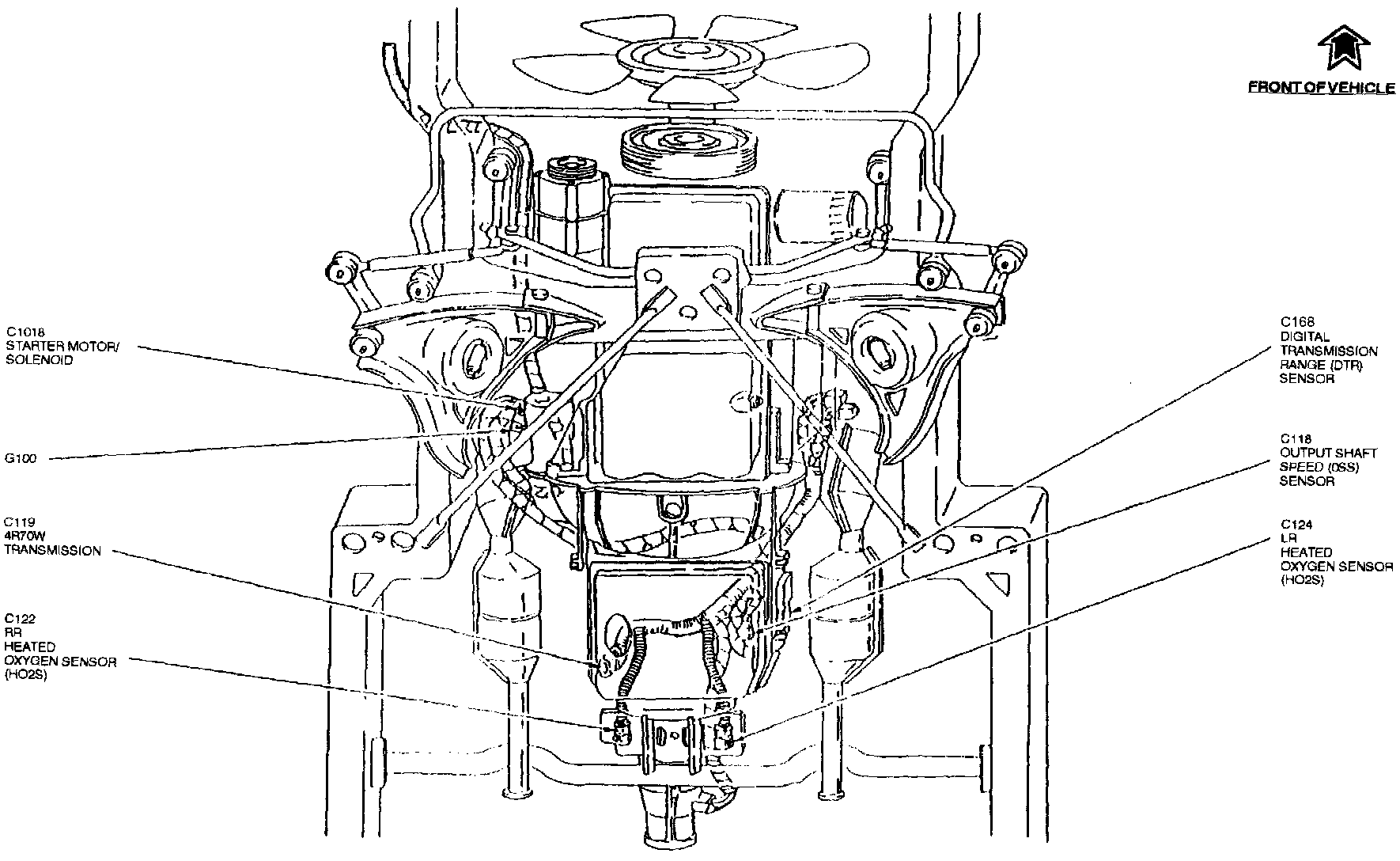

Transmission View:
The Digital Transmission Range Sensor is located at lower LF side of transmission.
