Town Car V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
Power Window Control Module
Power Window Control Module

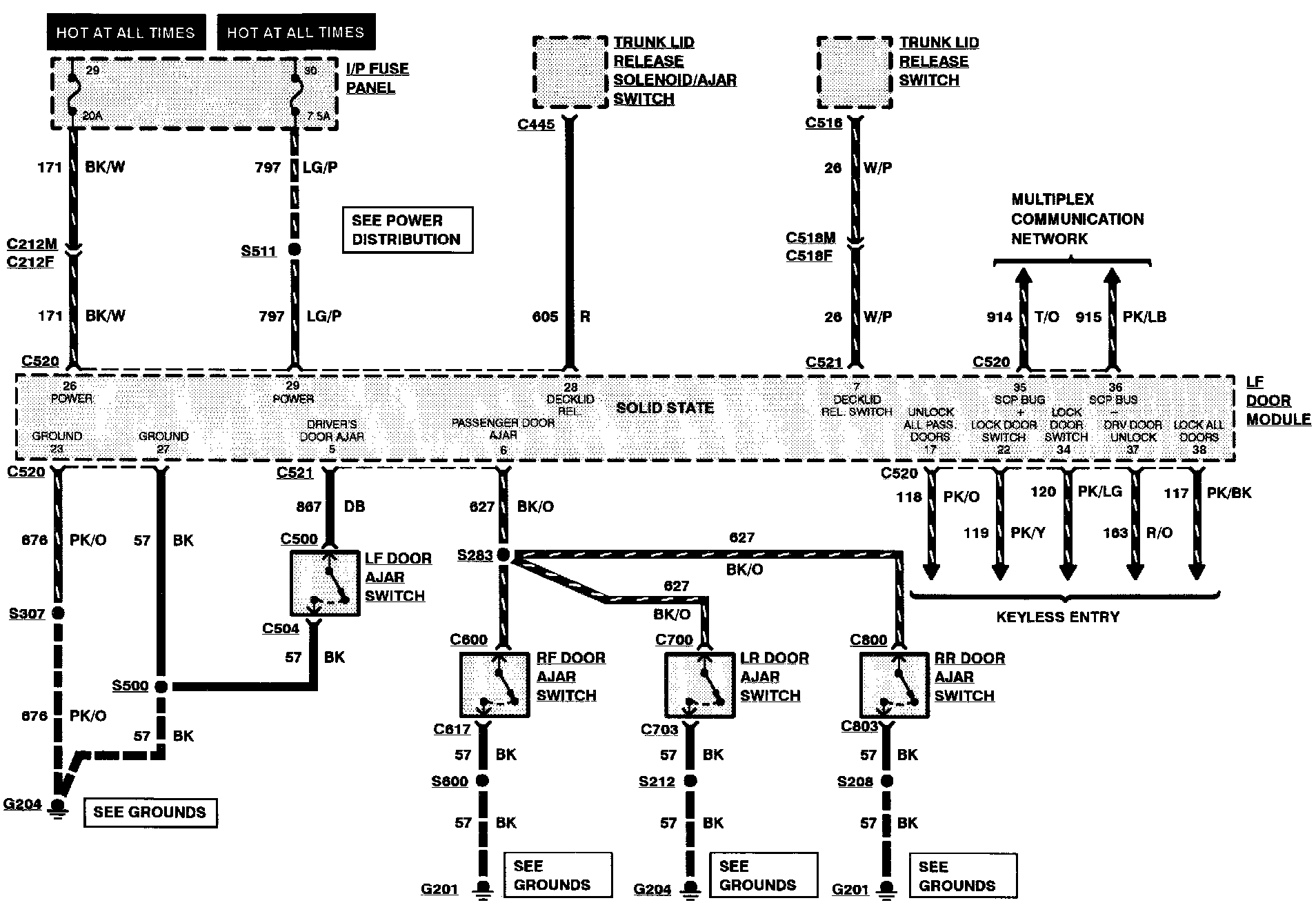

Driver's Door Module (Part 1 Of 2):

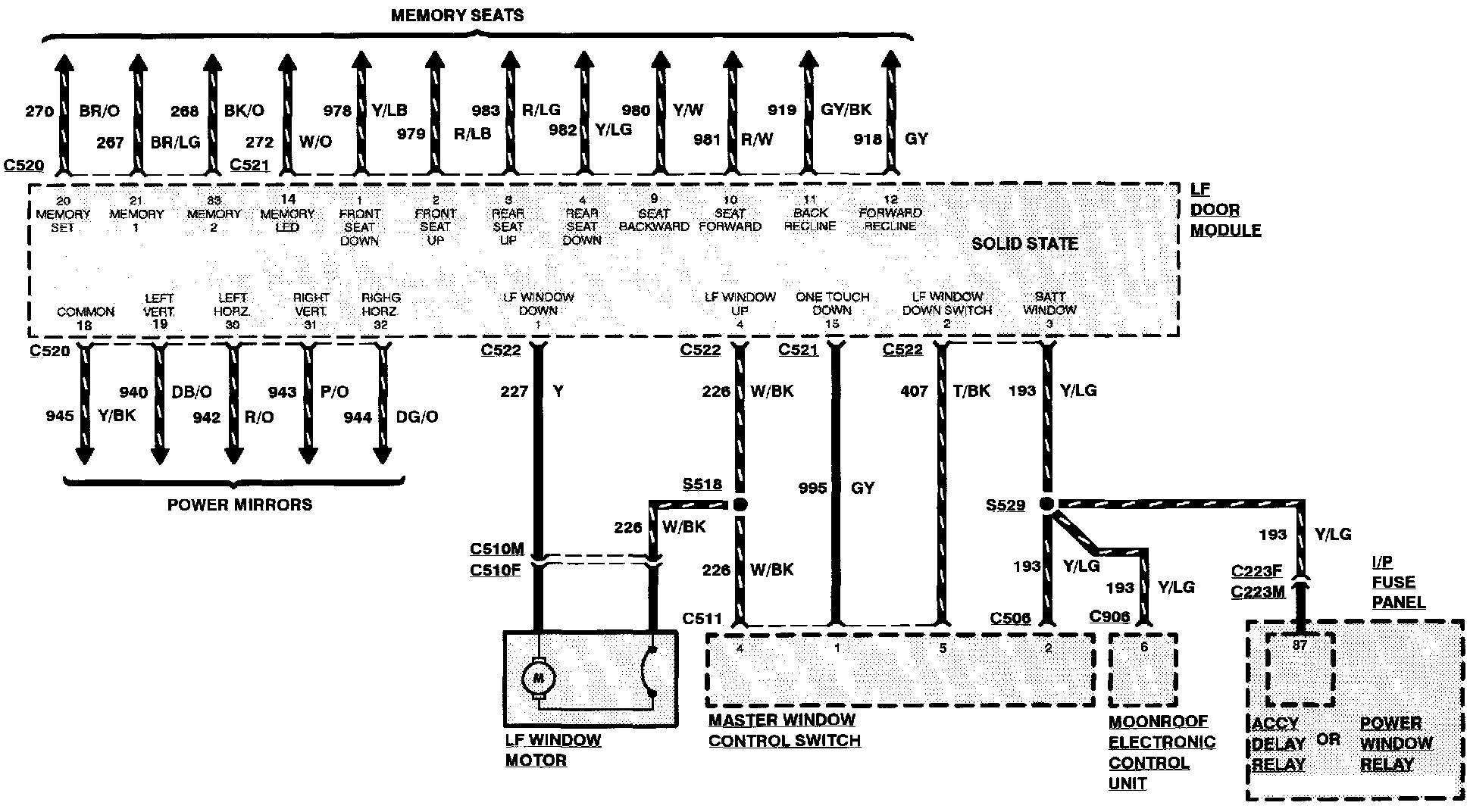

Driver's Door Module (Part 2 Of 2):
