Town Car V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Seat Temperature Control Module
>>
Locations
>>
Left Front
Left Front

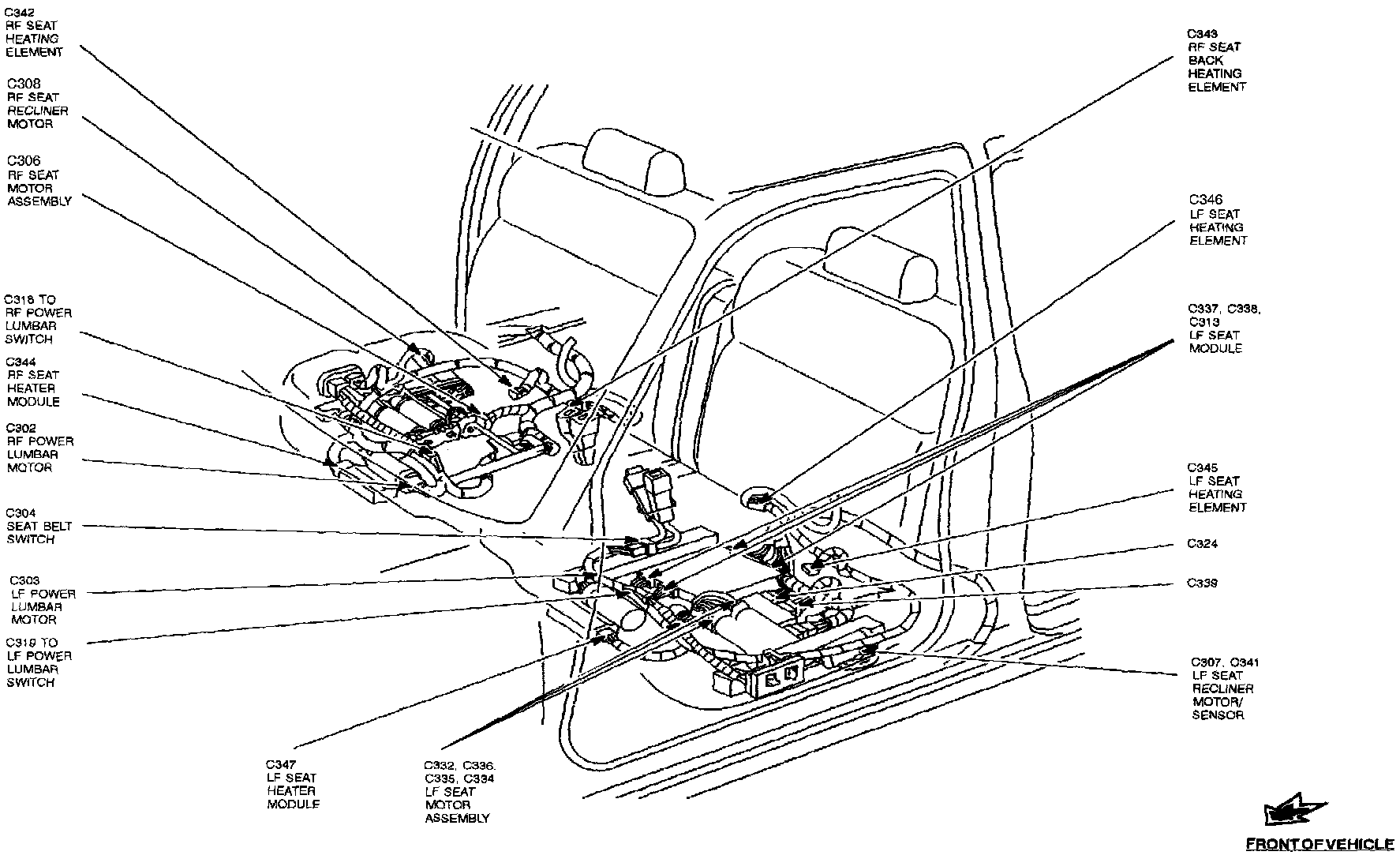

Front Seat Assemblies View:
The Left Front Seat Heater Module is located under LF seat, at the Front center of seat.
