Integrated Control Relay Module: Locations

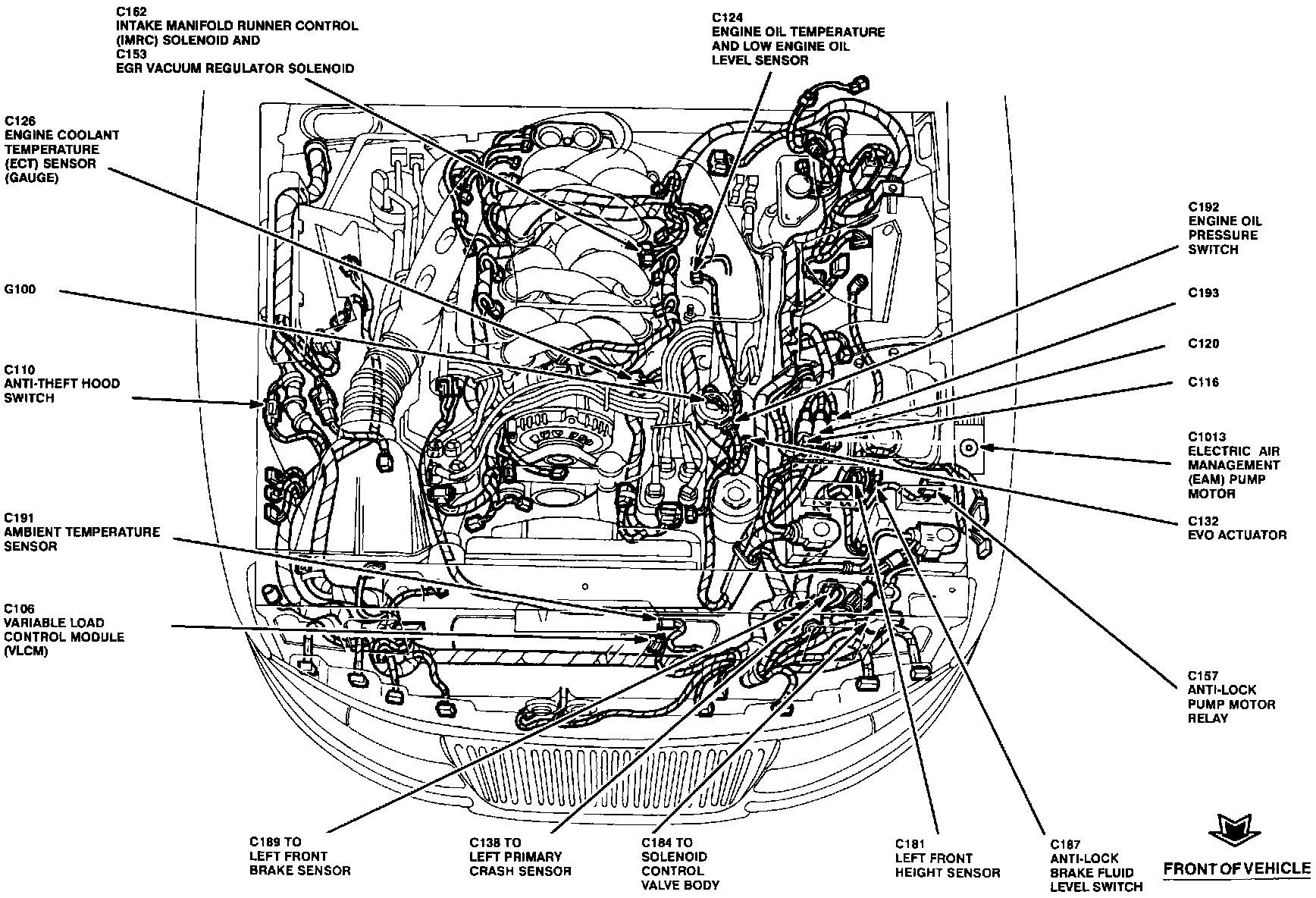

Engine View:
The Variable Load Control Module is located at the lower front center of the engine compartment.
