Left

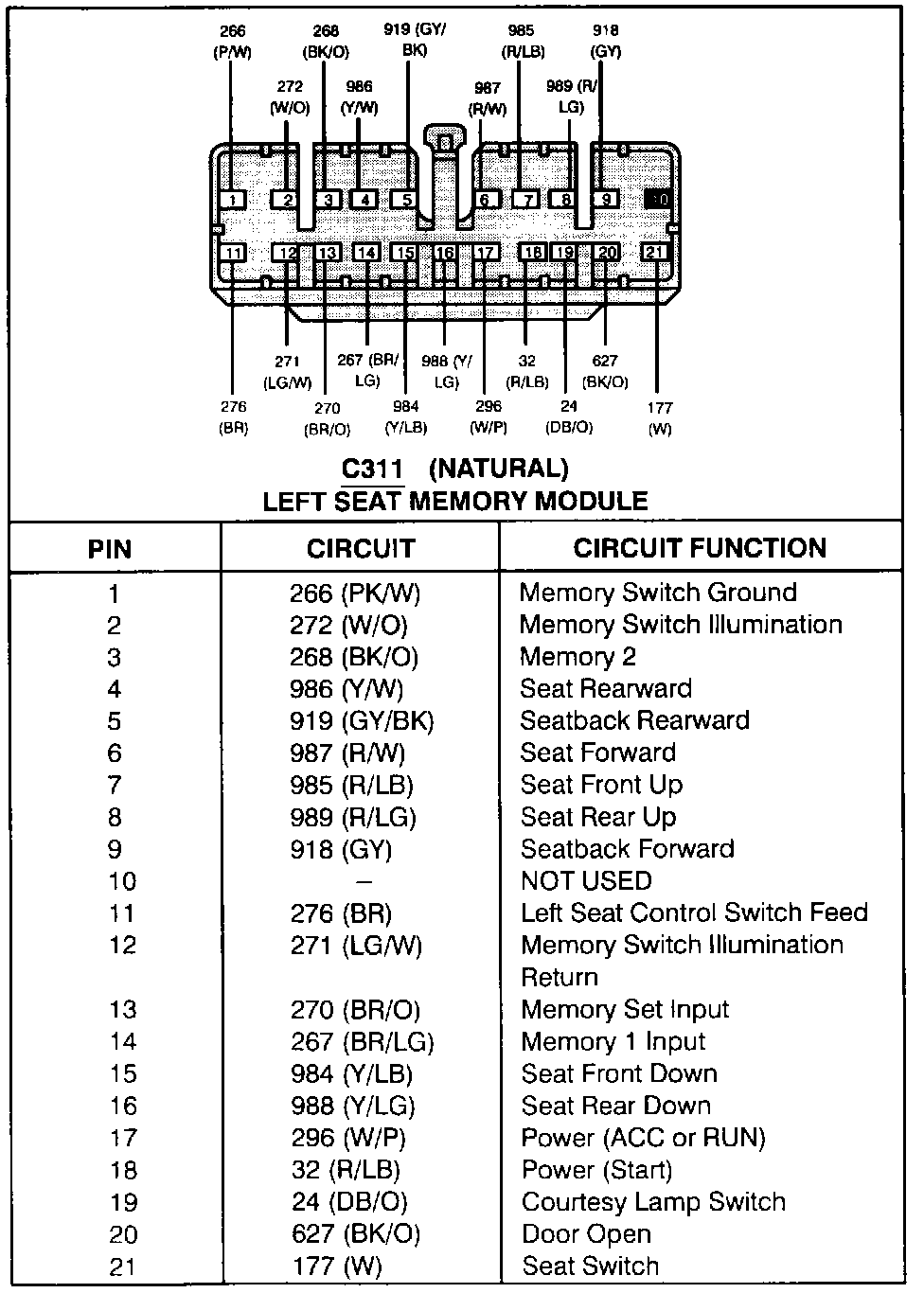

Left Seat Memory Module (C311):




Left Seat Memory Module (C350):

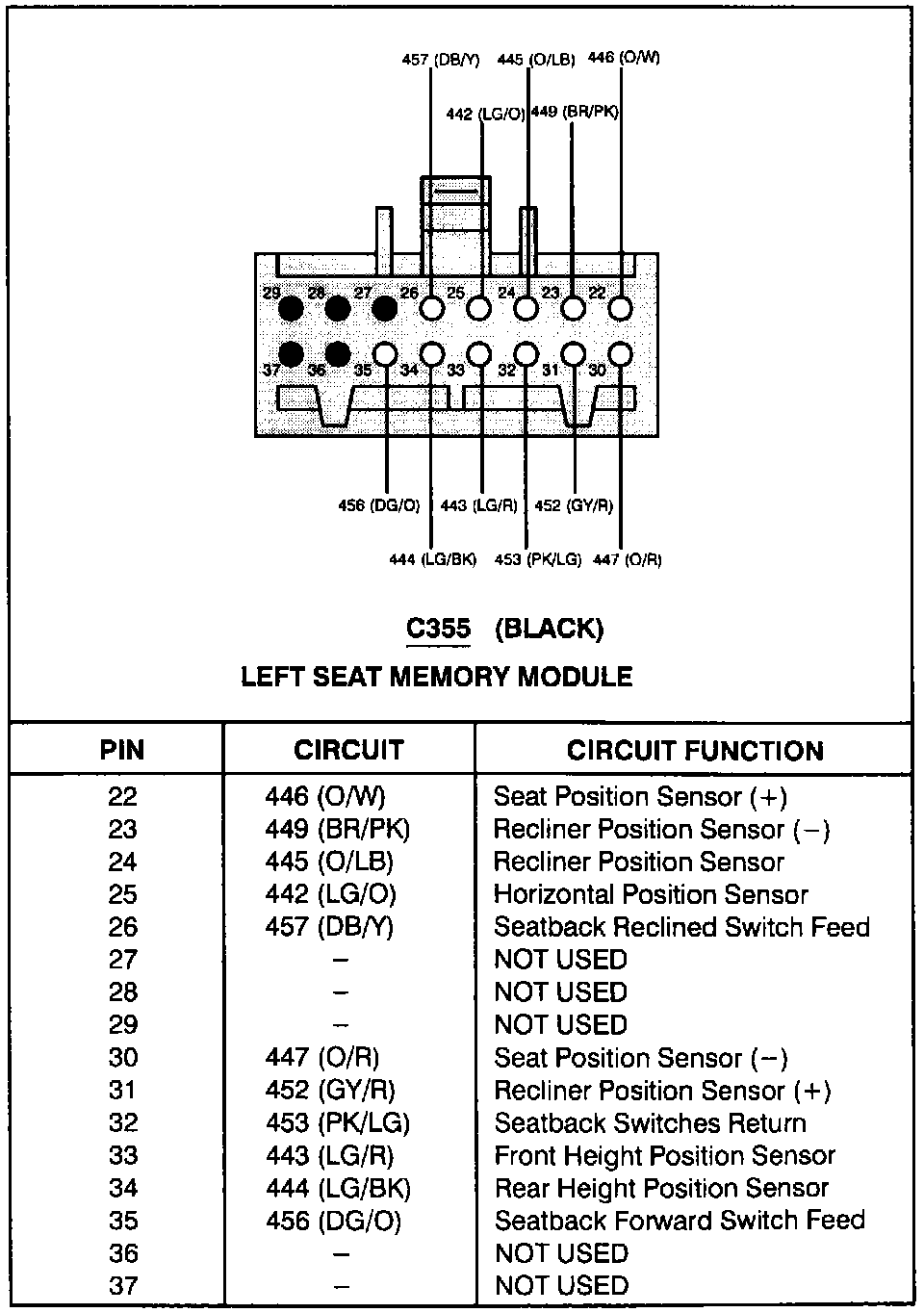

Left Seat Memory Module (C355):
