Home >> Lincoln >> 1996 >> Mark VIII V8-4.6L DOHC >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Module >> Locations

Keyless Entry Module: Locations

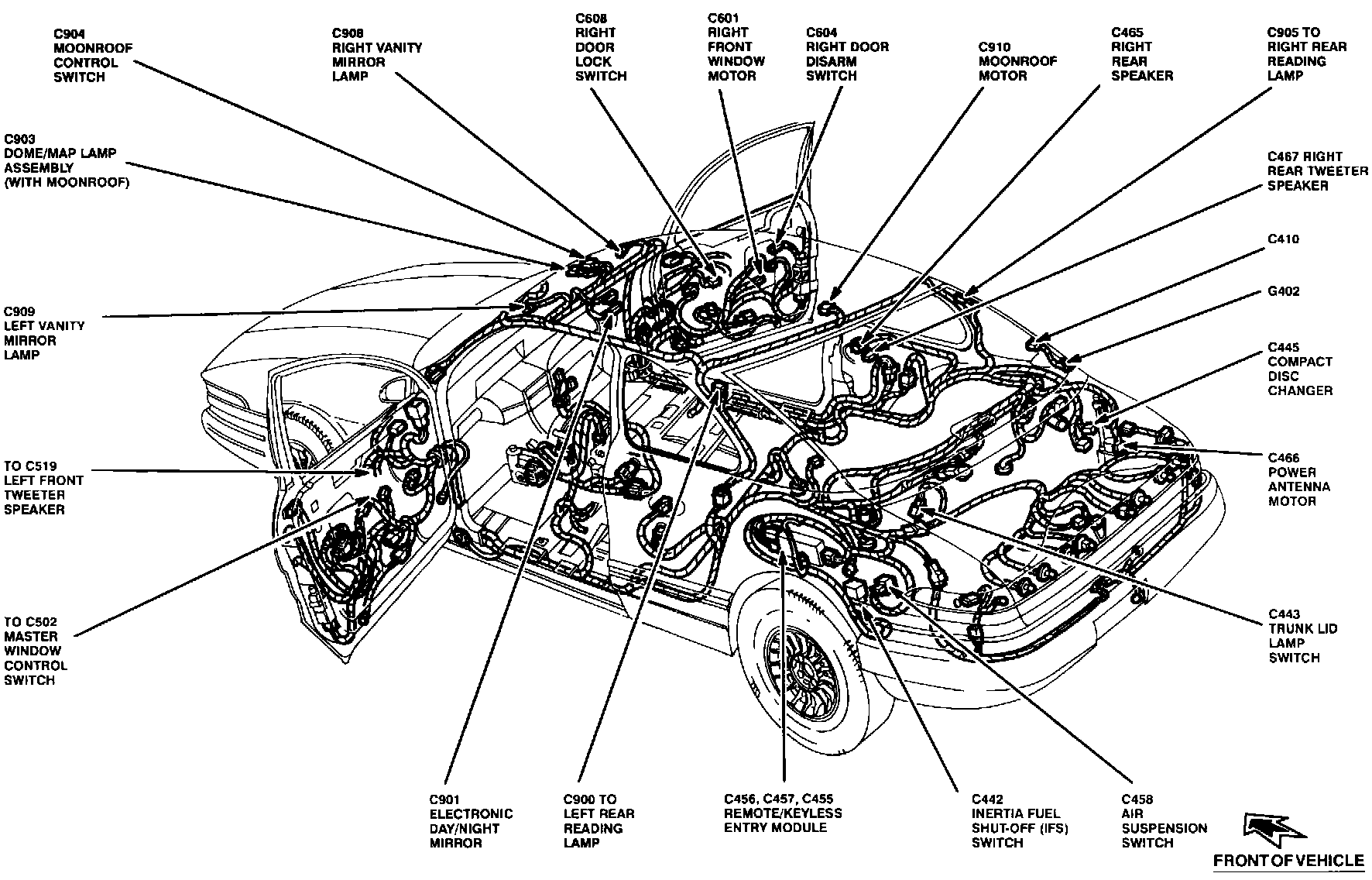

Full Body View:





The Remote/Keyless Entry Module is located at the LH side of the trunk, behind wheel well.
