Failed Module Look-Up Table
Failed Module Look-Up Table

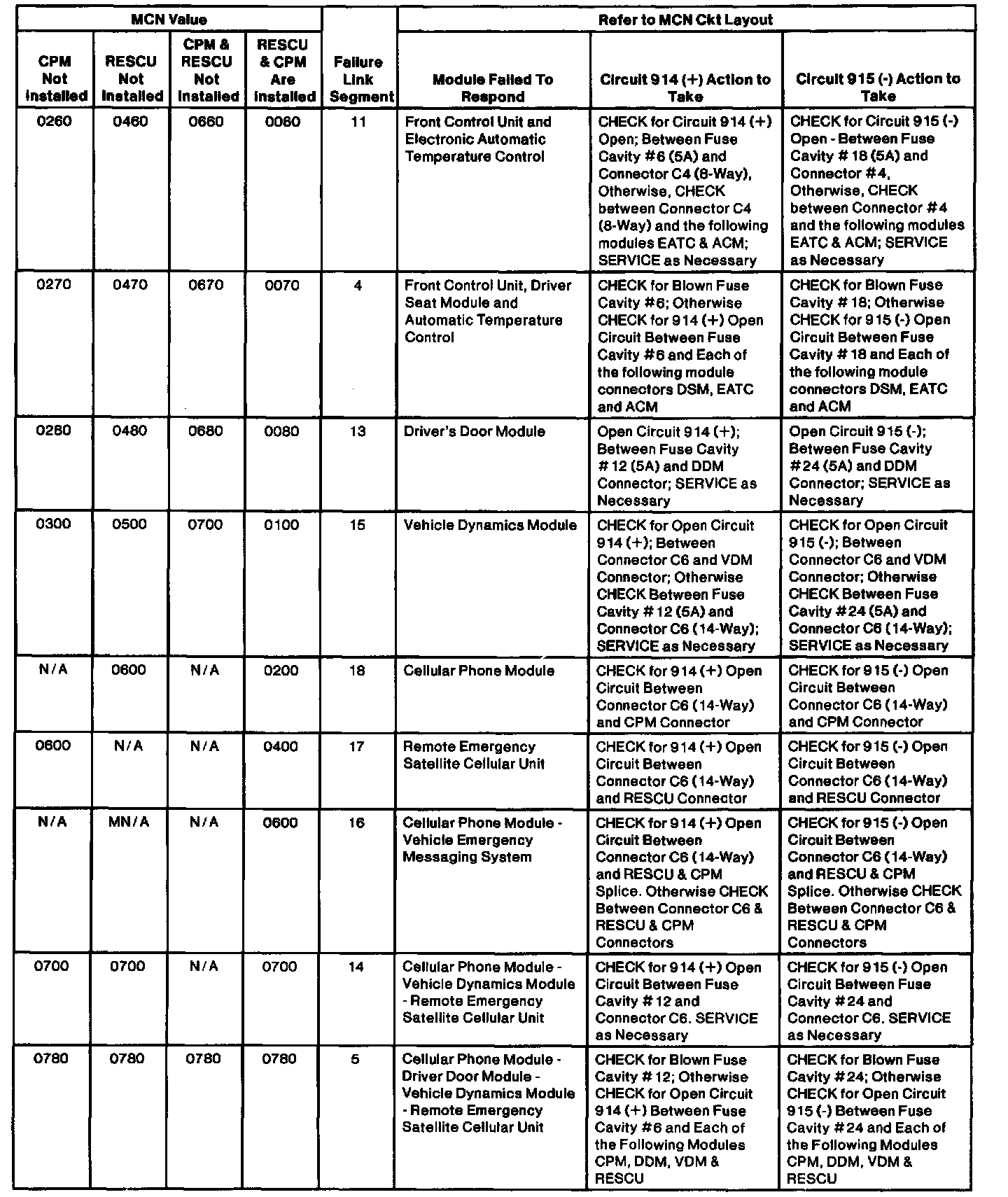

Failed Module Look-Up Table Part 1 Of 3:

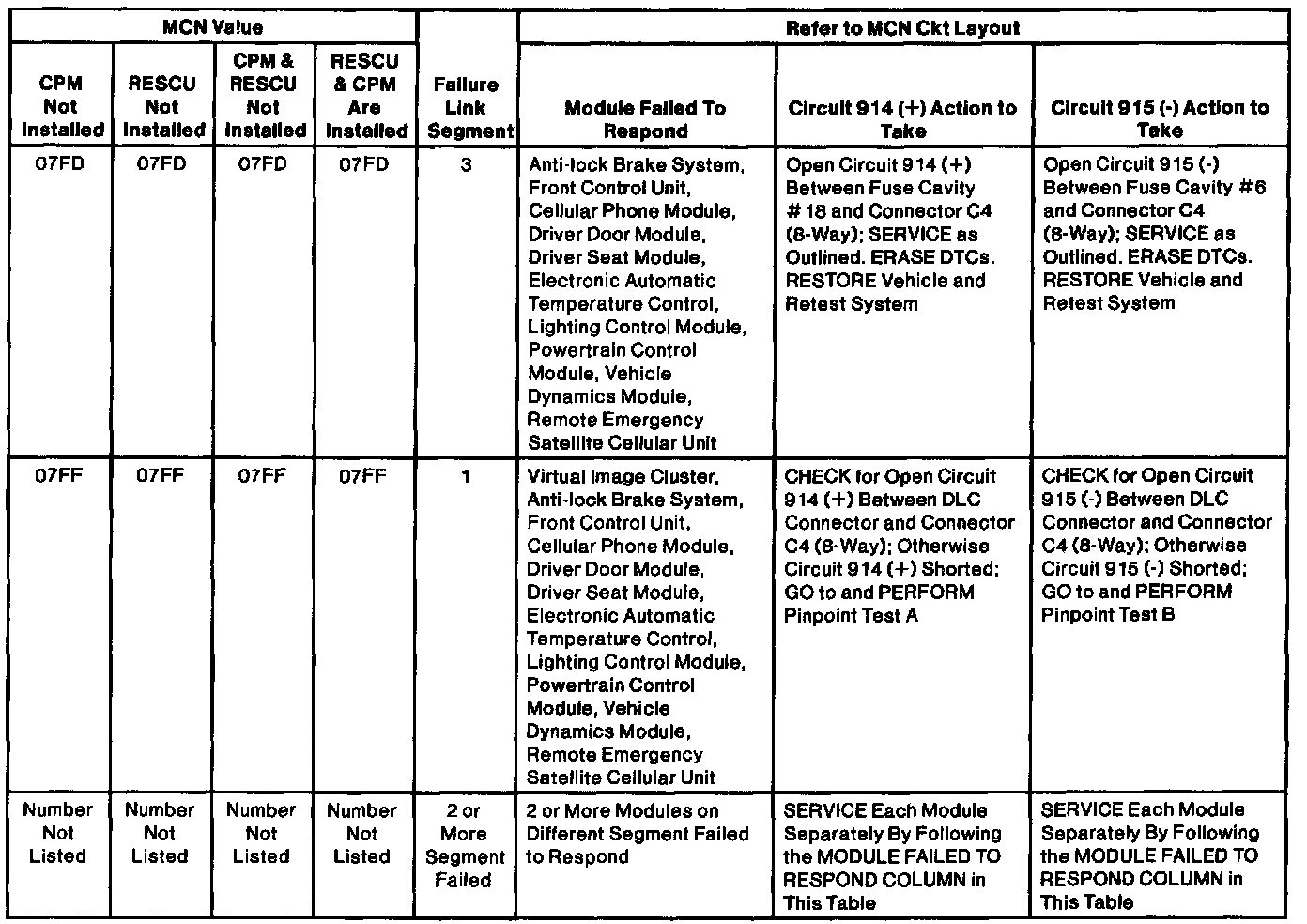

Failed Module Look-Up Table Part 2 Of 3:

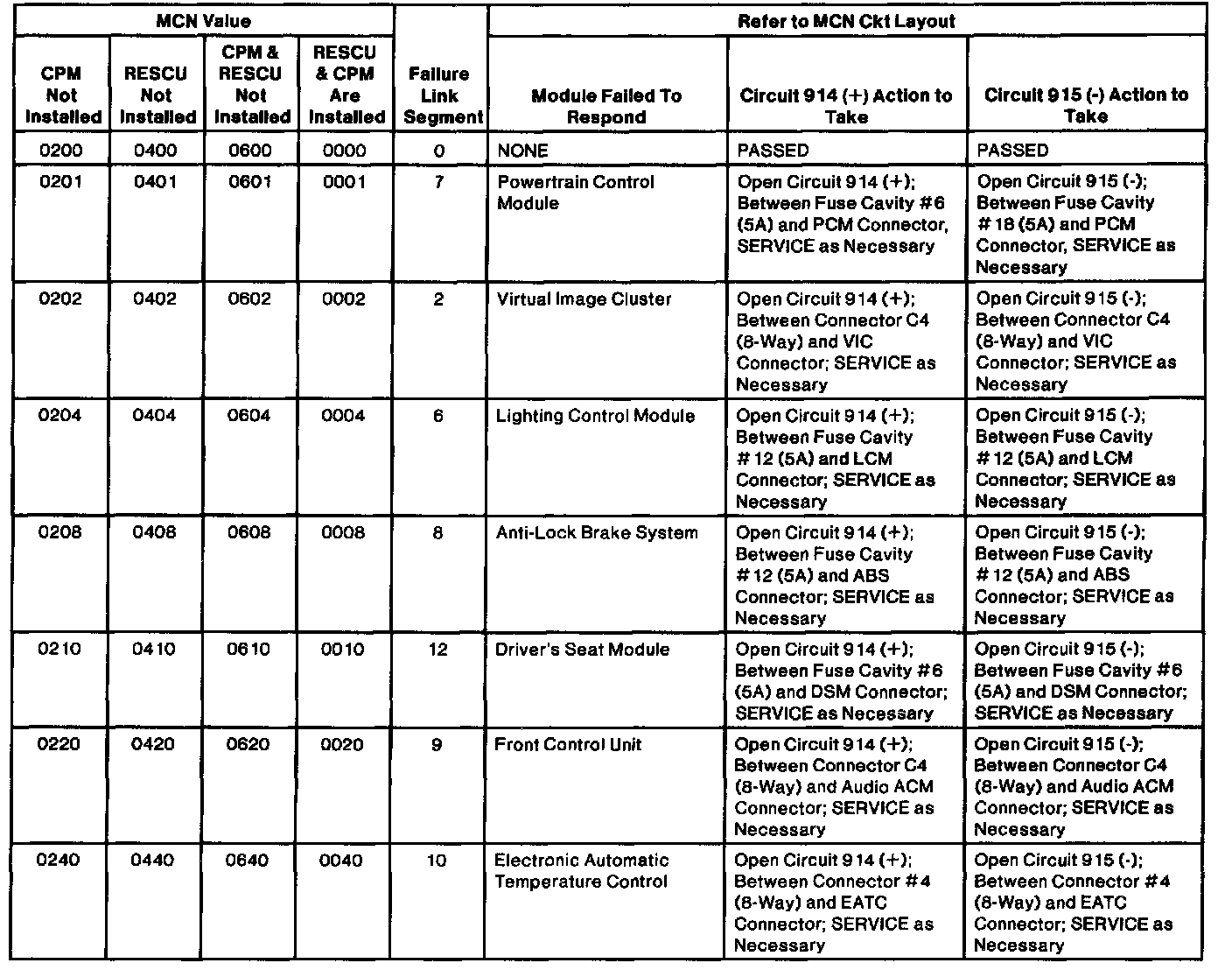

Failed Module Look-Up Table Part 3 Of 3:
