General Module

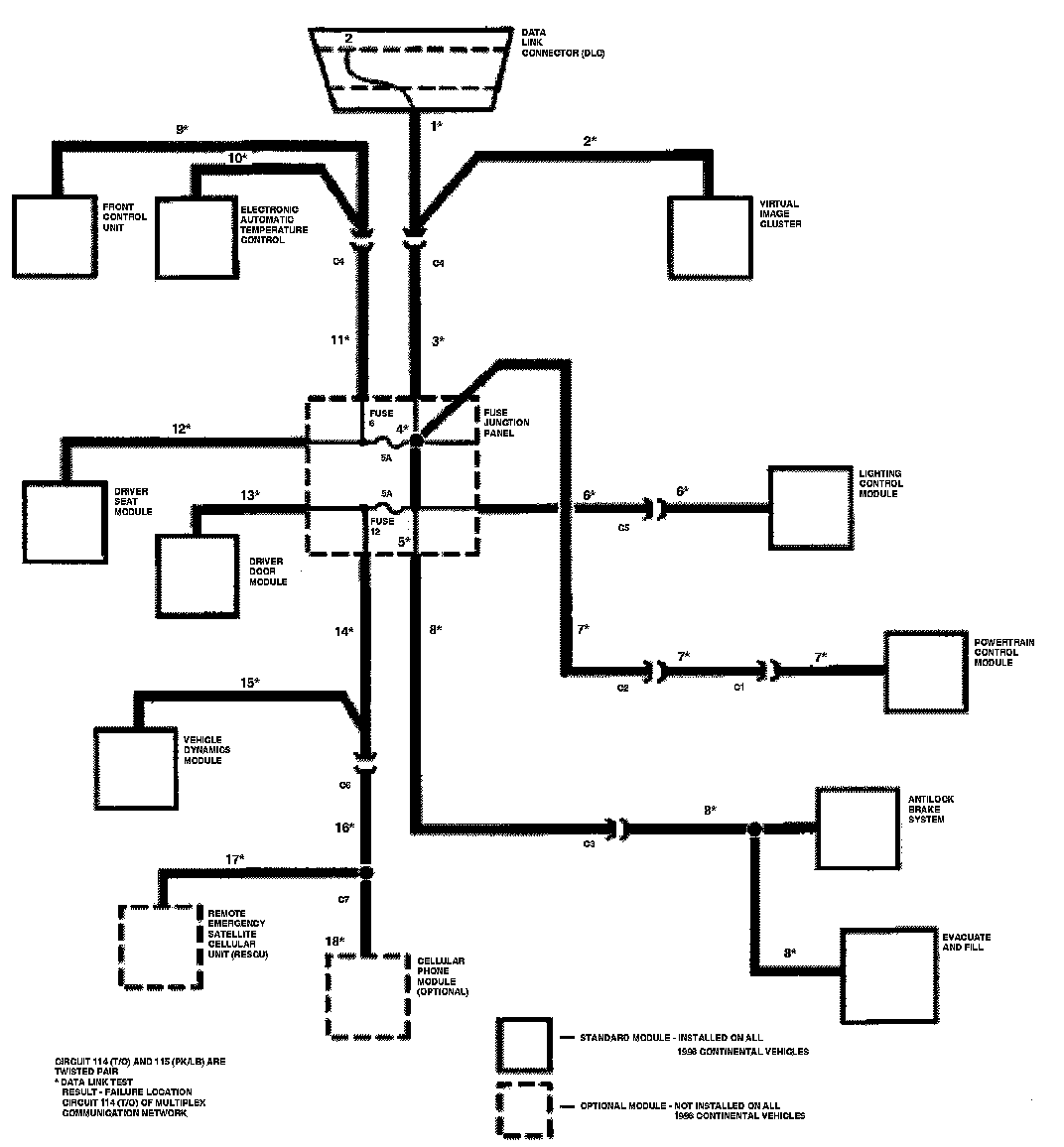

Multiplex Communication Network (MCN) Circuit 914 (Bus +):

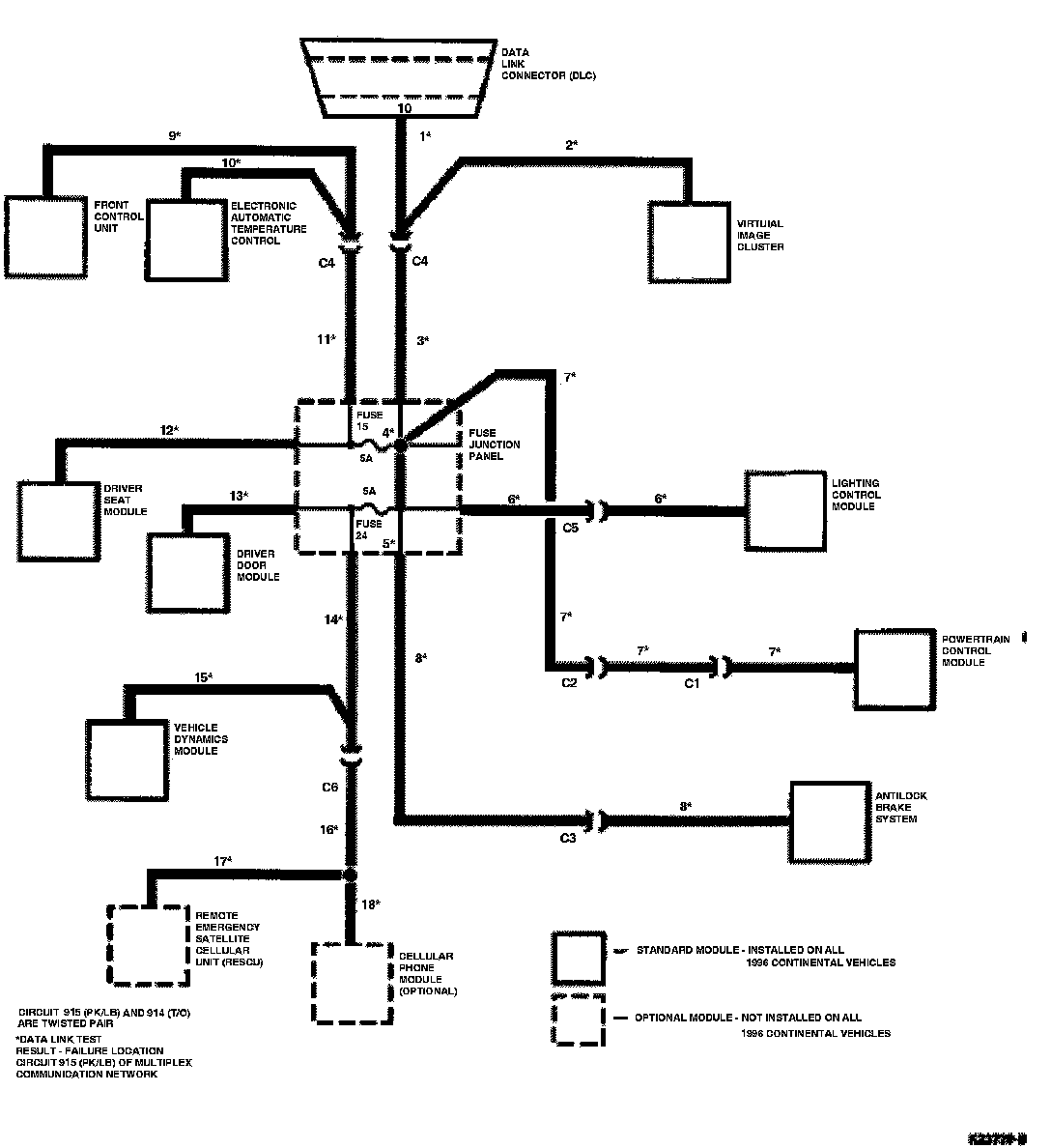

Multiplex Communication Network (MCN) Circuit 915 (Bus -):



Diagnostic Communication Network:
