XB - Variable Control Relay Module (VCRM)
>>
XB - Testing Schematic
XB - Testing Schematic
VCRM Diagram:

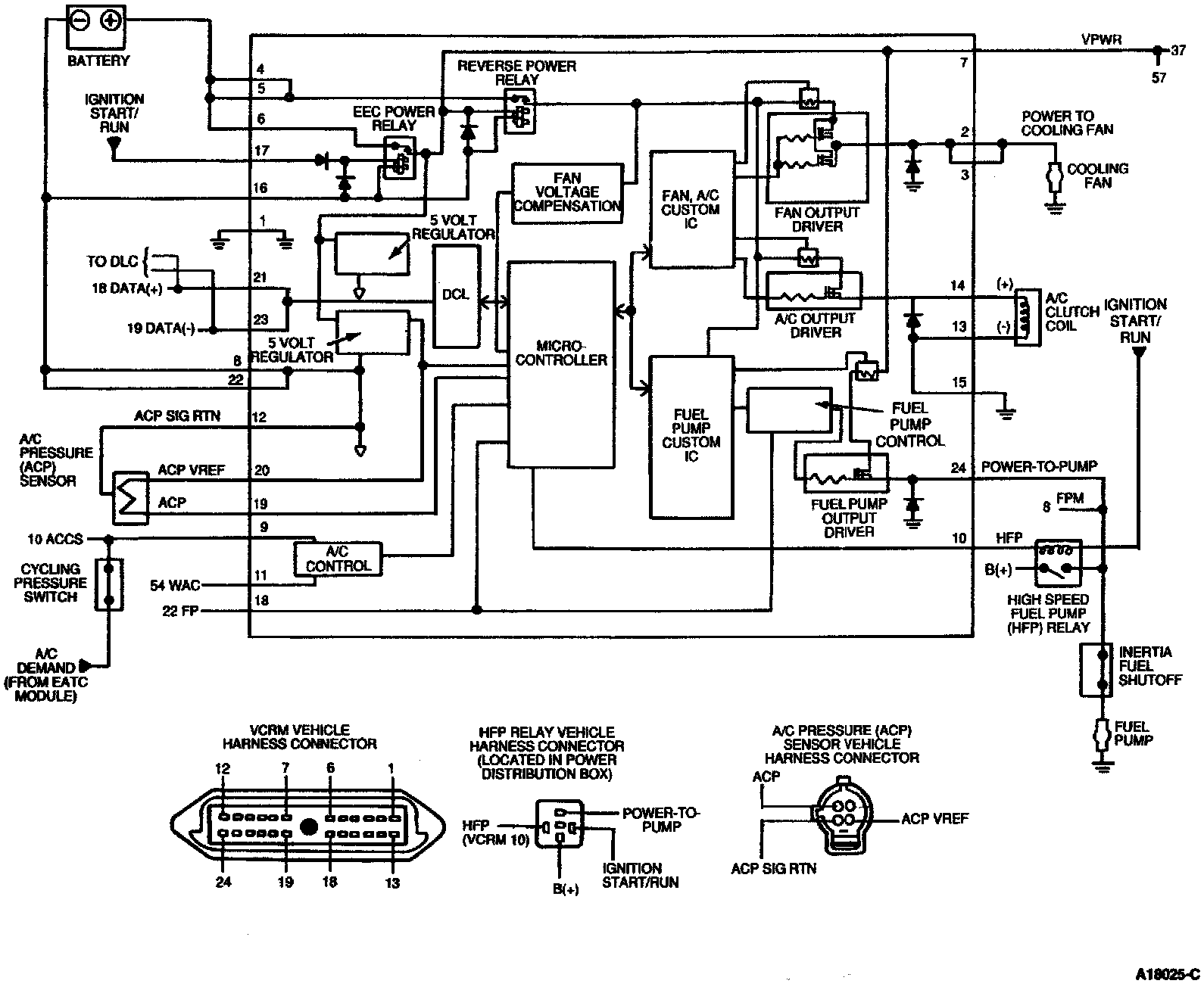

WIRING DIAGRAM

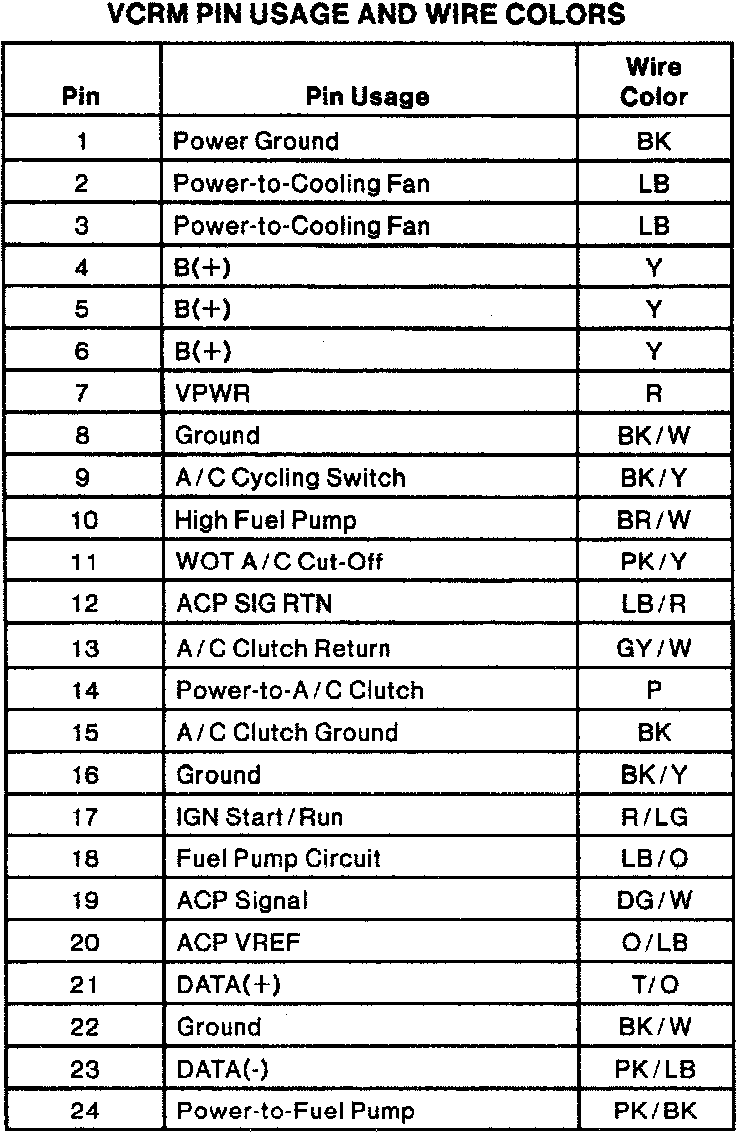

VCRM Pin Usage And Wire Colors.:
PIN USAGE AND WIRE COLORS.
