Lincoln
>>
1995
>>
Mark VIII V8-4.6L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Knock Sensor
>>
Locations
>>
Left
Left

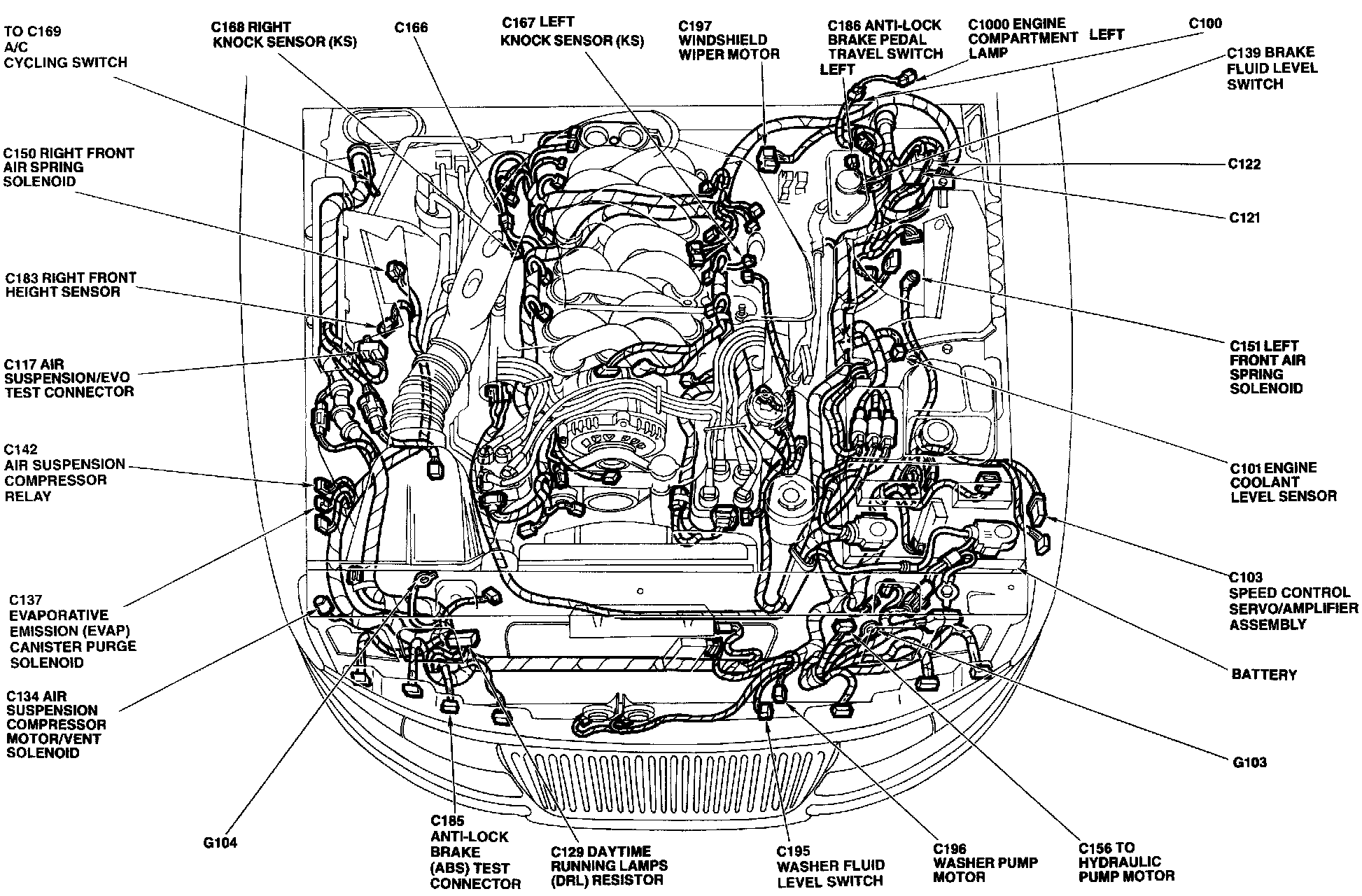

Engine View -Part 1 Of 4:
The Left Knock Sensor
(KS)
is located at the lower RH rear of engine compartment.
