Home >> Lincoln >> 1995 >> Mark VIII V8-4.6L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Integrated Control Relay Module >> Diagrams >> Electrical Diagrams

Electrical Diagrams

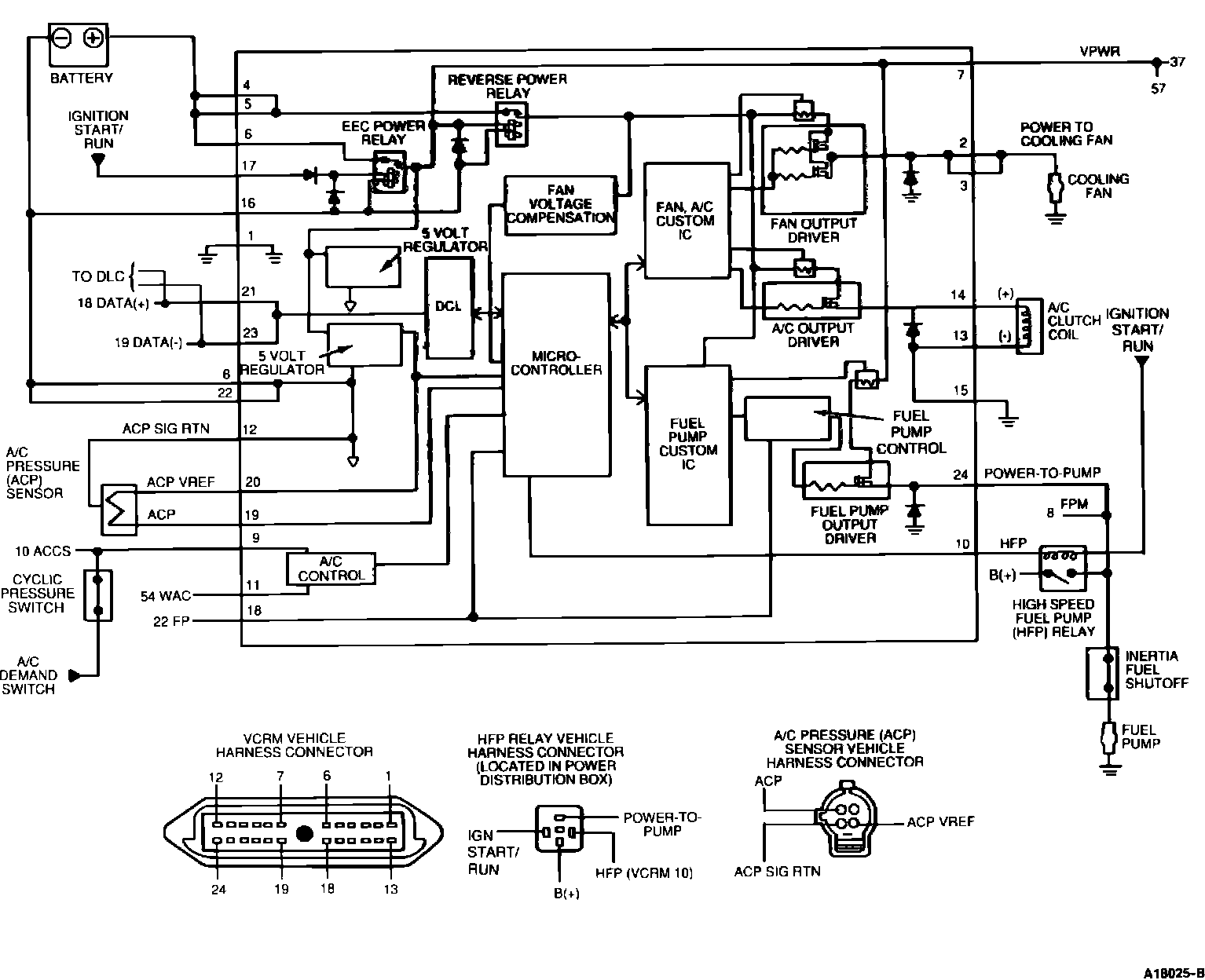

Variable Control Relay Module (VCRM) Schematic:



Variable Control Relay Module (VCRM) Pin Usage:
