Lincoln
>>
1995
>>
Mark VIII V8-4.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Control Module
>>
Right
Right

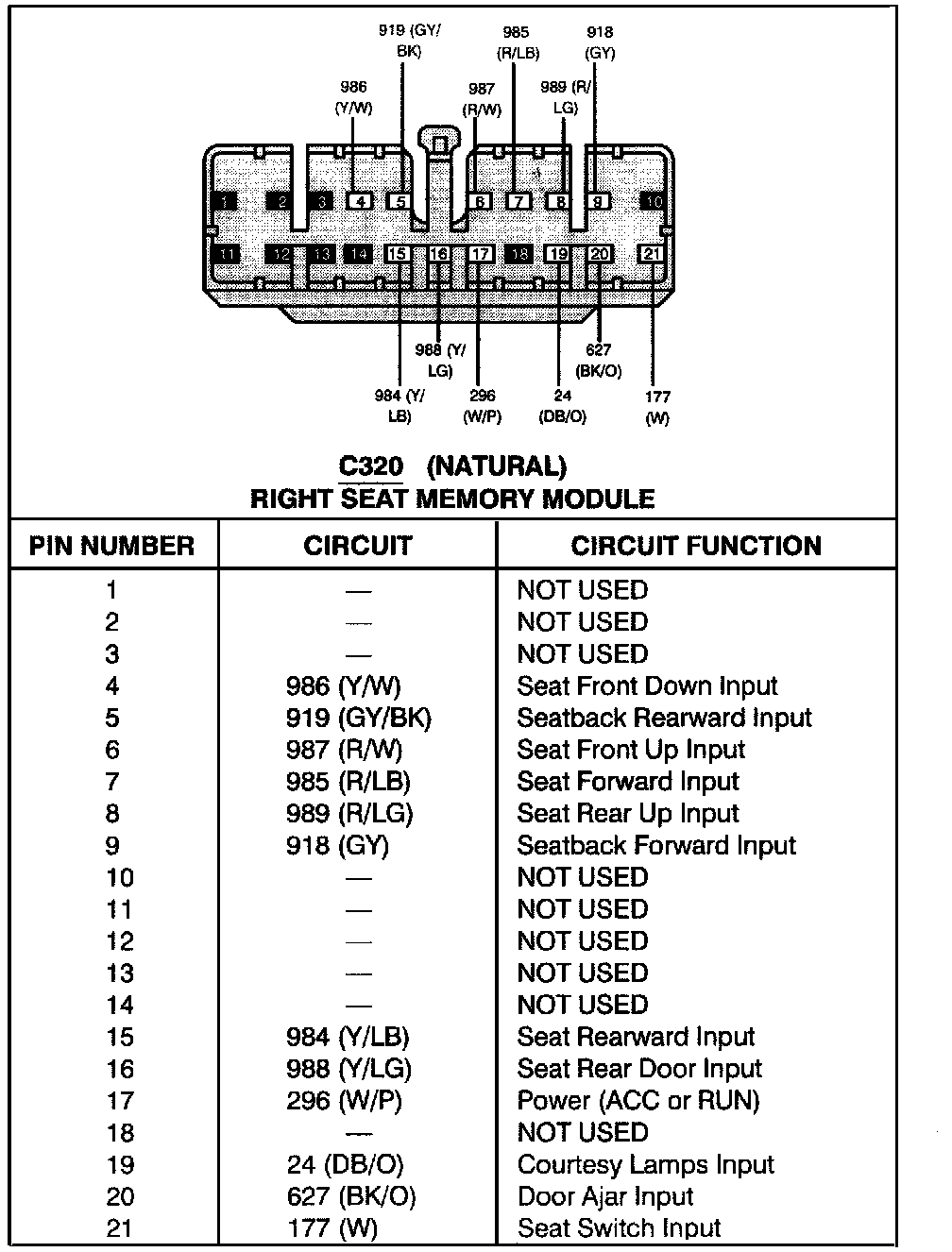

Right Seat Memory Module (C320):

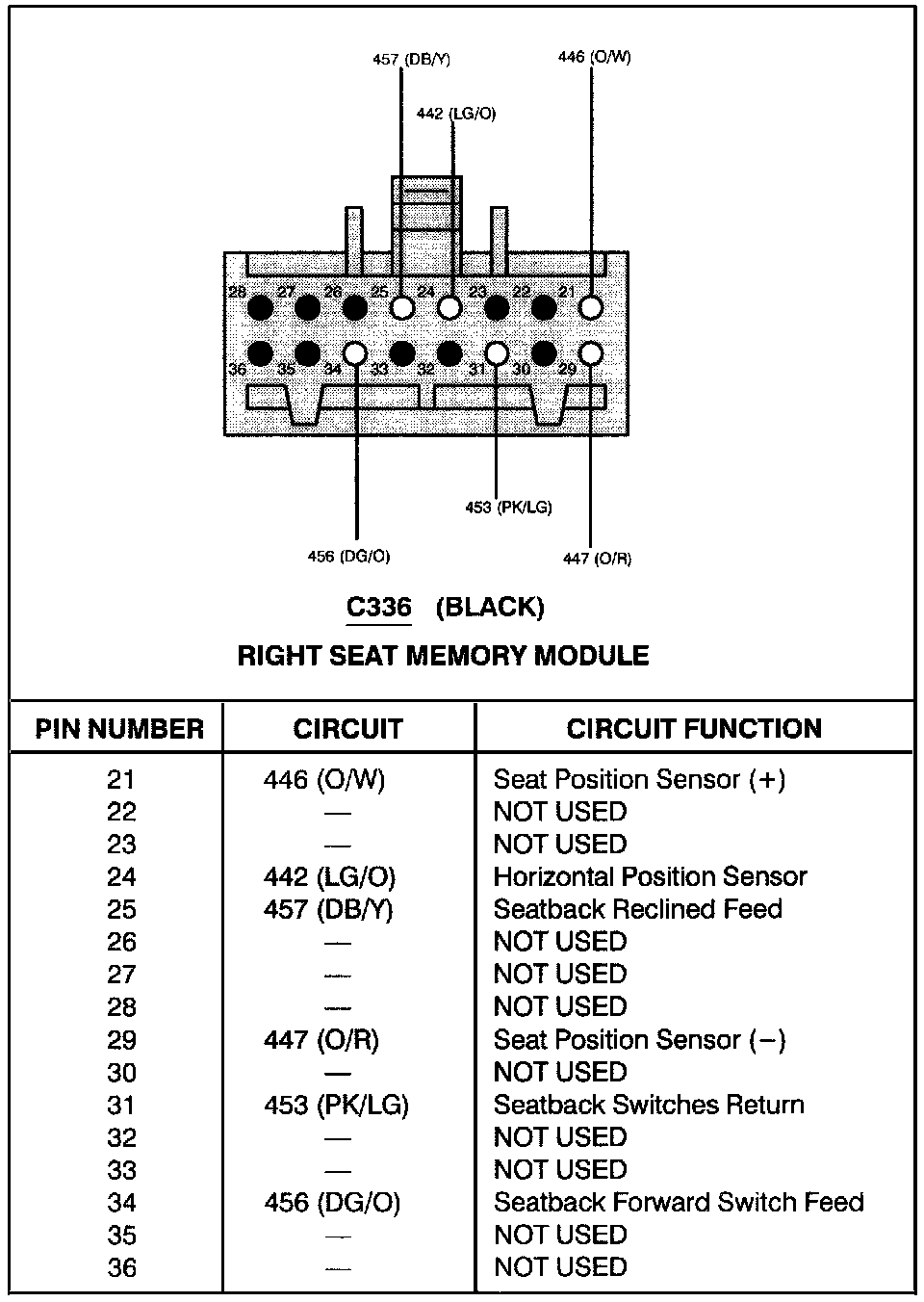

Right Seat Memory Module (C336):
Right Seat Memory Module (C357):
