Home >> Lincoln >> 1995 >> Continental V8-4.6L DOHC >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Control Module >> Locations

Wiper Control Module: Locations

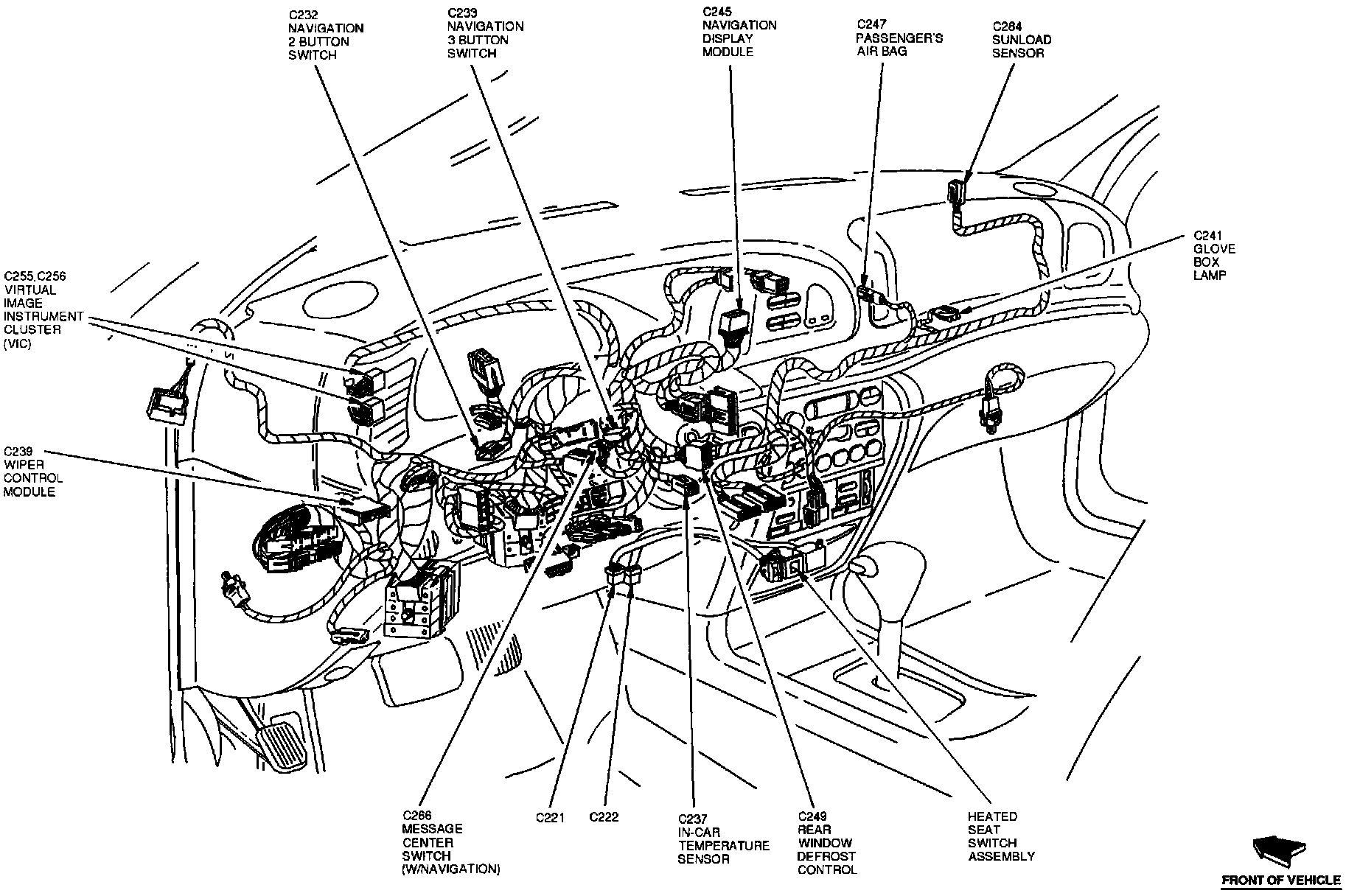

Behind Instrument Panel View:





The Wiper Control Module is located behind the lower left side of the instrument panel.
