Home >> Lincoln >> 1995 >> Continental V8-4.6L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Suspension Control Module

Suspension Control Module

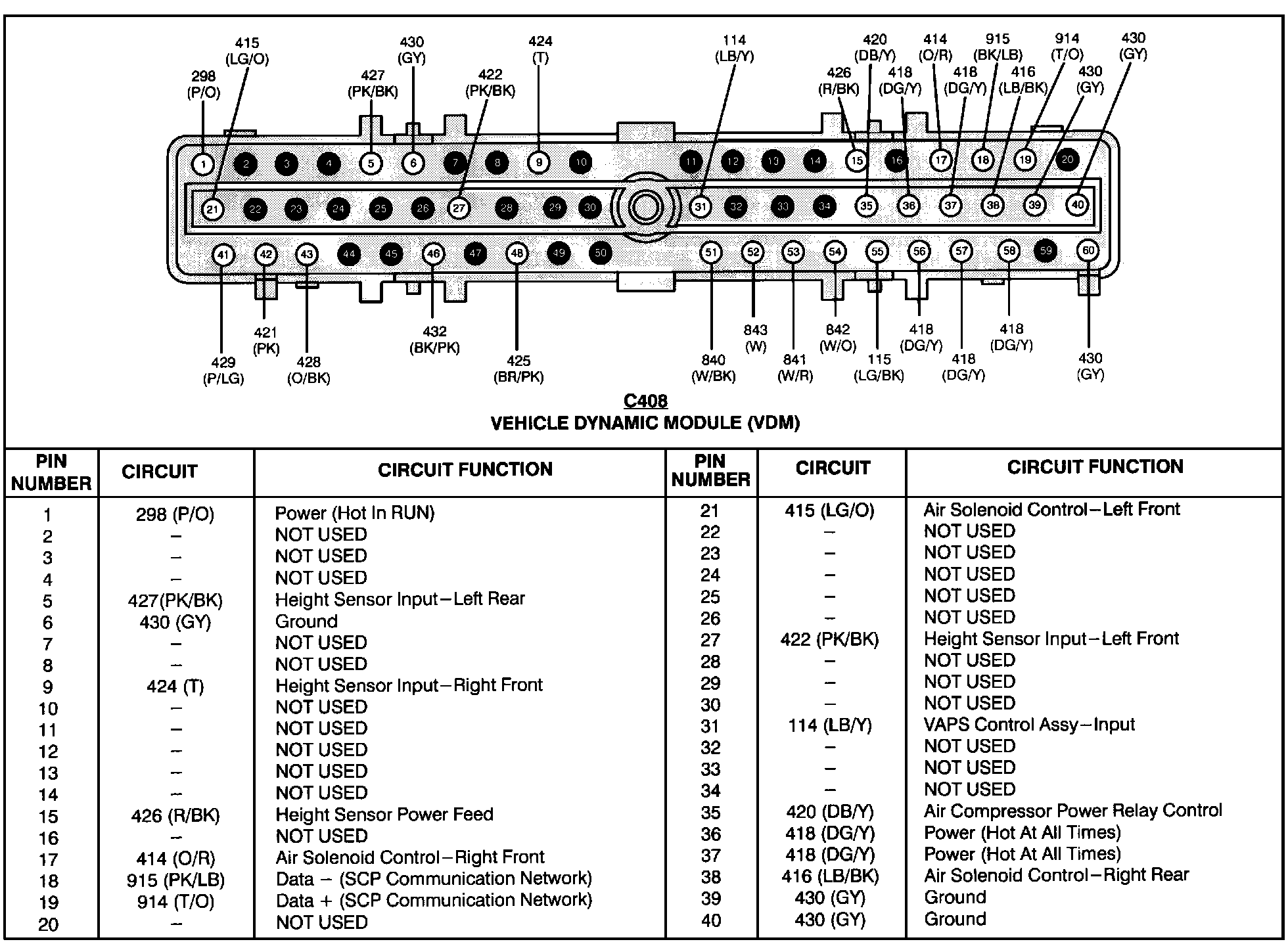

Vehicle Dynamic Module (C408) (Part 1 Of 2):

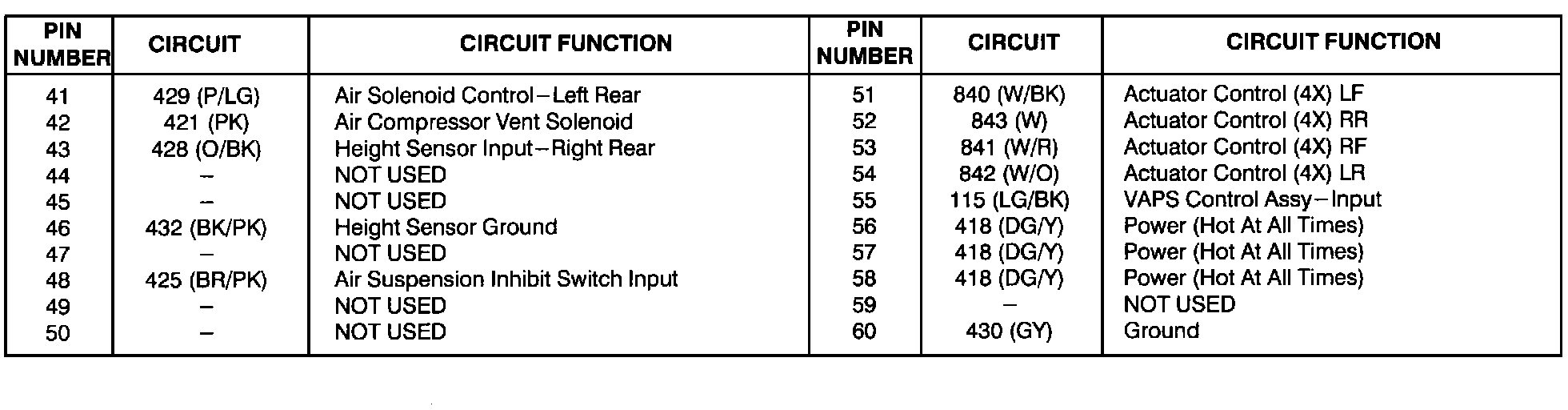

Vehicle Dynamic Module (Part 2 Of 2):
