FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Lincoln
>>
1995
>>
Continental V8-4.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Locks
>>
Power Door Lock Control Module
Power Door Lock Control Module

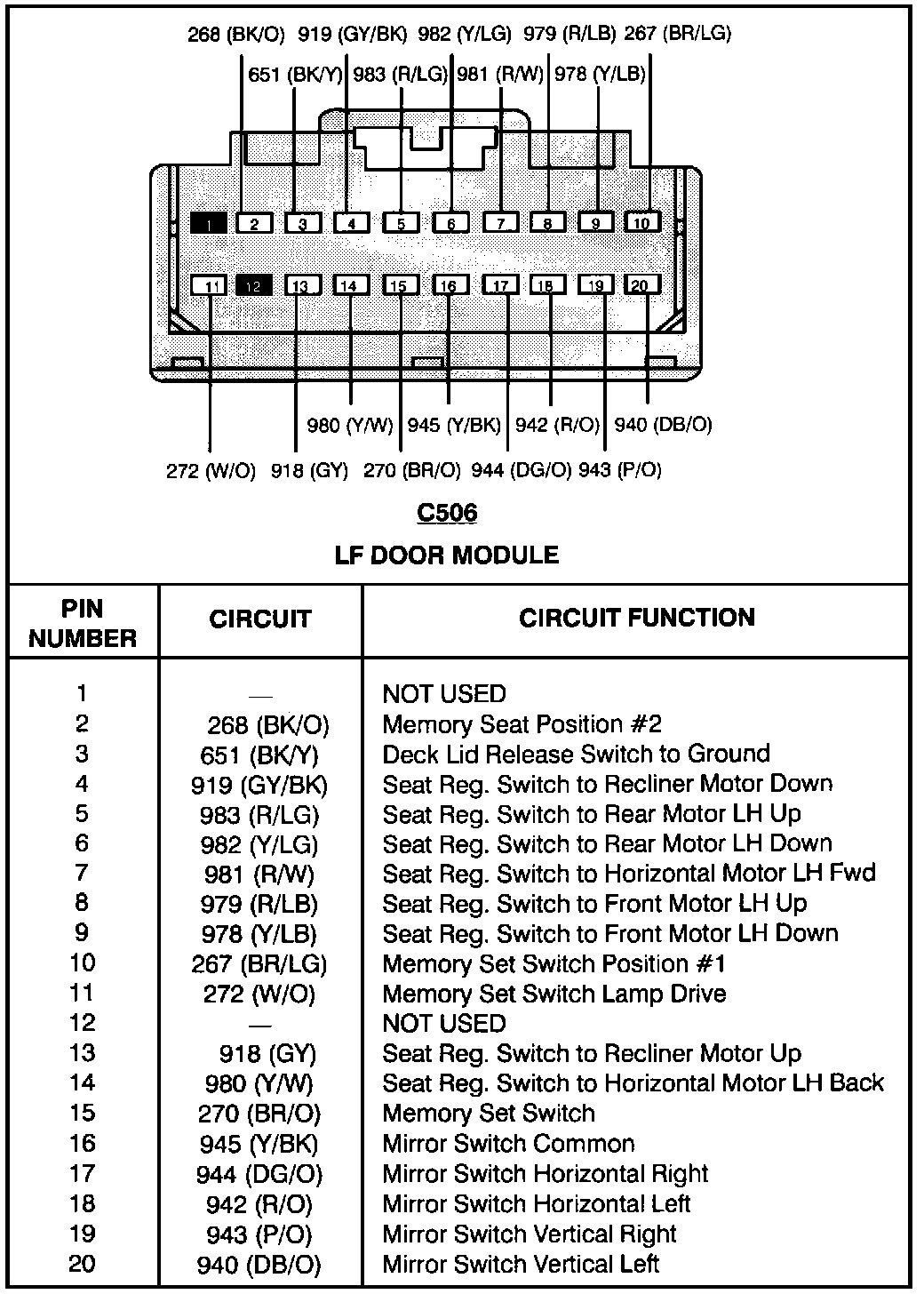

LF Door Module (C506):

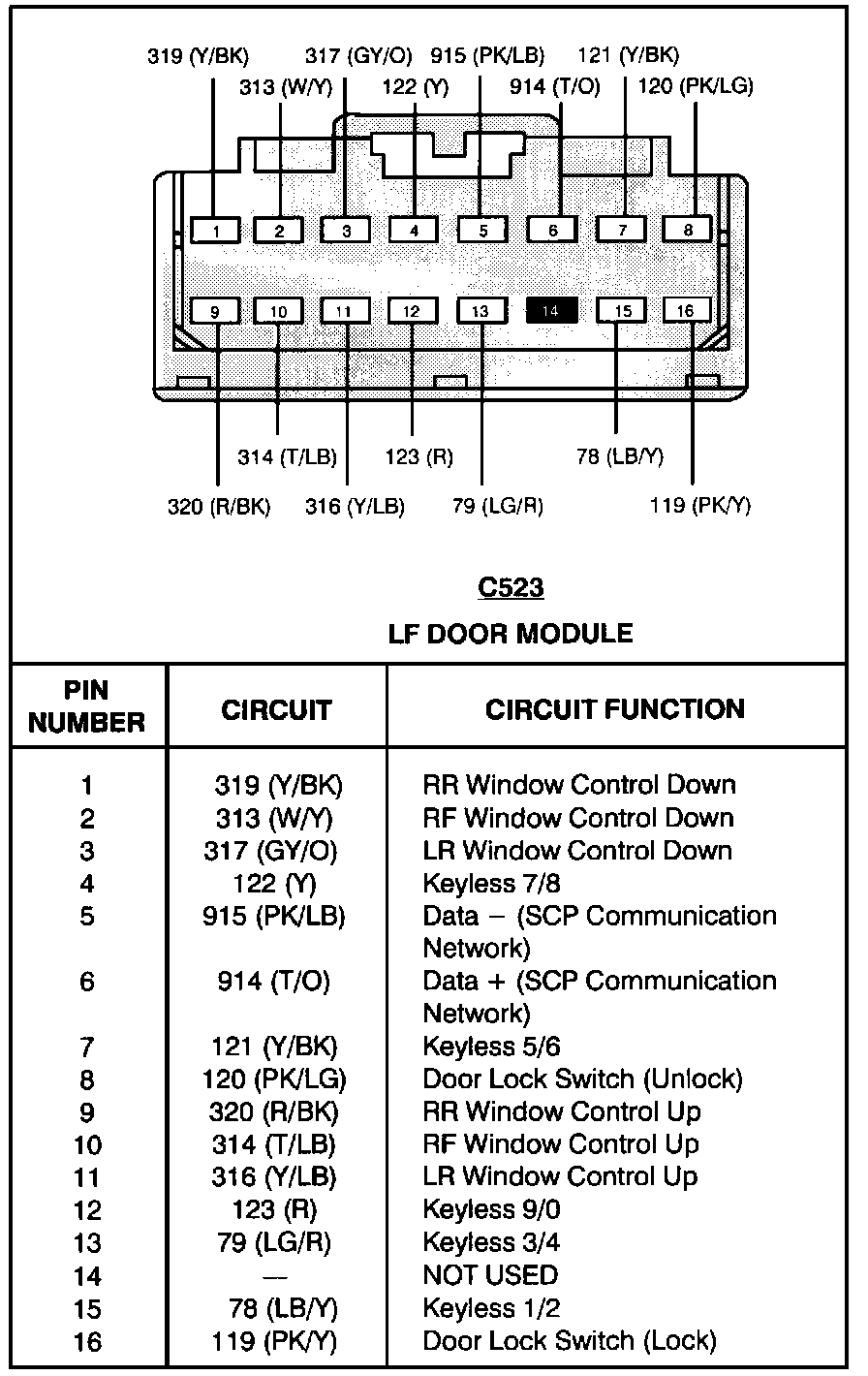

LF Door Module (C523):

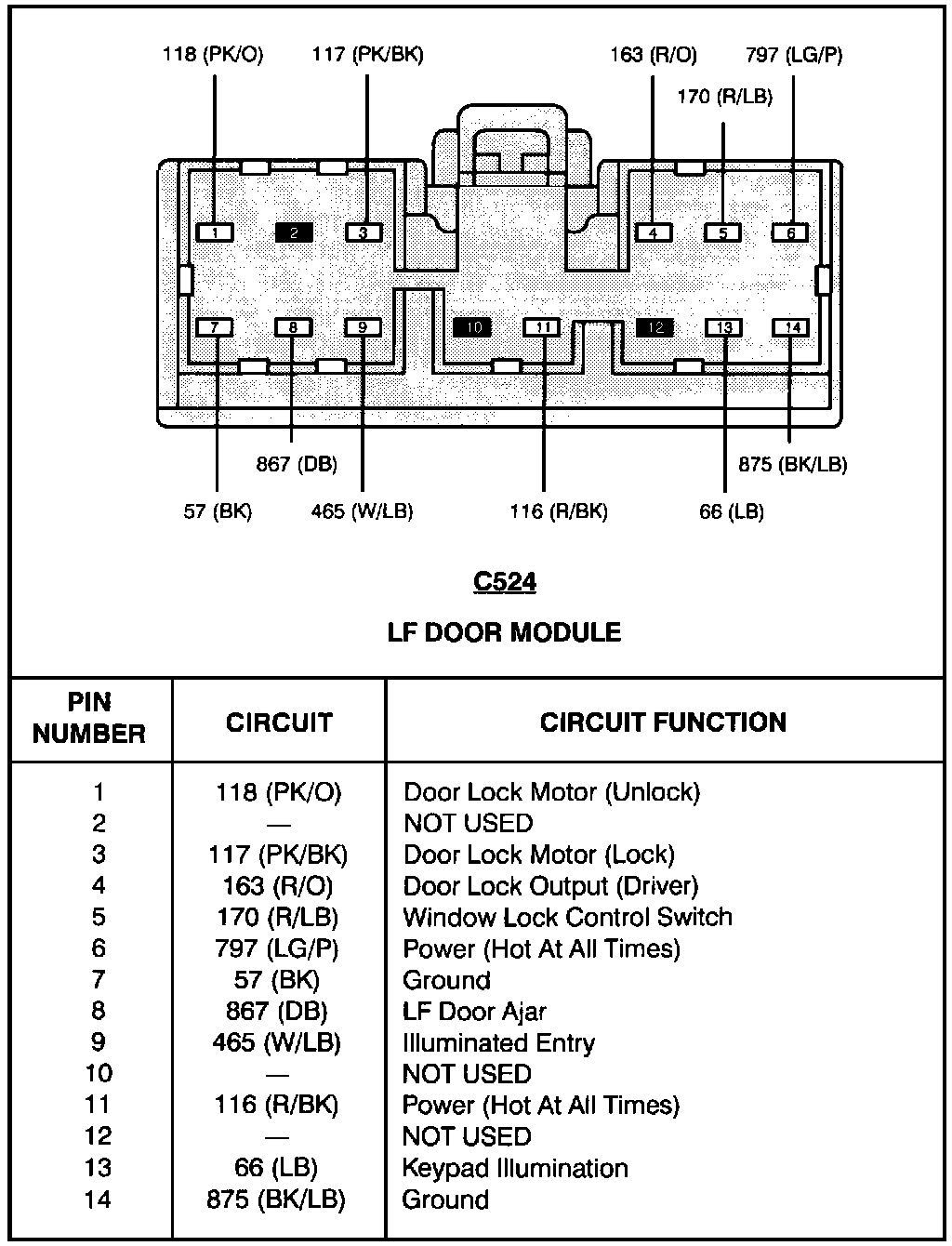

LF Door Module (C524):
LF Door Module (C522):
