Home >> Lincoln >> 1995 >> Continental V8-4.6L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Navigation Module >> Navigation Display Module

Navigation Display Module

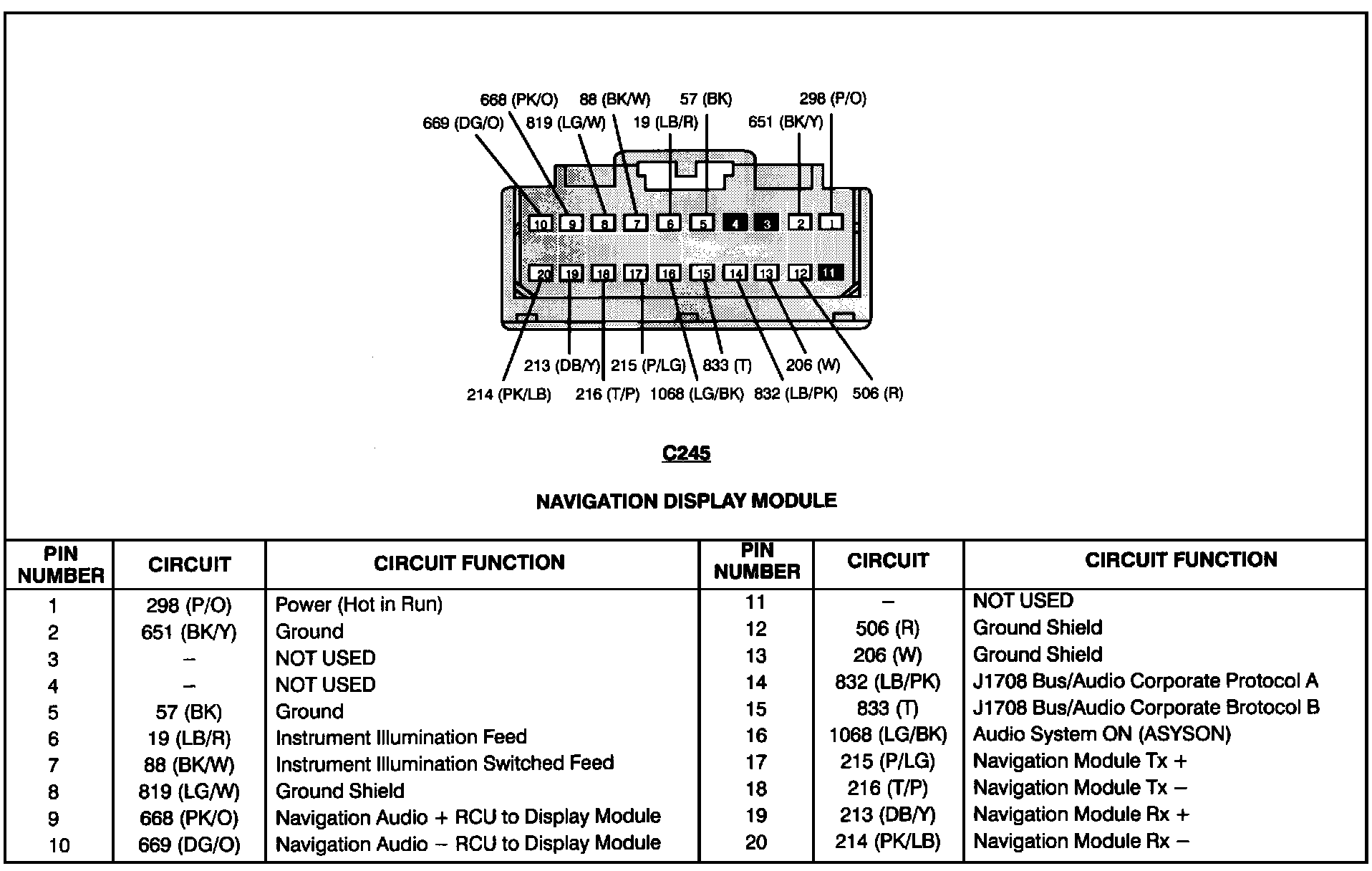

Navigation Disply Module (C245):
