Lighting Control Module (orig)

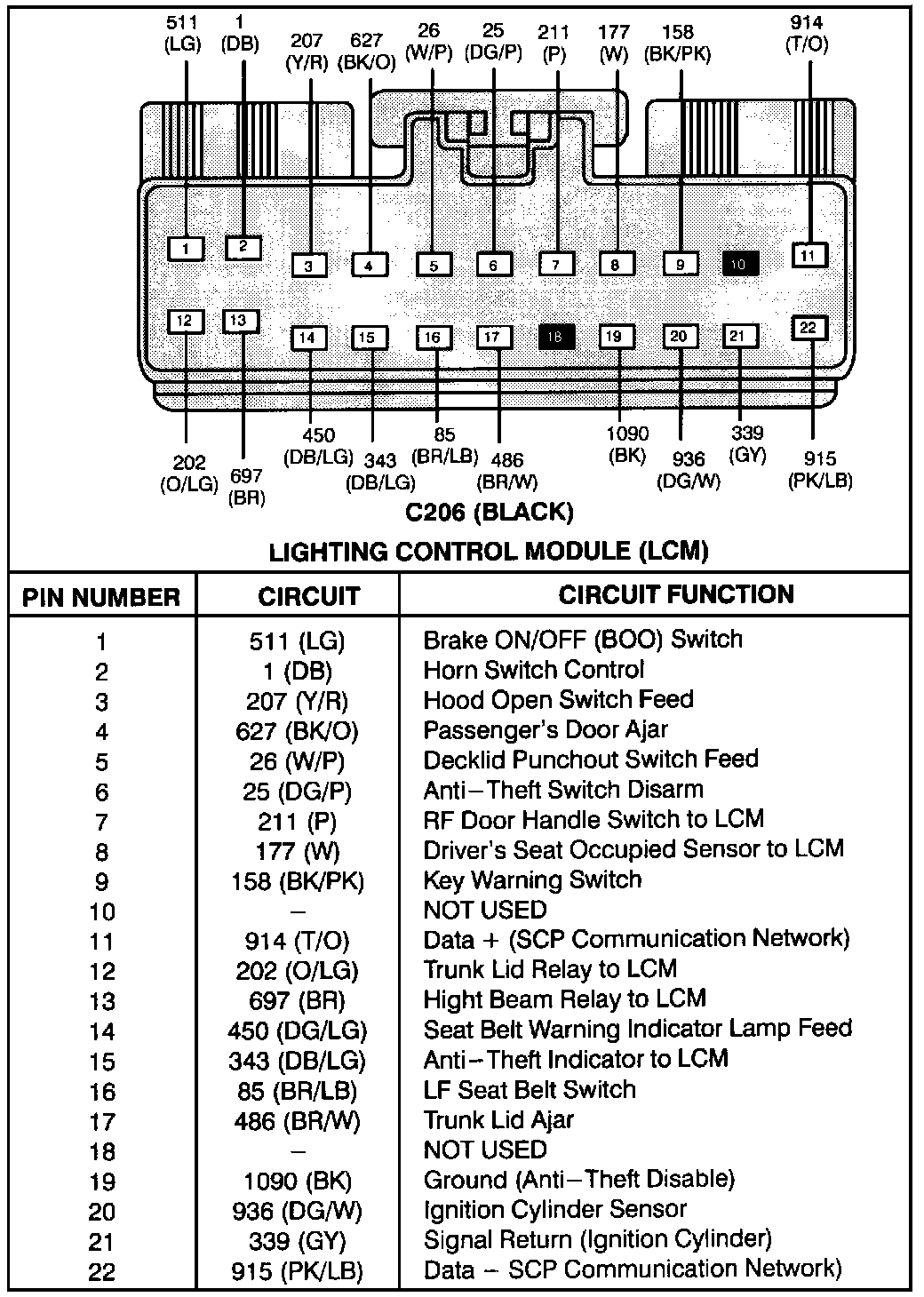

Lighting Control Module (C206):

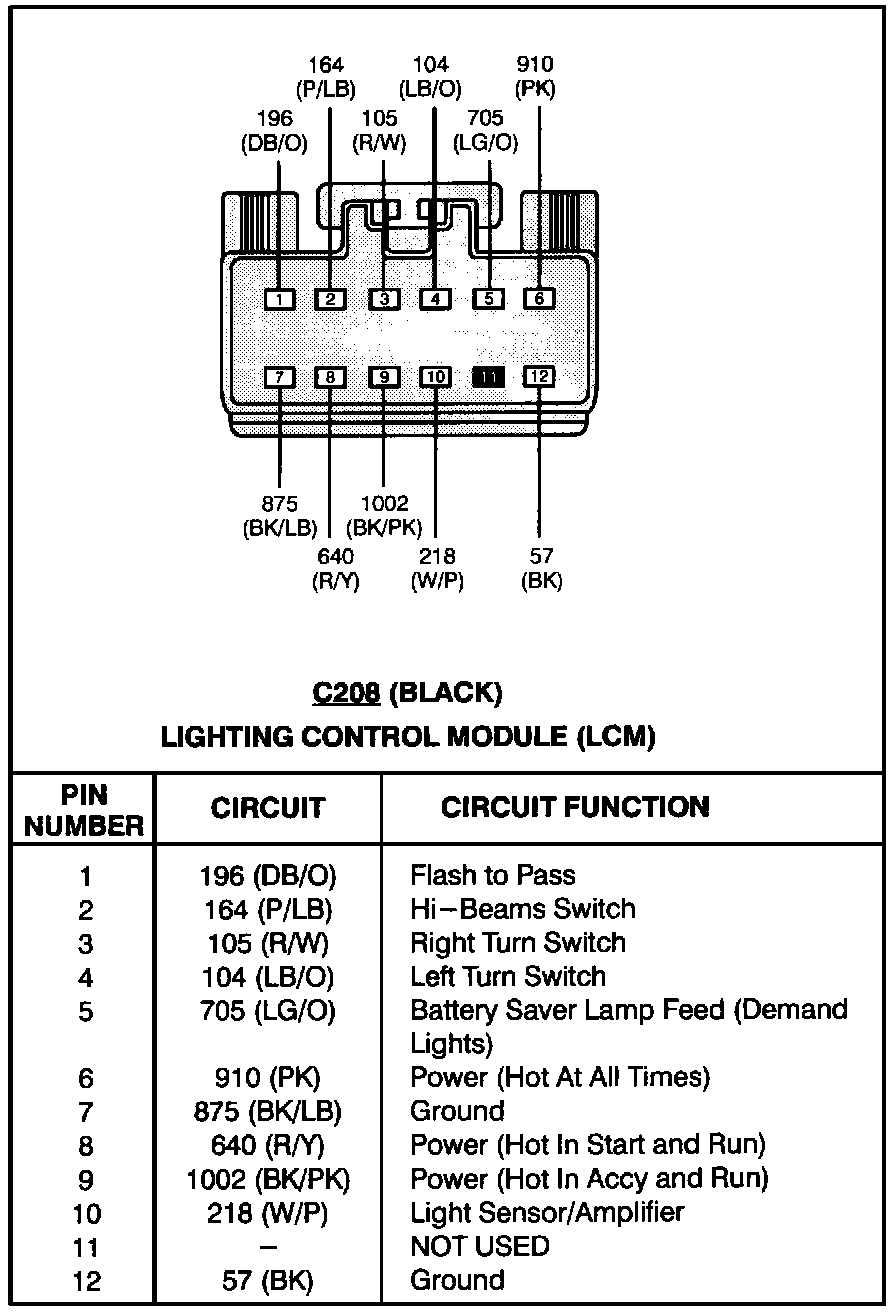

Lighting Control Module (C208):

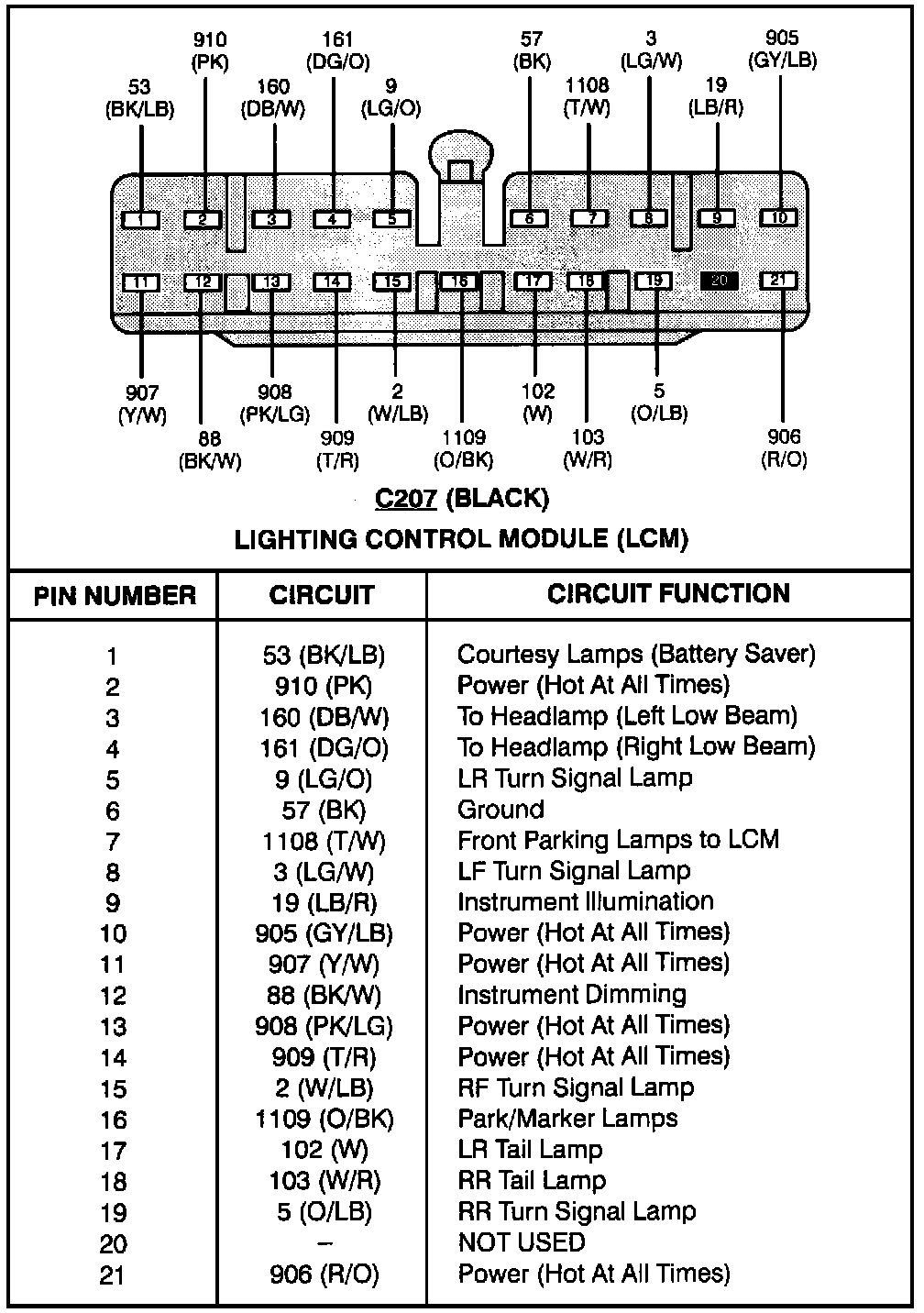

Lighting Control Module (C207):
