Home >> Lincoln >> 1994 >> Town Car V8-281 4.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views

Connector Views

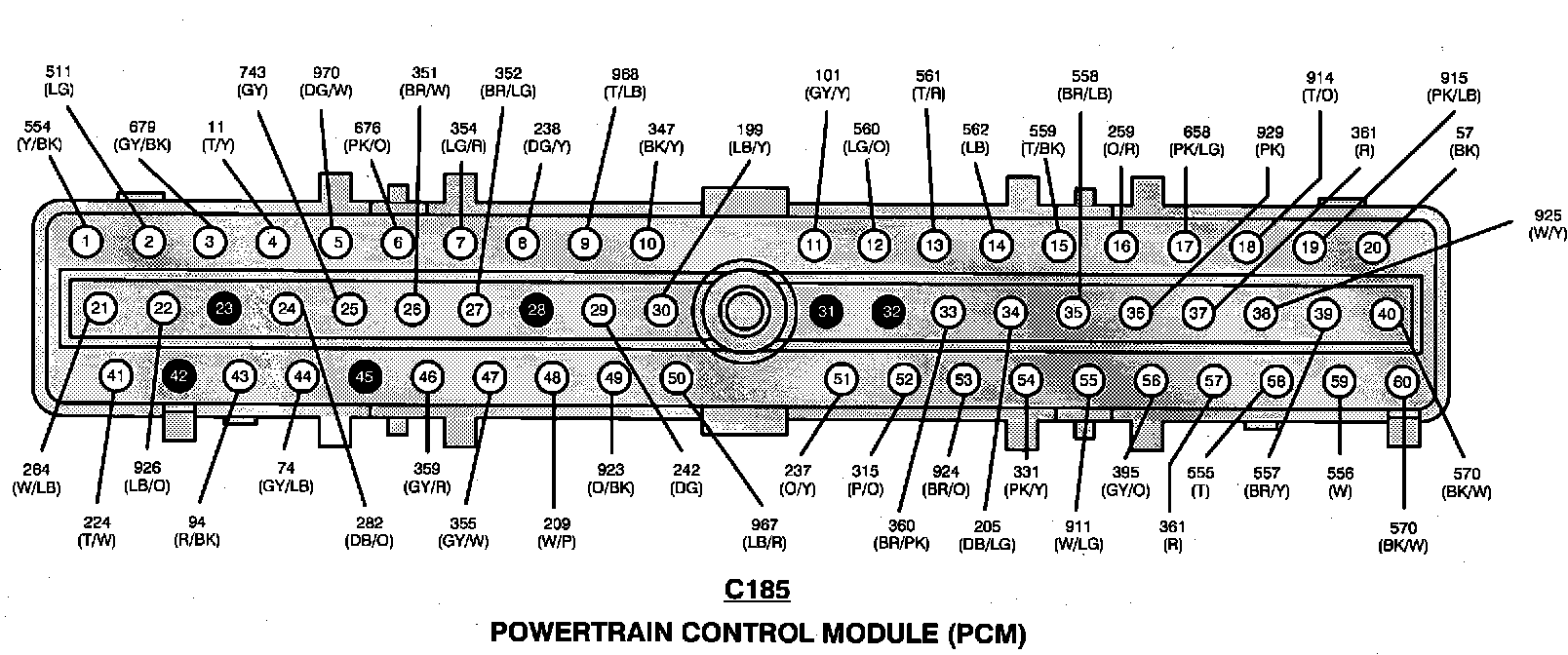

Powertrain Control Module (PCM):

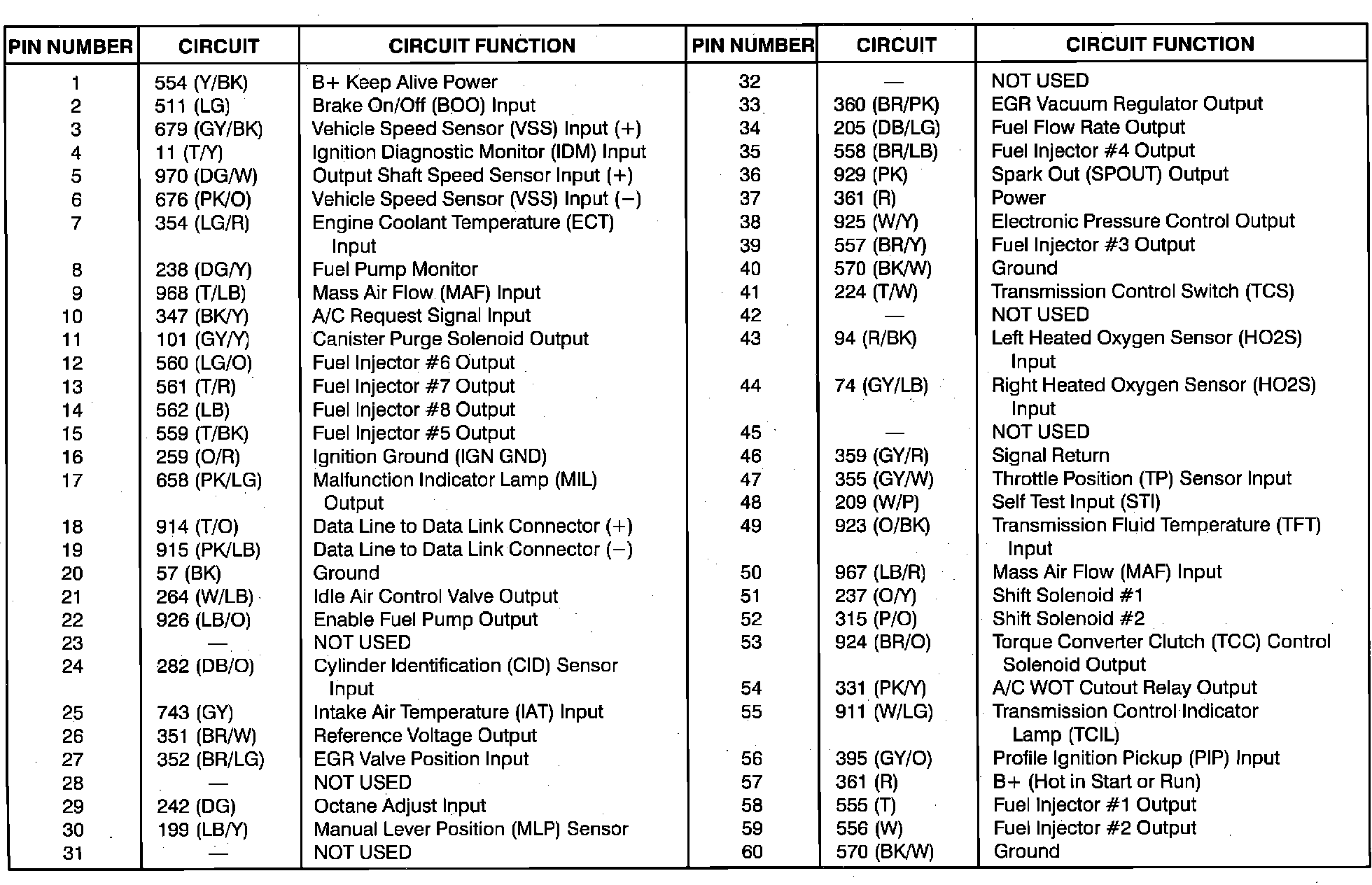

Pinout Chart For Powertrain Control Module (PCM):
