Home >> Lincoln >> 1994 >> Mark VIII V8-4.6L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Suspension Control Module >> Electronic Level Control (ELC) Module

Electronic Level Control (ELC) Module

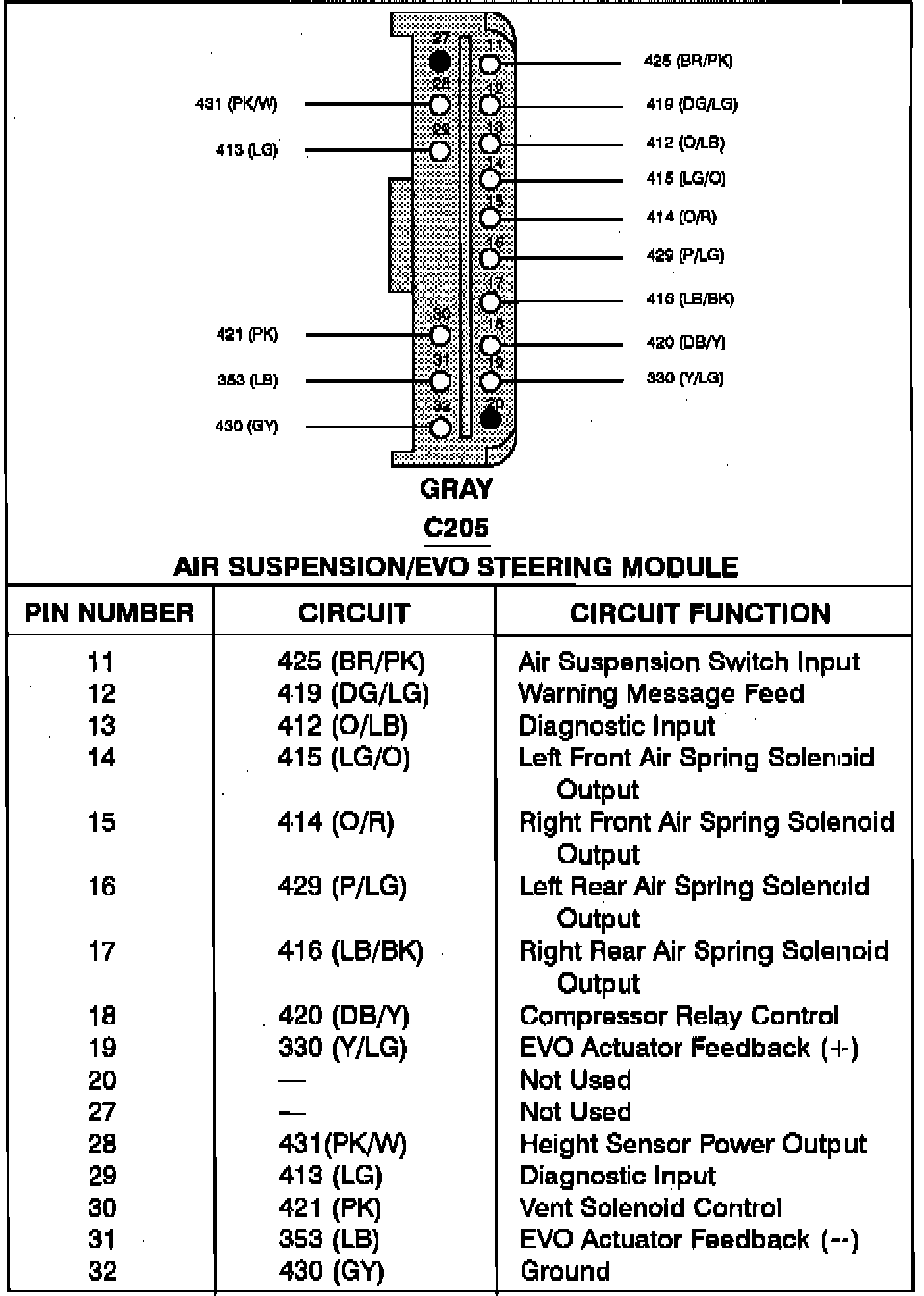

Air Suspension/EVO Steering Module:

Air Suspension/EVO Steering Module:
