Transmission Position Sensor/Switch: Testing and Inspection



Manual Lever Position (MLP) Sensor

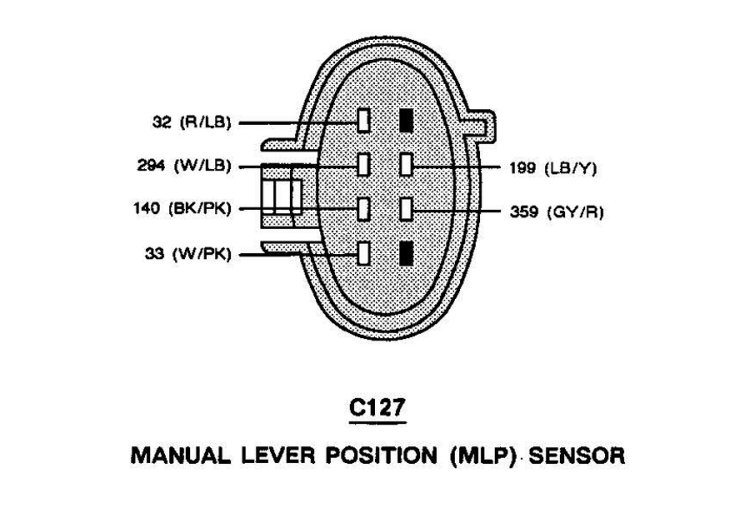

C127-MLP Sensor:

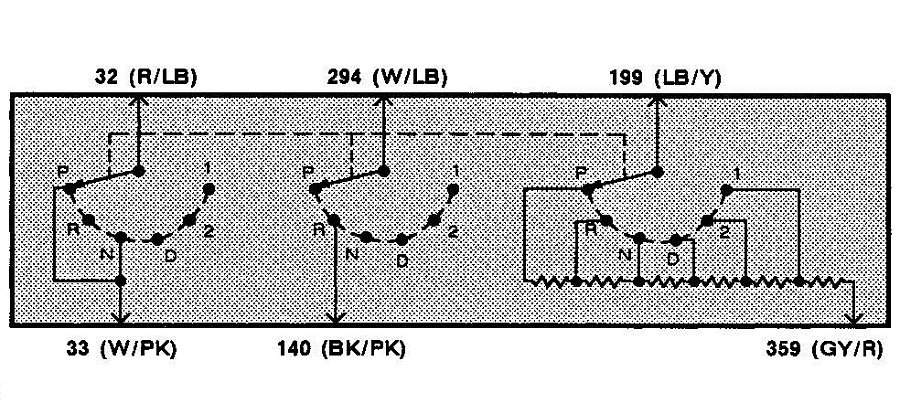

Schematics:

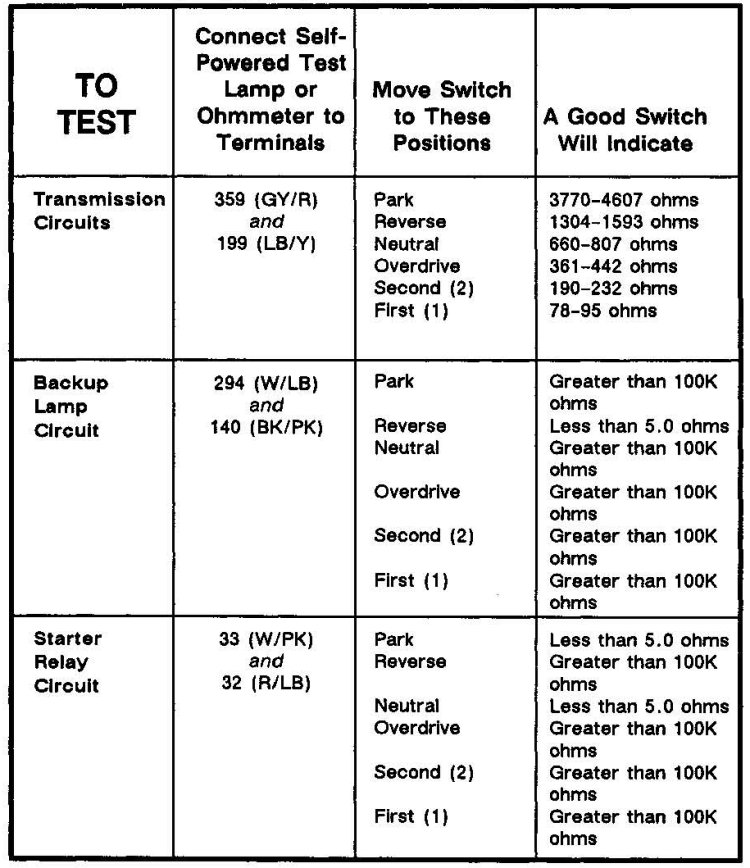

Component Testing Procedure:
