Home >> Lincoln >> 1993 >> Mark VIII V8-4.6L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> XB - Variable Control Relay Module (VCRM) >> XB87 - Check A/C Circuits For Intermittent Opens

XB87 - Check A/C Circuits For Intermittent Opens

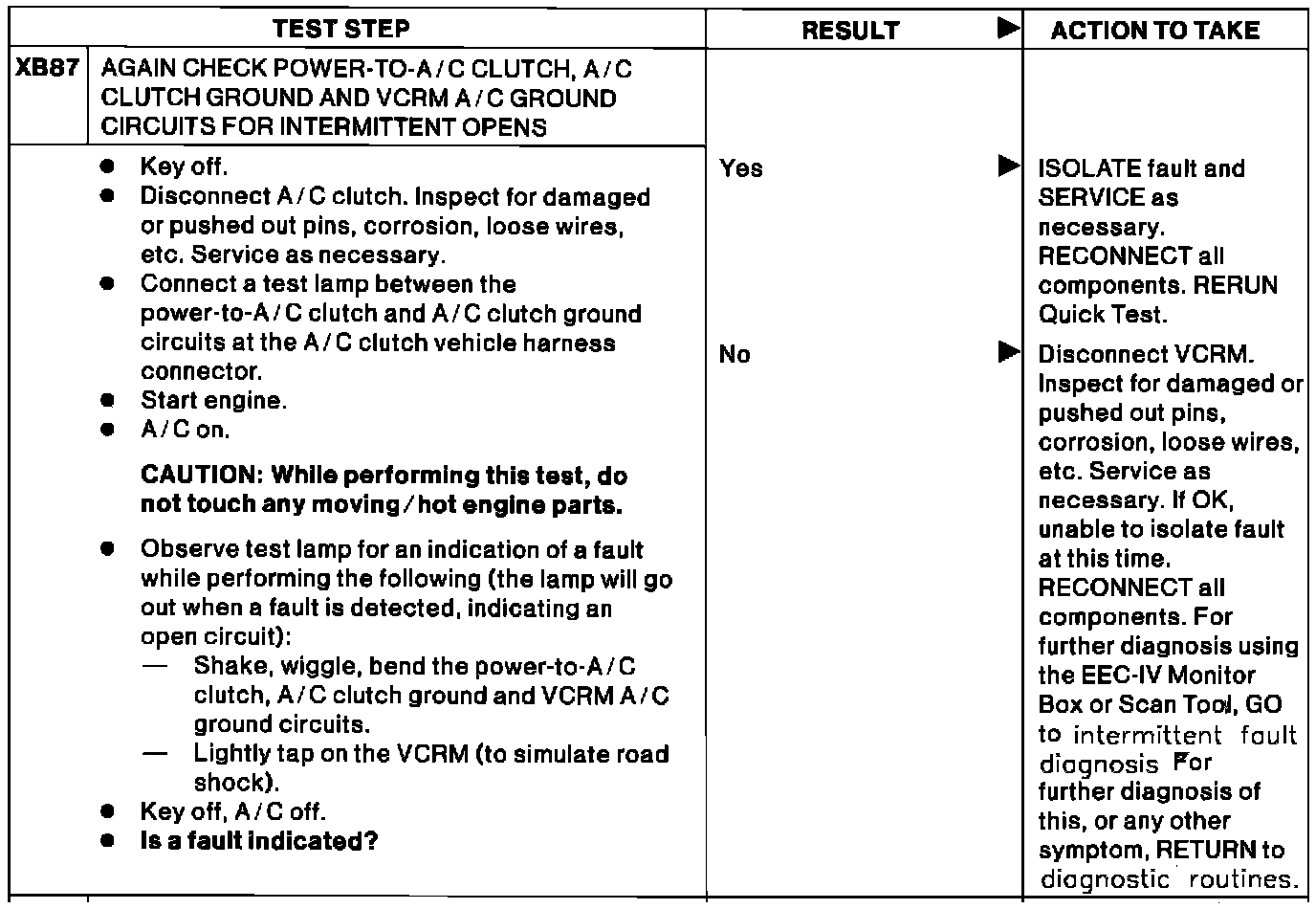

Pinpoint Test XB87:
