Home >> Lincoln >> 1993 >> Mark VIII V8-4.6L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> XB - Variable Control Relay Module (VCRM) >> XB53 - Check ACP Sensor Output

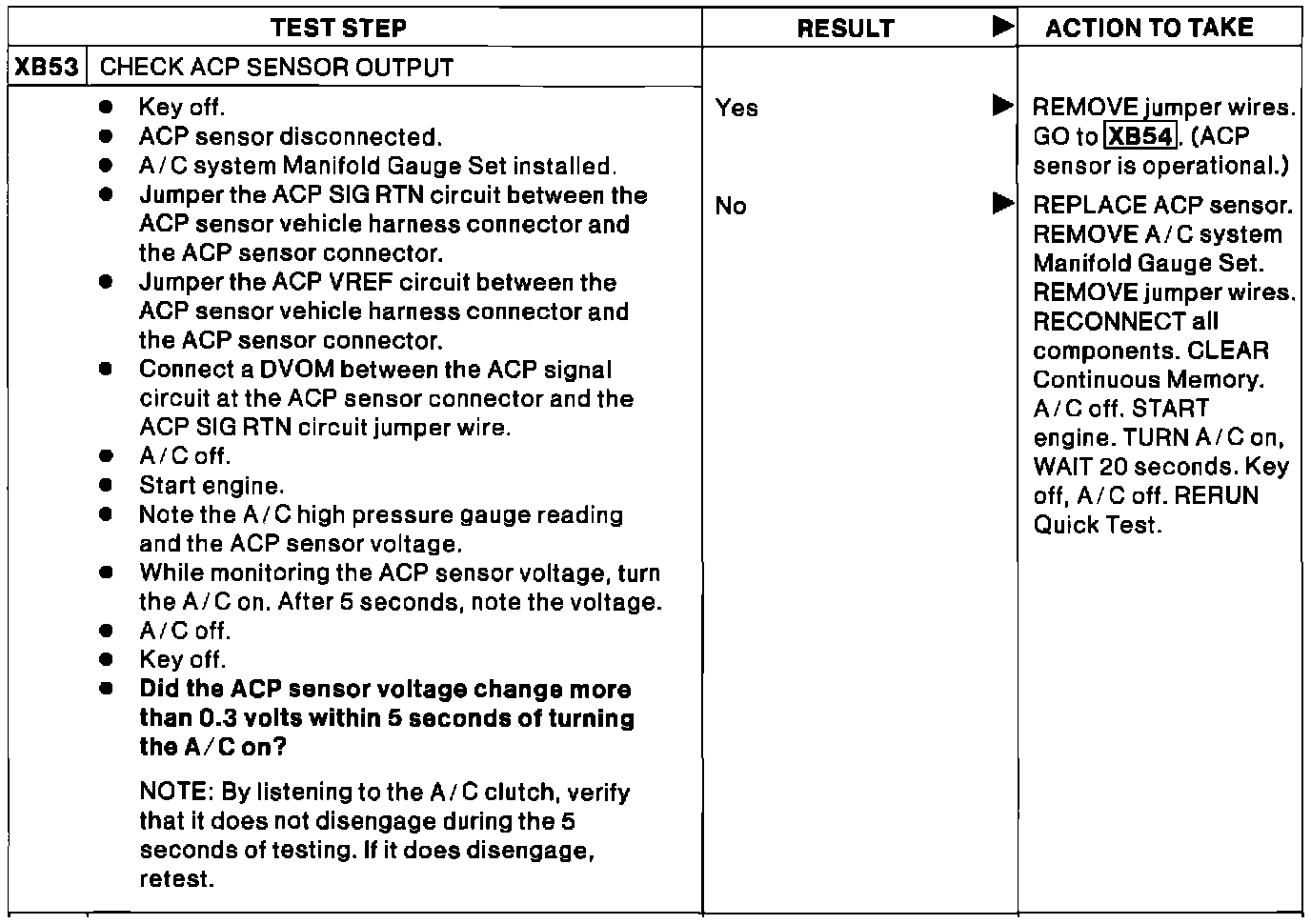

XB53 - Check ACP Sensor Output

Pinpoint Test XB53:
