Home >> Lincoln >> 1993 >> Mark VIII V8-4.6L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> XB - Variable Control Relay Module (VCRM) >> XB155 - Continuous Code 542: Check Ckts For Intermittent Open

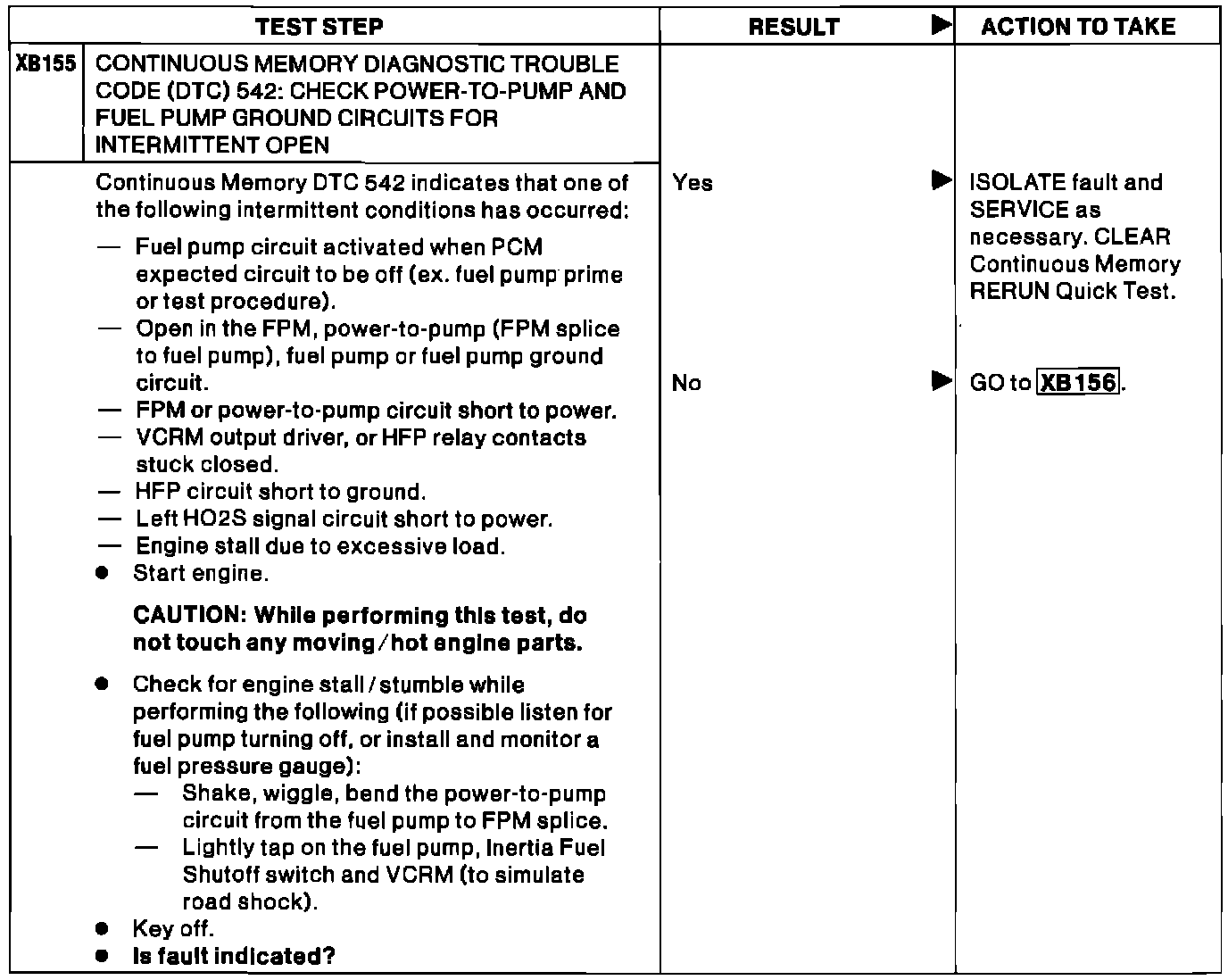

XB155 - Continuous Code 542: Check Ckts For Intermittent Open

Pinpoint Test XB155:
