Home >> Lincoln >> 1993 >> Mark VIII V8-4.6L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> XB - Variable Control Relay Module (VCRM) >> XB150 - Continuous Code 524/543/556: Is Cont Code 583 Present

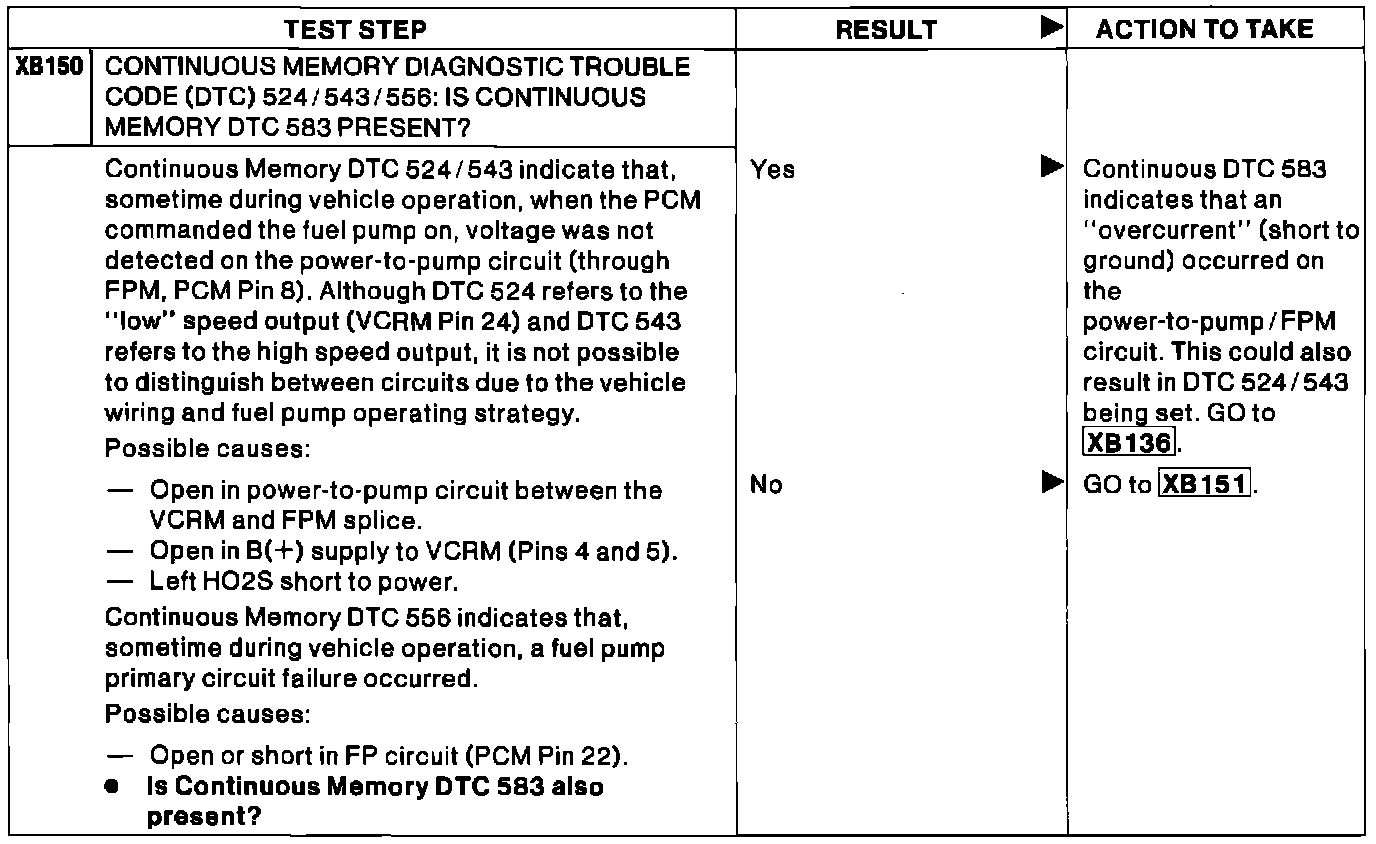

XB150 - Continuous Code 524/543/556: Is Cont Code 583 Present

Pinpoint Test XB150:
