Home >> Lincoln >> 1992 >> Mark VII V8-302 5.0L HO >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Connector Views >> ATC Control Module

ATC Control Module

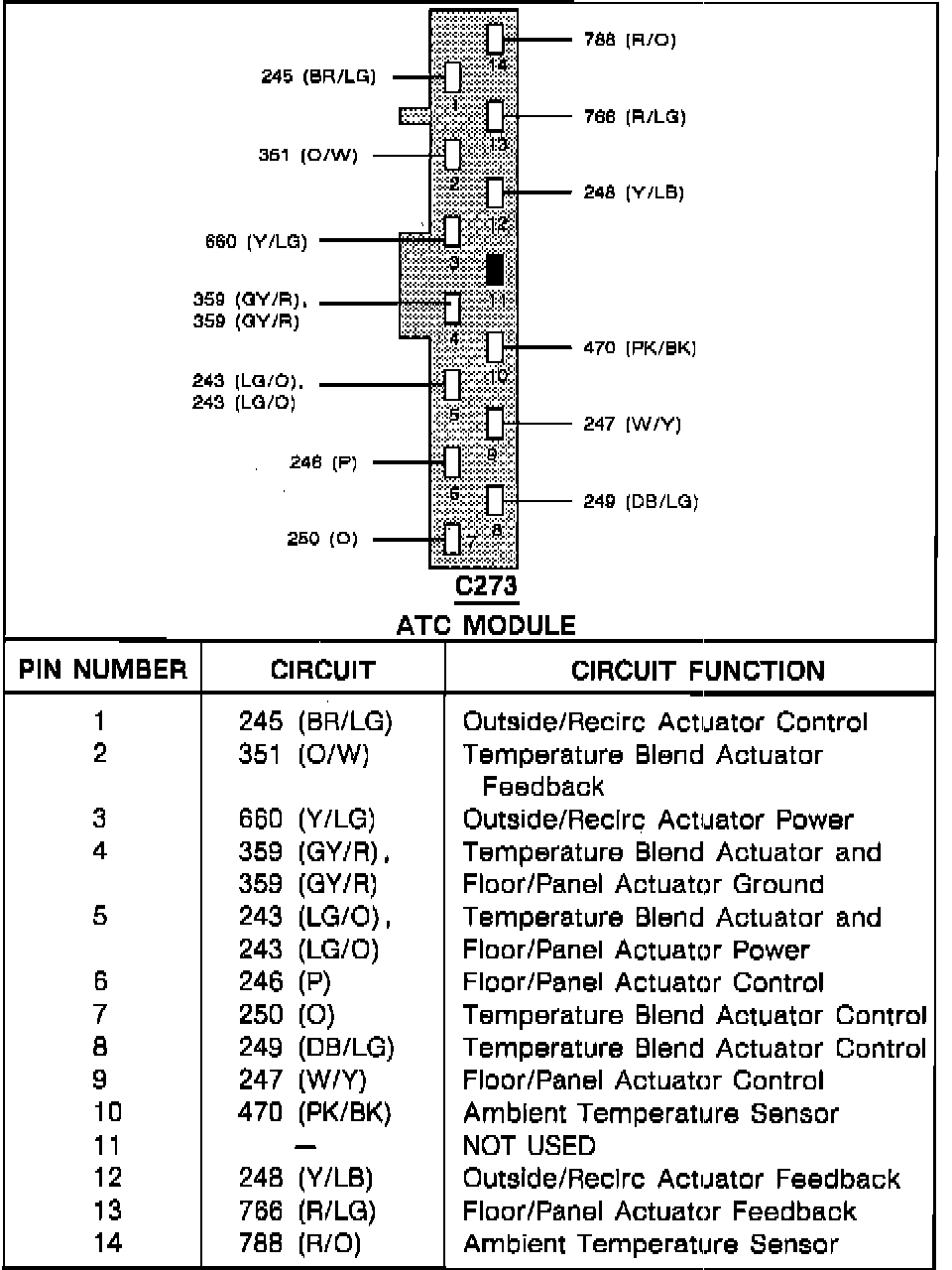

ATC Control Module:



ATC Control Module:
