Mark VII V8-302 5.0L VIN F FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
Connector Views

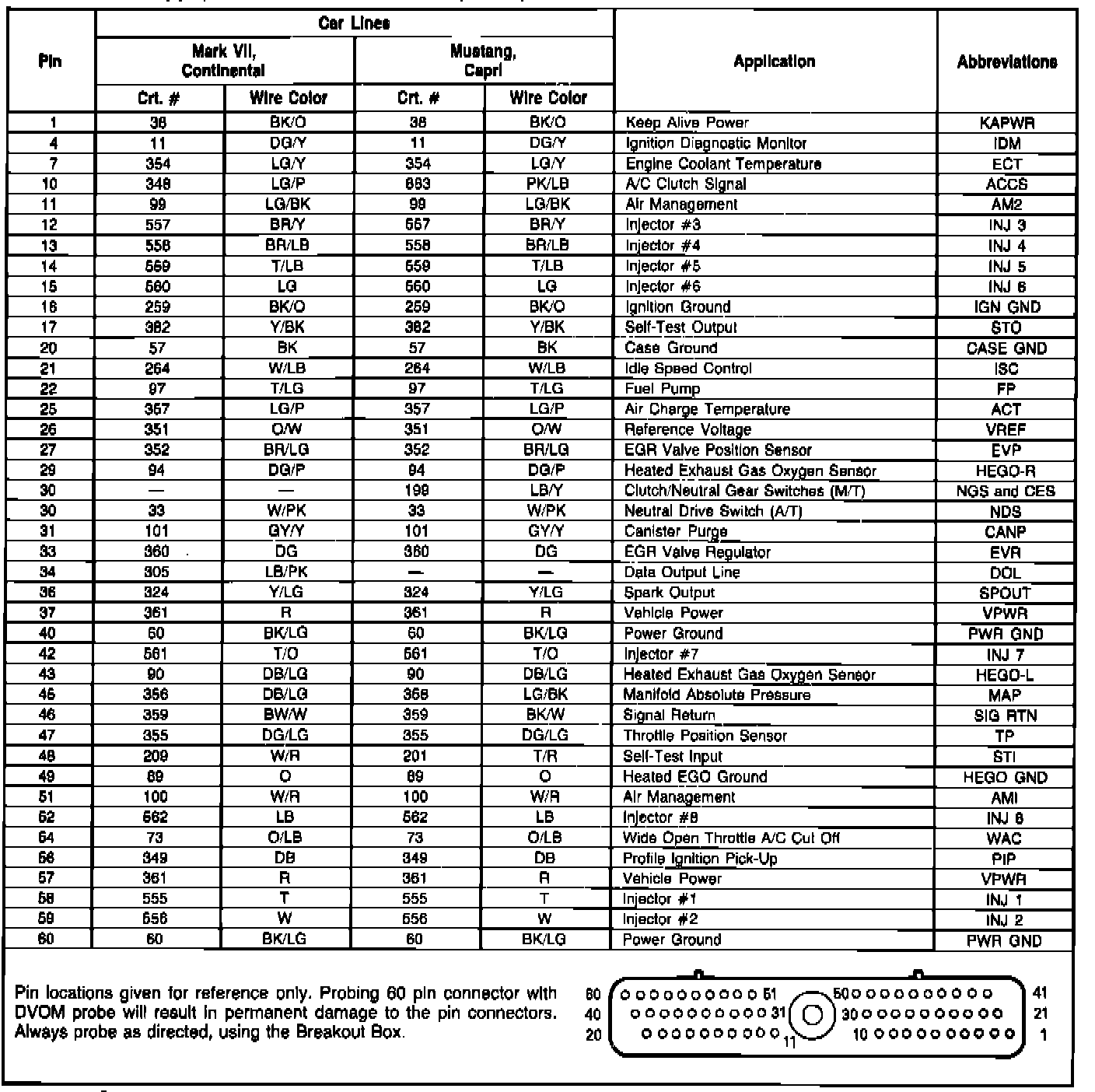

Fig. 320 EEC-IV module connector pin usage. 1987 Capri, Lincoln Continental, Mark VII & Mustang w/V8-302 SEFI engine:
