Removal

1UR-FSE STARTING: STARTER (for 2WD): REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTICE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE GENERATOR ASSEMBLY

(a) Remove the generator Removal.

4. REMOVE FRONT EXHAUST PIPE ASSEMBLY

(a) Remove the front exhaust pipe Removal.

5. REMOVE ENGINE UNDER COVER REAR LH Removal

6. REMOVE ENGINE UNDER COVER REAR RH Removal

7. DISCONNECT FRONT STABILIZER BAR Removal

8. REMOVE ENGINE UNDER COVER RH





(a) Remove the screw, clip and engine under cover.

9. REMOVE FRONT SUSPENSION MEMBER REINFORCEMENT RH





(a) Remove the 4 bolts and front suspension member reinforcement.

10. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE Removal

11. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR Removal

12. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH Removal

13. REMOVE NO. 3 EXHAUST MANIFOLD HEAT INSULATOR





(a) Remove the 3 bolts and heat insulator.

14. REMOVE STARTER ASSEMBLY

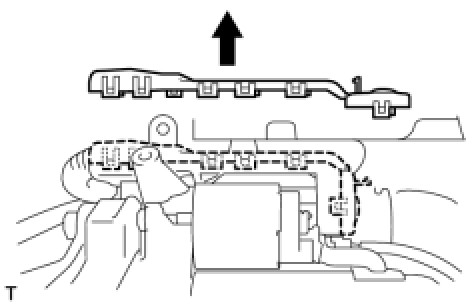

(a) Detach the 11 claws and remove the terminal upper cover.





(b) Disconnect the starter connector.

(c) Remove the nut and disconnect the wire harness.





(d) Remove the 2 bolts and starter.





(e) Remove the nut and starter terminal lower cover.





(f) Remove the flywheel housing side cover.
