Front And Rear Switch Cannot Operate Rear Sunshade

INTERIOR: REAR SUNSHADE SYSTEM: Front and Rear Switch Cannot Operate Rear Sunshade
- Front and Rear Switch Cannot Operate Rear Sunshade

DESCRIPTION

A rear sunshade switch signal is sent from the integration control and panel assembly (No. 2 console switch) to the outer mirror switch assembly through LIN communication. The outer mirror switch assembly then sends the signal to the luggage room junction block assembly (rear junction block ECU) through CAN communication, and the rear sunshade operates. For the curtain switch assembly, a rear sunshade signal is sent from the rear power seat switch to the luggage room junction block assembly (rear junction block ECU), and the rear sunshade operates.

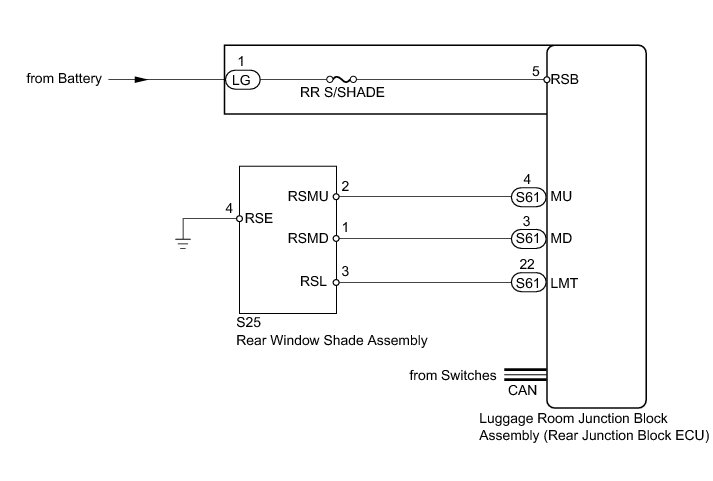

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC

(a) Clear the DTCs Rear Sunshade System.

(b) Check for DTCs Rear Sunshade System.

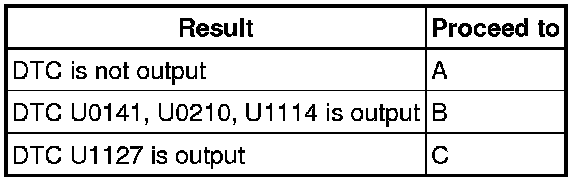

Result





B -- GO TO CAN COMMUNICATION SYSTEM CAN Communication System

C -- GO TO LIN COMMUNICATION SYSTEM LIN Communication System
A -- Continue to next step.

2. PERFORM ACTIVE TEST USING TECHSTREAM (BODY NO. 4)

(a) Select the Active Test, use the Techstream to generate a control command, and then check that the shade raises/lowers Rear Sunshade System.

Body No. 4





OK:

Rear sunshade raises or lowers.

NG -- INSPECT FUSE (RR S/SHADE)
OK -- Continue to next step.

3. READ VALUE USING TECHSTREAM (BODY NO. 4)

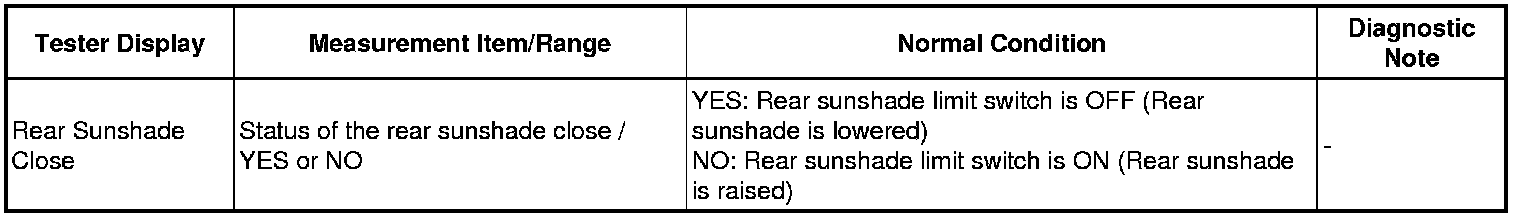

(a) Use the Data List to check if the rear sunshade limit switch is functioning properly Rear Sunshade System.

Body No. 4





OK:

Rear sunshade raises or lowers.

OK -- INSPECT FUSE (RR S/SHADE)
NG -- Continue to next step.

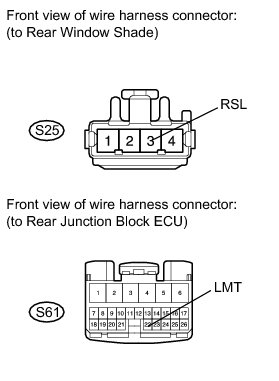

4. CHECK HARNESS AND CONNECTOR (REAR WINDOW SHADE - REAR JUNCTION BLOCK ECU AND BODY GROUND)





(a) Disconnect the S25 shade connector.

(b) Disconnect the S61 ECU connector.

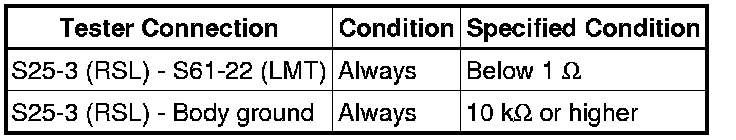

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE REAR WINDOW SHADE ASSEMBLY Removal

5. INSPECT FUSE (RR S/SHADE)

(a) Remove the RR S/SHADE fuse from luggage room junction block.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPLACE FUSE
OK -- Continue to next step.

6. CHECK HARNESS AND CONNECTOR (REAR JUNCTION BLOCK ECU - BODY GROUND)





(a) Disconnect the LG junction block connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

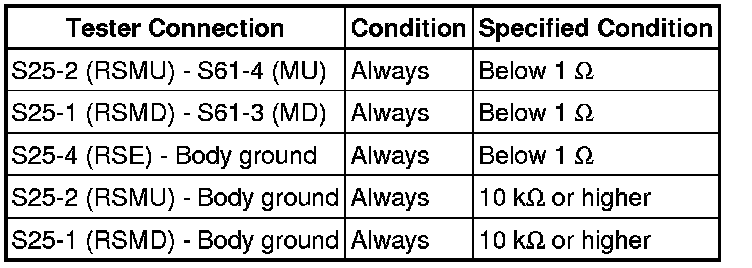

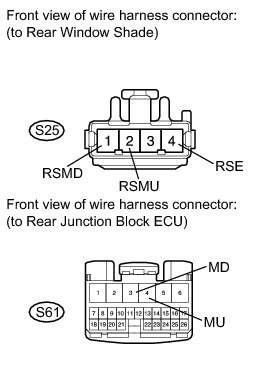

7. CHECK HARNESS AND CONNECTOR (REAR WINDOW SHADE - REAR JUNCTION BLOCK ECU AND BODY GROUND)





(a) Disconnect the S25 shade connector.

(b) Disconnect the S61 ECU connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

8. INSPECT REAR WINDOW SHADE ASSEMBLY

(a) Remove the rear window shade assembly Removal.

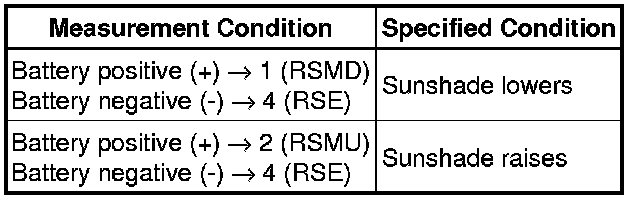

(b) Apply battery voltage and check the operation of the window shade motor.

Standard





NG -- REPLACE REAR WINDOW SHADE ASSEMBLY Removal

OK -- REPLACE LUGGAGE ROOM JUNCTION BLOCK ASSEMBLY Removal
