Installation

SUSPENSION CONTROL: CONTROL VALVE ASSEMBLY (for Rear Side): INSTALLATION

1. INSTALL NO. 2 HEIGHT CONTROL VALVE SUB-ASSEMBLY

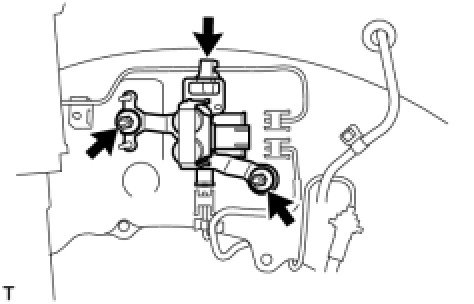

(a) Install the height control valve with the 2 nuts.





Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

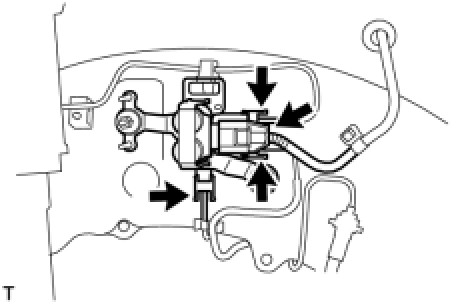

(b) Connect the air tube to the clamp.

(c) Connect the 3 air tubes Suspension Control System.





(d) Connect the connector.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

3. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

4. PERFORM INITIALIZATION

(a) Perform initialization Repair Instruction - Initialization.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

5. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.

6. INSPECT FOR AIR LEAK

(a) Inspect for air leak Operation Check.

7. INSTALL REAR WHEEL HOUSE LINER RH

(a) Install the rear fender liner with the 11 nuts.

(b) Install the 2 clips and 3 screws.

8. INSTALL QUARTER PANEL WHEEL OPENING MOULDING RH

(a) Install the moulding with the 4 screws.

9. INSTALL REAR WHEEL RH

Torque : 140 Nm (1428 kgf-cm, 103 ft-lbf)
