Removal

TIRE AND WHEEL: TIRE PRESSURE WARNING RESET SWITCH: REMOVAL

1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

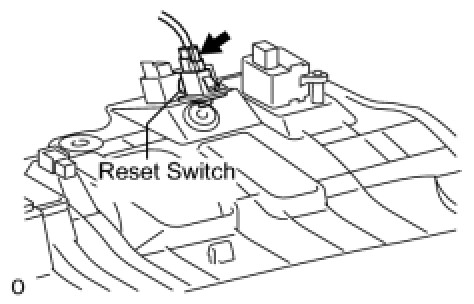

2. REMOVE TIRE PRESSURE WARNING RESET SWITCH





(a) Disconnect the switch connector.

(b) Detach the 2 claws and remove the reset switch from the cover.
