Removal

1UR-FSE STARTING: ENGINE SWITCH: REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTICE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE INSTRUMENT SIDE PANEL LH Removal

4. REMOVE NO. 1 INSTRUMENT CLUSTER MOULDING Removal

5. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Removal

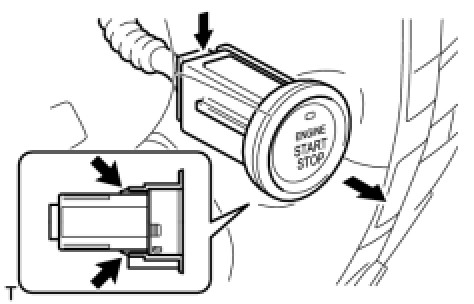

6. REMOVE ENGINE SWITCH





(a) Disconnect the switch connector.

(b) Detach the 2 claws and remove the switch.
