Installation

AIR CONDITIONING: AMBIENT TEMPERATURE SENSOR: INSTALLATION

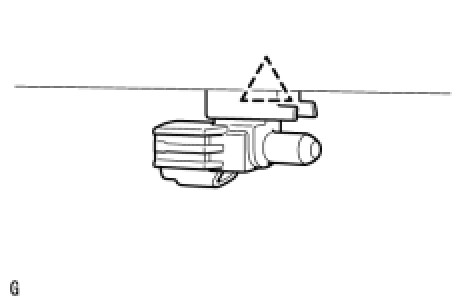

1. INSTALL AMBIENT TEMPERATURE SENSOR





(a) Attach the clamp to install the sensor.

(b) Connect the connector.

2. INSTALL FRONT BUMPER COVER

(a) Install the front bumper cover Installation.

3. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

5. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.
