Seat Belt Anchor Position Is Not Memorized Or Does Not Move To Memorized Position
SEAT BELT: POWER SHOULDER BELT ANCHORAGE SYSTEM: Seat Belt Anchor Position is not Memorized or does not Move to Memorized Position
- Seat Belt Anchor Position is not Memorized or does not Move to Memorized Position
DESCRIPTION
The shoulder belt anchor has a built-in position detection sensor. When the front door ECU LH or front door ECU RH receives a seat memory switch signal, it sends a memory store signal or call signal to the front power seat switch LH or front power seat switch RH and luggage room junction block assembly (rear junction block ECU). When the luggage room junction block assembly (rear junction block ECU) receives the memory store signal, it uses the position detection sensor to memorize the current position of the shoulder belt anchor. When the luggage room junction block assembly (rear junction block ECU) receives the call signal, it uses memorized shoulder belt anchor position and the position detection sensor to perform the call operation.

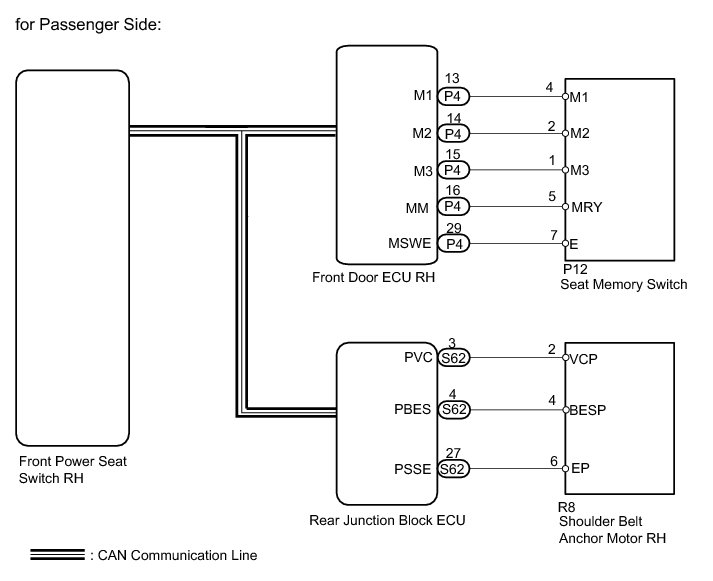

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
1. CHECK OPERATION OF SEAT MEMORY FUNCTION
(a) Check which seat memory function is not operating correctly.
OK:
B -- CHECK POWER BELT ANCHOR CONTROL FUNCTION
A -- Continue to next step.
2. CHECK POWER BELT ANCHOR CONTROL FUNCTION
(a) Operate the shoulder belt anchorage switch LH and check that the shoulder belt anchor LH operates normally.

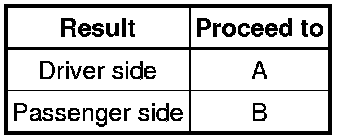

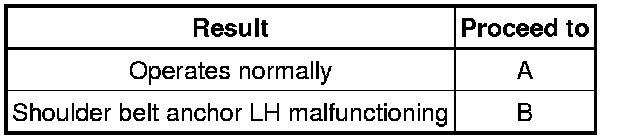

Result
B -- GO TO DRIVER SIDE SEAT BELT ANCHOR DOES NOT OPERATE MANUALLY Driver Side Seat Belt Anchor Does Not Operate Manually
A -- Continue to next step.
3. CHECK SEAT MEMORY SWITCH FUNCTION (SHOULDER BELT ANCHOR MEMORY FUNCTION)
(a) Check that the seat belt anchor LH positions can be memorized using the seat memory switch.
OK:
Shoulder belt anchor LH positions can be memorized using seat memory switch.
NG -- GO TO POWER SEAT CONTROL SYSTEM Problem Symptoms Table
OK -- Continue to next step.

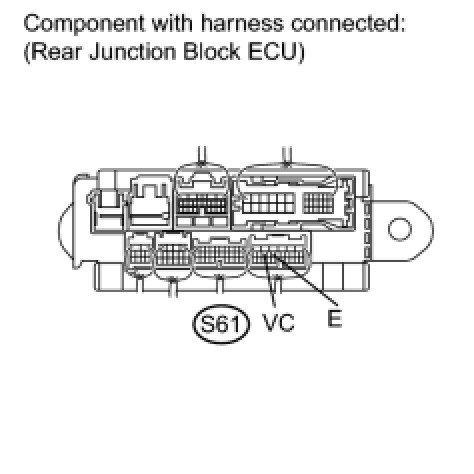

4. CHECK REAR JUNCTION BLOCK ECU
(a) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
NG -- REPLACE LUGGAGE ROOM JUNCTION BLOCK ASSEMBLY (REAR JUNCTION BLOCK ECU)
OK -- Continue to next step.

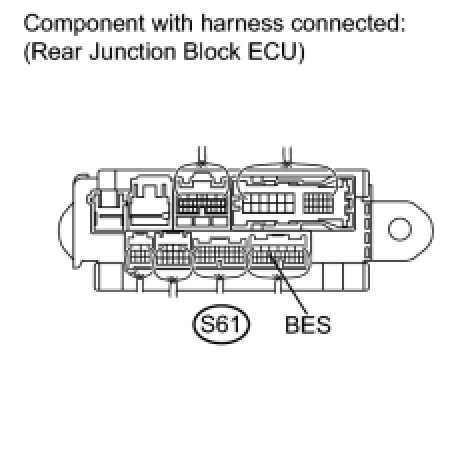

5. CHECK REAR JUNCTION BLOCK ECU (BES SIGNAL)

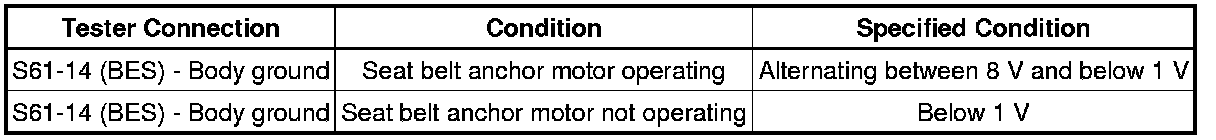

(a) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
NG -- CHECK HARNESS AND CONNECTOR (REAR JUNCTION BLOCK ECU - SHOULDER BELT ANCHOR MOTOR)
OK -- REPLACE LUGGAGE ROOM JUNCTION BLOCK ASSEMBLY (REAR JUNCTION BLOCK ECU)

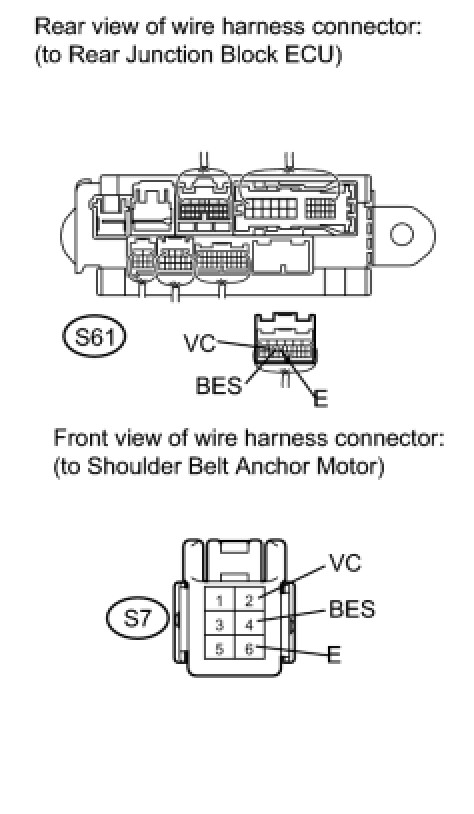

6. CHECK HARNESS AND CONNECTOR (REAR JUNCTION BLOCK ECU - SHOULDER BELT ANCHOR MOTOR)
(a) Disconnect the S61 ECU connector.
(b) Disconnect the S7 anchor connector.

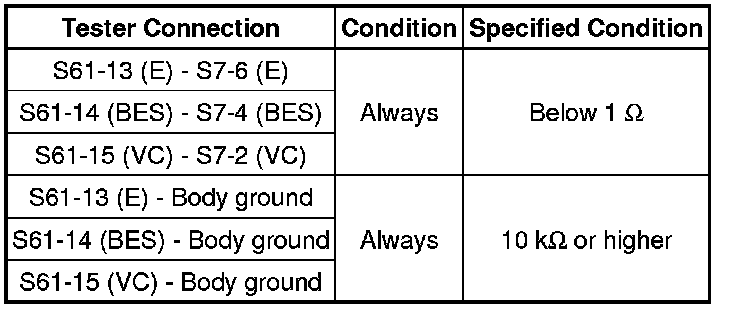

(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE SHOULDER BELT ANCHOR MOTOR LH Removal
7. CHECK POWER BELT ANCHOR CONTROL FUNCTION

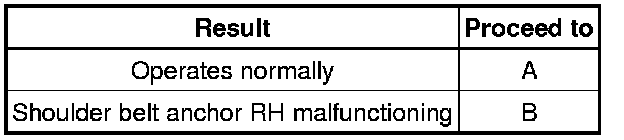

(a) Operate the shoulder belt anchorage switch RH and check that the shoulder belt anchor RH operates normally.
Result
B -- GO TO PASSENGER SIDE SEAT BELT ANCHOR DOES NOT OPERATE MANUALLY Front Passenger Side Seat Belt Anchor Does Not Operate Manually
A -- Continue to next step.
8. CHECK SEAT MEMORY SWITCH FUNCTION (SHOULDER BELT ANCHOR MEMORY FUNCTION)
(a) Check that the seat belt anchor RH positions can be memorized using the seat memory switch.
OK:
Shoulder belt anchor RH positions can be memorized using seat memory switch.
NG -- GO TO POWER SEAT CONTROL SYSTEM Problem Symptoms Table
OK -- Continue to next step.

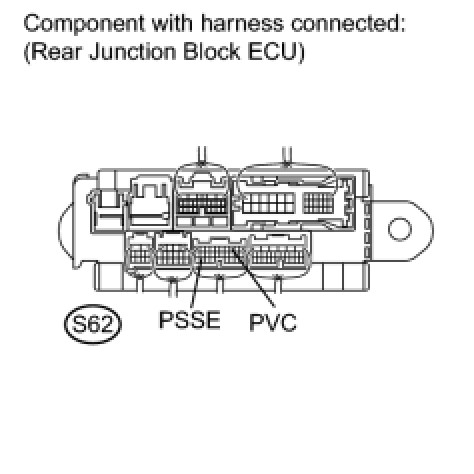

9. CHECK REAR JUNCTION BLOCK ECU
(a) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
NG -- REPLACE LUGGAGE ROOM JUNCTION BLOCK ASSEMBLY (REAR JUNCTION BLOCK ECU)
OK -- Continue to next step.

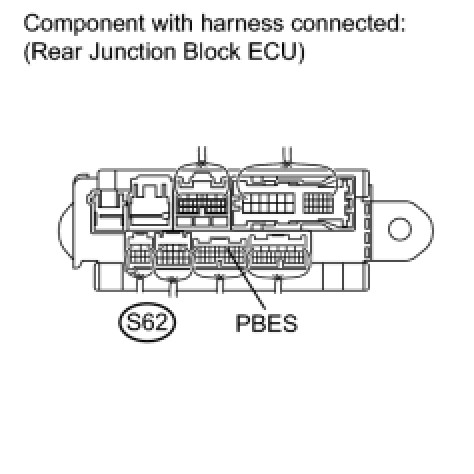

10. CHECK REAR JUNCTION BLOCK ECU (PBES SIGNAL)

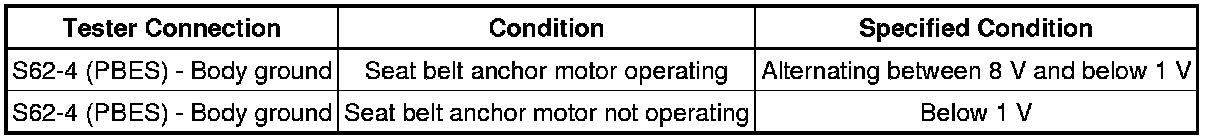

(a) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
NG -- CHECK HARNESS AND CONNECTOR (REAR JUNCTION BLOCK ECU - SHOULDER BELT ANCHOR MOTOR)
OK -- REPLACE LUGGAGE ROOM JUNCTION BLOCK ASSEMBLY (REAR JUNCTION BLOCK ECU)
11. CHECK HARNESS AND CONNECTOR (REAR JUNCTION BLOCK ECU - SHOULDER BELT ANCHOR MOTOR)

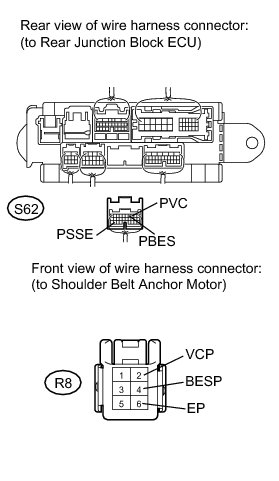

(a) Disconnect the S62 ECU connector.
(b) Disconnect the R8 anchor connector.

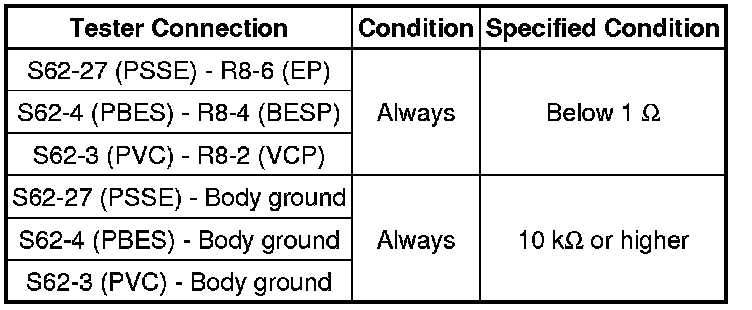

(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE SHOULDER BELT ANCHOR MOTOR RH Removal
