Removal

AUDIO / VISUAL: REAR SEAT ENTERTAINMENT ECU: REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
* w/ Navigation System (for HDD):
After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY Removal

4. REMOVE ROPE HOOK ASSEMBLY Removal

5. REMOVE ROPE HOOK Removal

6. REMOVE DECK TRIM SIDE BOARD RH Removal

7. REMOVE REAR FLOOR FINISH PLATE Removal

8. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY Removal

9. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM HOOK (w/o Rear Cooler) Removal

10. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER Removal

11. REMOVE NO. 1 COOLER COVER (w/ Rear Cooler) Removal

12. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH Removal

13. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY Removal

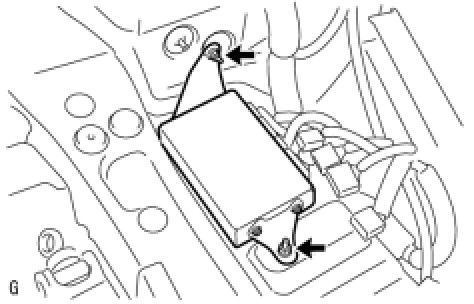

14. REMOVE REAR SEAT ENTERTAINMENT ECU WITH BRACKET





(a) Disconnect the connectors.

(b) Remove the 2 nuts and ECU with bracket.

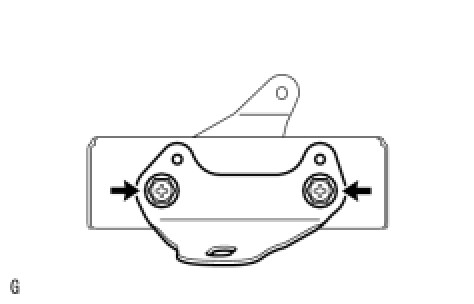

15. REMOVE NO. 1 REAR SEAT ENTERTAINMENT ECU BRACKET





(a) Remove the 2 bolts and bracket.

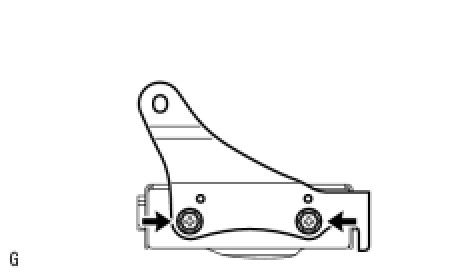

16. REMOVE NO. 2 REAR SEAT ENTERTAINMENT ECU BRACKET





(a) Remove the 2 bolts and bracket.
