Removal

1UR-FSE FUEL: INJECTOR DRIVER: REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE V-BANK COVER SUB-ASSEMBLY Removal

4. REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY Removal

5. REMOVE ENGINE ROOM SIDE COVER LH Removal

6. REMOVE ENGINE ROOM SIDE COVER Removal

7. REMOVE NO. 1 AIR CLEANER INLET Removal

8. REMOVE INTAKE AIR CONNECTOR PIPE Removal

9. REMOVE AIR CLEANER CAP LH

(a) Remove the air cleaner cap LH.

10. REMOVE AIR CLEANER CAP RH

(a) Remove the air cleaner cap RH.

11. DISCONNECT ENGINE WIRE Removal

12. REMOVE INJECTOR DRIVER

(a) Disconnect the 8 injector driver connectors.





(1) Disconnect the 6 connectors with wire harness locks and the 2 connectors without wire harness locks from the 2 injector drivers.

HINT

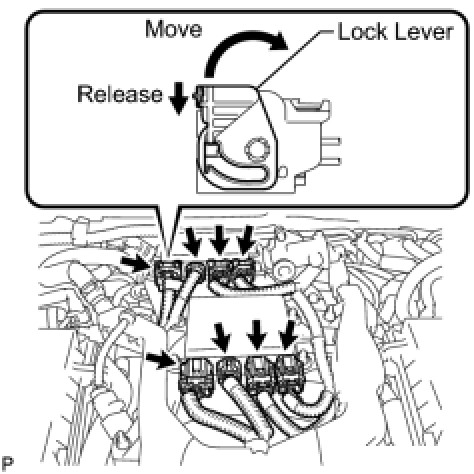

To release each connector lock, push the claw downward ("Release" in the illustration) and move the lock lever ("Move" in the illustration).

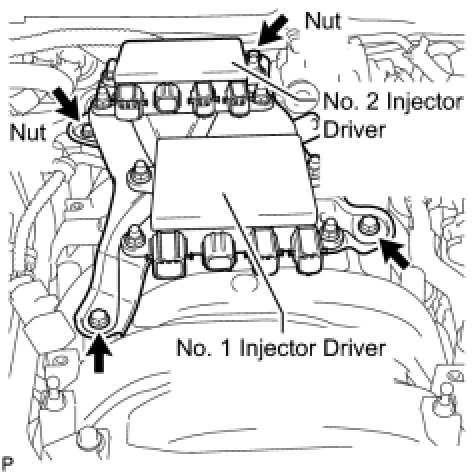

(b) Remove the 2 bolts, 2 nuts and 2 injector drivers with bracket.





NOTICE:
Be careful not to drop or strike the injector driver.

(c) Remove the 8 nuts and 2 injector drivers from the bracket.
