Installation

1UR-FSE FUEL: INJECTOR DRIVER: INSTALLATION

1. INSTALL INJECTOR DRIVER

NOTICE:
* Be careful not to drop or strike the injector driver.
* The injector driver is grounded at the bolt and nut. To ensure that it is grounded, clean all oil and foreign matter from the installation areas of the injector driver and engine before installing the injector driver.

(a) Install the 2 injector drivers to the bracket with the 8 nuts.

Torque : 7.5 Nm (76 kgf-cm, 66 in-lbf)

(b) Temporarily install the 2 injector drivers (with bracket) with the 2 bolts and 2 nuts.

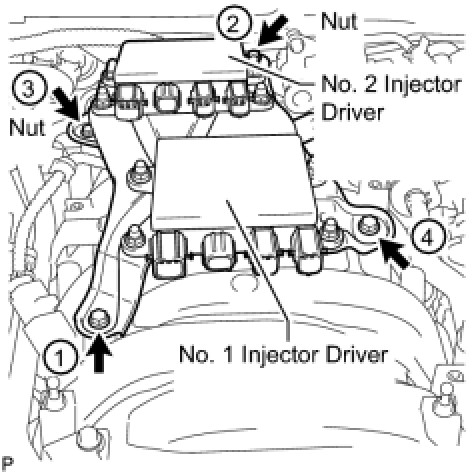

(c) Tighten the 2 bolts and 2 nuts in the order shown in the illustration.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(d) Connect the 8 injector driver connectors.





(1) Connect the 6 connectors with wire harness locks and the 2 connectors without wire harness locks to the 2 injector drivers.

NOTICE:
Connect the connector securely.

HINT

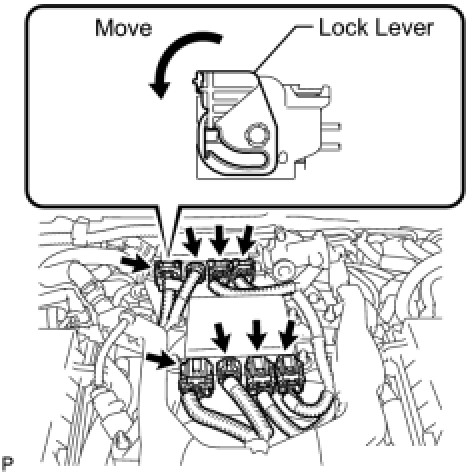

Move the lock lever in the direction indicated by the arrow to lock the connector.

2. CONNECT ENGINE WIRE Installation

3. INSTALL AIR CLEANER CAP LH

(a) Install the air cleaner cap LH.

4. INSTALL AIR CLEANER CAP RH

(a) Install the air cleaner cap RH.

5. INSTALL INTAKE AIR CONNECTOR PIPE Installation

6. INSTALL NO. 1 AIR CLEANER INLET Installation

7. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

8. INSTALL ENGINE ROOM SIDE COVER LH Installation

9. INSTALL ENGINE ROOM SIDE COVER Installation

10. INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY Installation

11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

12. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

13. PERFORM INITIALIZATION

(a) Perform initialization Repair Instruction - Initialization.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
