Installation

LIGHTING: HIGH INTENSITY DISCHARGE HEADLIGHT BULB: INSTALLATION

1. INSTALL DISCHARGE HEADLIGHT BULB

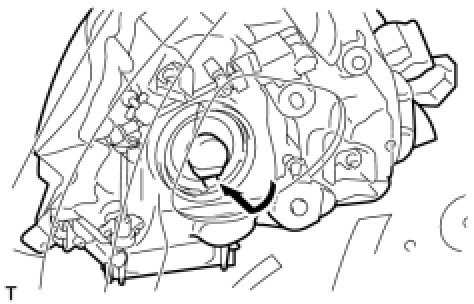

(a) Lock the set spring and install the discharge headlight bulb.

NOTICE:
Do not touch the glass part of the bulb.

(b) Turn the headlight control ECU in the direction indicated by the arrow and install the socket.

NOTICE:
Install the socket so that the wire harness is pointed downwards.





(c) Turn the back cover in the direction indicated by the arrow and install it.

2. INSTALL FRONT FENDER LINER LH

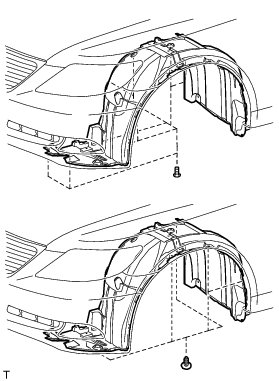

(a) Install the front fender liner LH with the 7 screws and 5 clips.





3. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH Installation

4. INSTALL FRONT FENDER WHEEL OPENING MOULDING LH

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

CAUTION:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

6. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
