METER: TRIP SWITCH: INSTALLATION

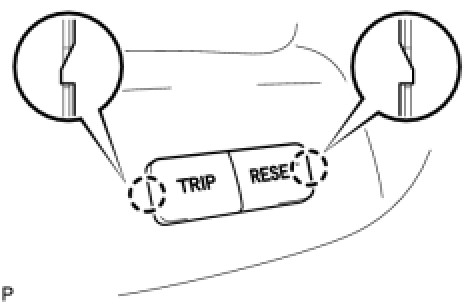

1. INSTALL TRIP SWITCH

(a) Attach the 2 claws to install the switch.





2. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Installation

3. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY Installation

4. INSTALL STEERING COLUMN COVER Installation
