Replacement

1UR-FSE ENGINE MECHANICAL: FRONT CRANKSHAFT OIL SEAL: REPLACEMENT

1. REMOVE V-BANK COVER SUB-ASSEMBLY Removal

2. REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY Removal

3. REMOVE NO. 1 AIR CLEANER INLET Removal

4. REMOVE INTAKE AIR CONNECTOR PIPE Removal

5. REMOVE V-RIBBED BELT Removal

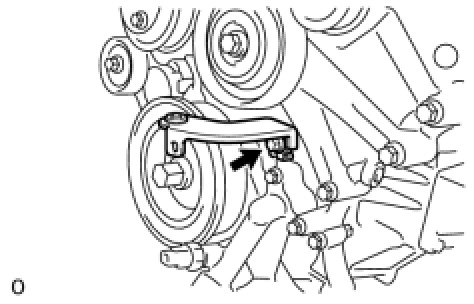

6. REMOVE RESONATOR BRACKET SUB-ASSEMBLY

(a) Remove the bolt and resonator bracket.





7. REMOVE CRANKSHAFT PULLEY Removal

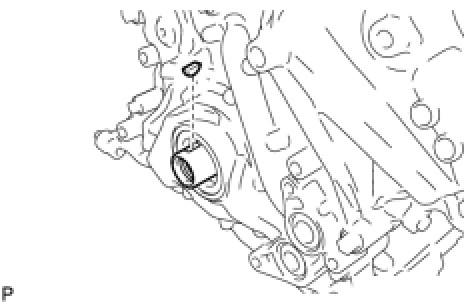

8. REMOVE CRANKSHAFT TIMING GEAR KEY

(a) Remove the crankshaft timing gear key from the crankshaft.

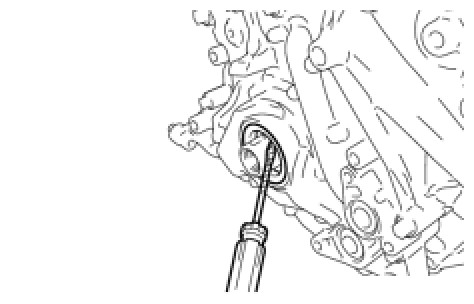

9. REMOVE TIMING CHAIN CASE OIL SEAL

(a) Remove the oil seal with a screwdriver.





HINT
Tape the screwdriver tip before use.

NOTICE:
Do not damage the surface of the oil seal press fit hole and crankshaft.

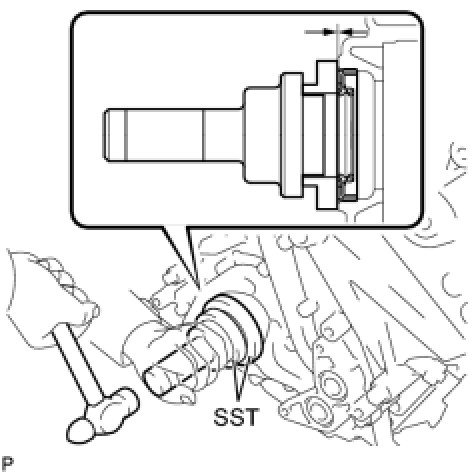

10. INSTALL TIMING CHAIN CASE OIL SEAL

(a) Using SST, tap in a new oil seal until its surface is flush with the timing chain case edge.





SST : 09223-22010

SST : 09506-35010

NOTICE:
* Keep the lip free from foreign matter.
* Do not tap oil seal at an angle.

11. INSTALL CRANKSHAFT TIMING GEAR KEY

(a) Install the crankshaft timing gear key.





12. INSTALL CRANKSHAFT PULLEY Installation

13. INSTALL RESONATOR BRACKET SUB-ASSEMBLY

(a) Install the resonator bracket with the bolt.





Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)

14. INSTALL V-RIBBED BELT Installation

15. INSTALL INTAKE AIR CONNECTOR PIPE Installation

16. INSTALL NO. 1 AIR CLEANER INLET Installation

17. INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY Installation

18. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
