Installation

SEAT: FRONT SEAT CUSHION HEATER: INSTALLATION

NOTICE:
* As the front passenger side seat has an occupant classification system, its front seat cushion assembly cannot be disassembled.
* If replacing the front passenger side seat, replace the front seat set (cushion assembly, occupant classification ECU and 2 nuts).

1. INSTALL FRONT SEAT CUSHION COVER SUB-ASSEMBLY LH

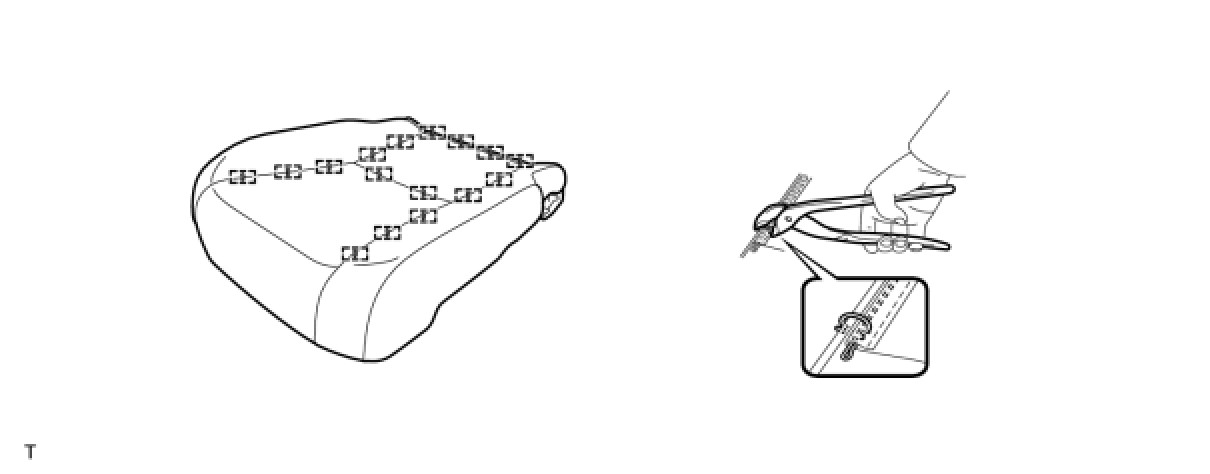

(a) Using hog ring pliers, install the seat cushion cover to the seat cushion pad with new hog rings.

NOTICE:
* Be careful not to damage the cover.
* When installing the hog rings, avoid wrinkling the cover.





2. INSTALL FRONT SEAT CUSHION FRAME SUB-ASSEMBLY LH Reassembly

3. INSTALL FRONT SEAT CUSHION ASSEMBLY LH Reassembly

4. INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY LH Reassembly

5. INSTALL FRONT SEAT CUSHION SHIELD INNER LH Reassembly

6. INSTALL FRONT SEAT INNER BELT ASSEMBLY LH Installation

7. INSTALL FRONT NO. 1 SEAT CUSHION SHIELD LH Reassembly

8. INSTALL FRONT SEAT CUSHION SHIELD LH Reassembly

9. INSTALL FRONT SEAT ASSEMBLY LH

(a) Install the front seat assembly Installation.
