Front Passenger Side Power Mirror Cannot Be Adjusted With Power Mirror Switch

MIRROR: POWER MIRROR CONTROL SYSTEM: Front Passenger Side Power Mirror cannot be Adjusted with Power Mirror Switch
- Front Passenger Side Power Mirror cannot be Adjusted with Power Mirror Switch

SYSTEM DESCRIPTION

The circuit detects the conditions of the mirror control switch.

The outer mirror switch sends information about the operating condition of the mirror switch (switch input signals) through the CAN (can communication) line. Then the switch input signals are sent to the front door ECU RH. Mirror adjustment is controlled by the front door ECU RH.

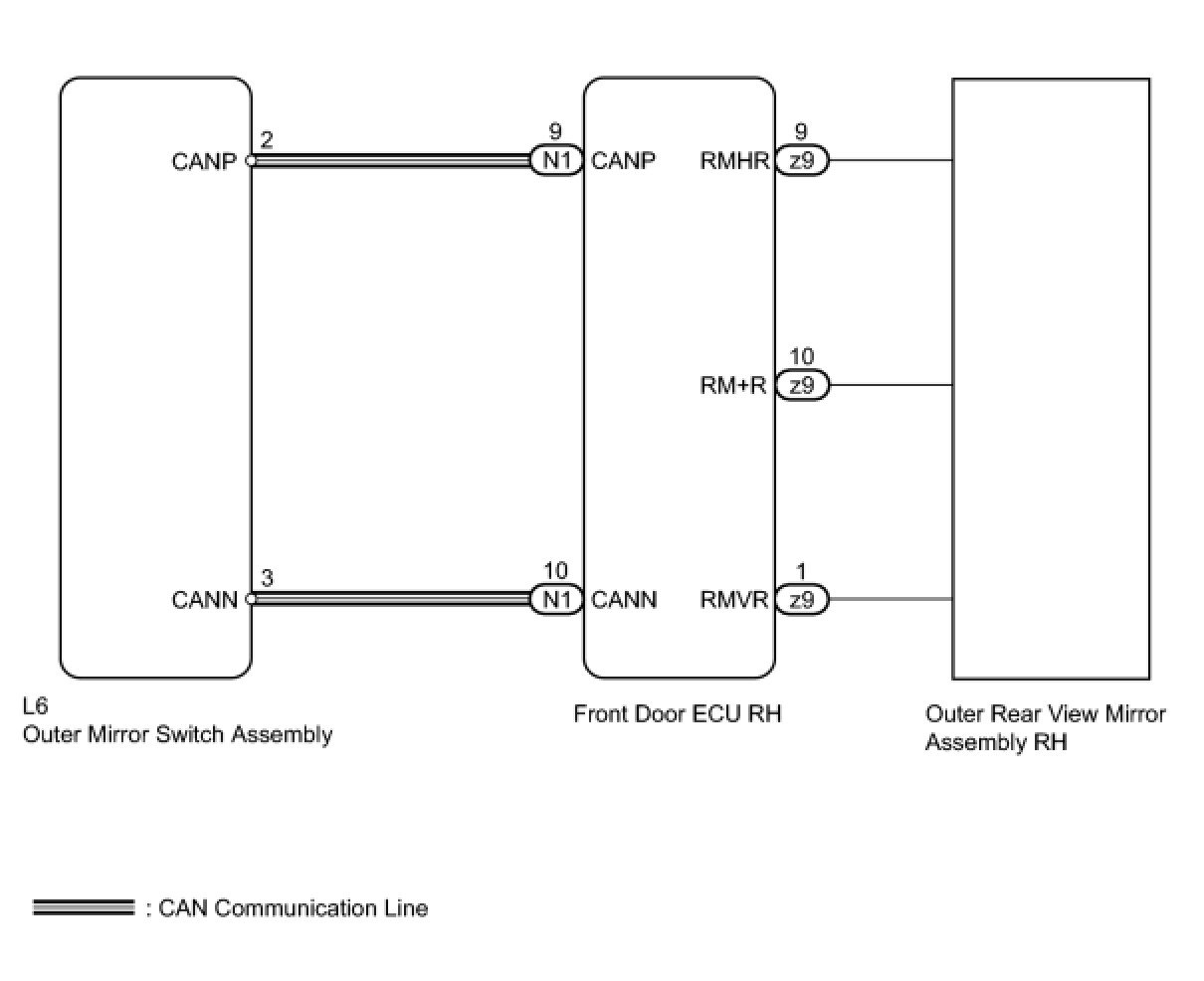

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC

(a) Use the Techstream to check if the CAN communication system is functioning normally.

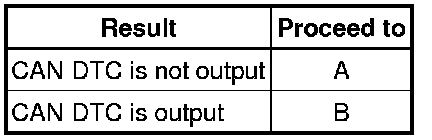

Result:





B -- GO TO CAN COMMUNICATION SYSTEM How to Proceed With Troubleshooting
A -- Continue to next step.

2. READ VALUE USING TECHSTREAM (MIRROR MASTER SWITCH AND MIRROR CONTROL SWITCH)

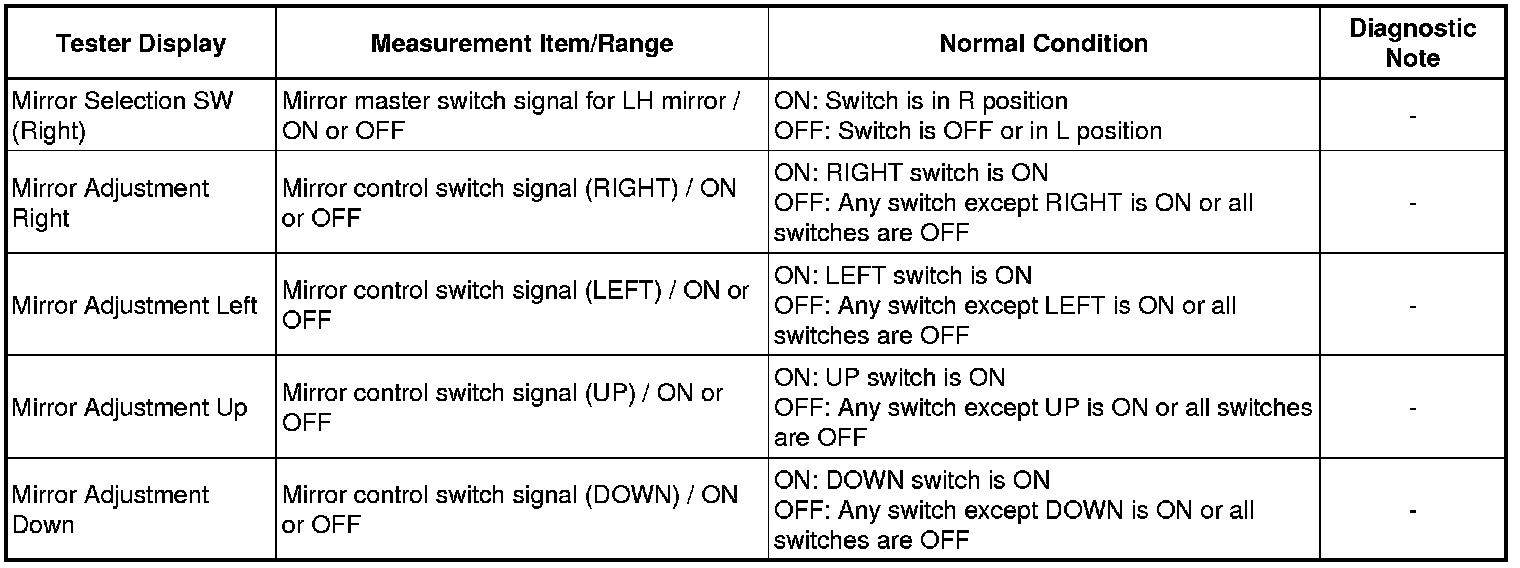

(a) Check the Data List for proper functioning of the mirror master switch and mirror control switch.

D-SEAT SW





OK:

On screen, each item changes between ON and OFF according to above chart.

NG -- REPLACE OUTER MIRROR SWITCH ASSEMBLY Removal
OK -- Continue to next step.

3. PERFORM ACTIVE TEST USING TECHSTREAM (POWER MIRROR CONTROL FUNCTION)

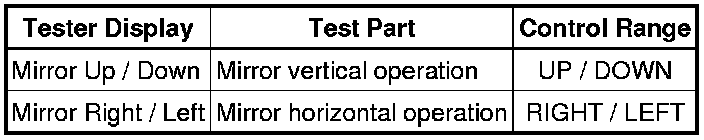

(a) Select the Active Test, use the Techstream to generate a control command, and then check the power mirror control function.

Passenger Door

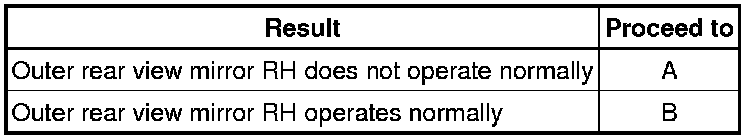

Result





B -- REPLACE OUTER MIRROR SWITCH ASSEMBLY Removal
A -- Continue to next step.

4. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH (LEFT / RIGHT MOTOR, UP / DOWN MOTOR)

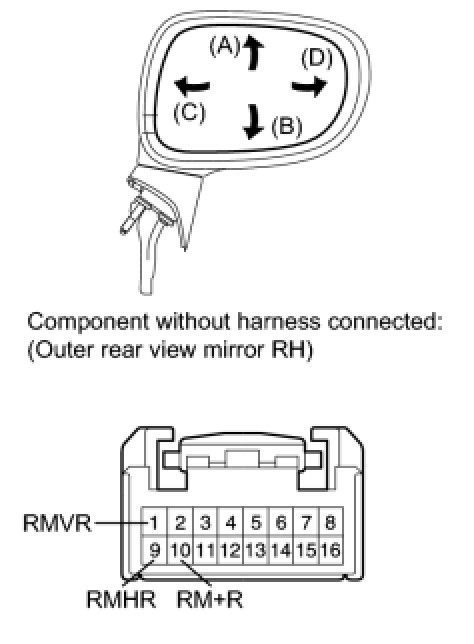

(a) Remove the mirror RH Removal.

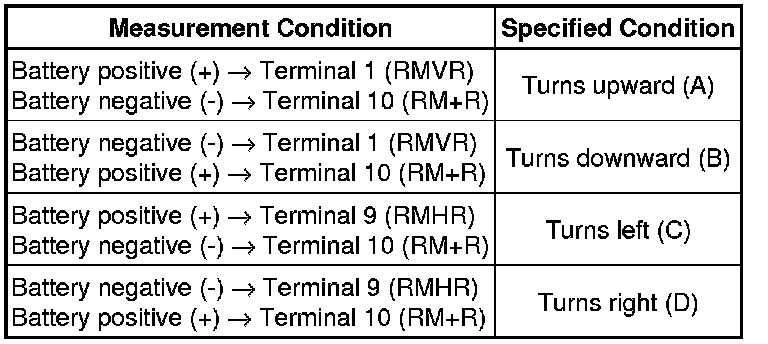

(b) Apply battery voltage and check the operation of the power mirror.

OK:





NG -- REPLACE OUTER REAR VIEW MIRROR ASSEMBLY RH Removal

OK -- REPLACE FRONT DOOR ECU RH Disassembly
