Installation

INTERIOR: FRONT CONSOLE BOX (w/o Rear Seat Entertainment System): INSTALLATION

HINT
A bolt without a torque specification is shown in the standard bolt chart Removal.

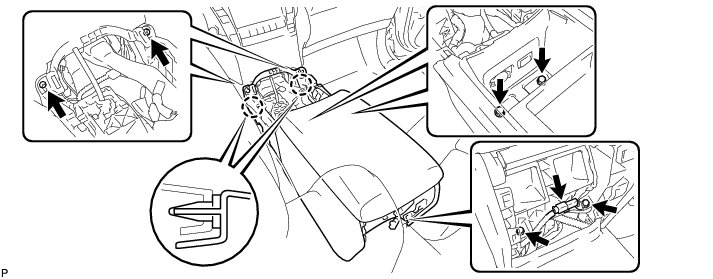

1. INSTALL CONSOLE BOX ASSEMBLY

(a) Attach the 2 claws to install the console box.

(b) Connect the connectors.

(c) Install the console box with the 4 bolts and 2 screws.





2. INSTALL LOWER CONSOLE COVER

(a) Install the lower console cover.

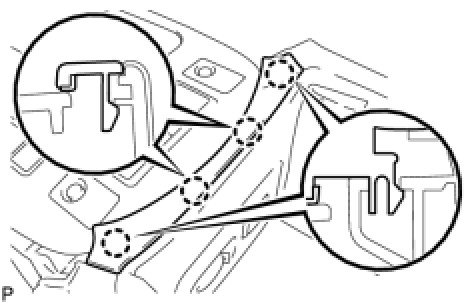

3. INSTALL REAR CONSOLE END PANEL SUB-ASSEMBLY

(a) Connect the connector.





(b) Attach the 5 clips and 2 claws to install the end panel.

4. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY





(a) Connect each connector.

(b) Attach the 2 clips to install the upper console panel.

5. INSTALL UPPER REAR CONSOLE PANEL SUB-ASSEMBLY





(a) Connect each connectors.

(b) Attach the 6 clips to install the upper rear console panel.

(c) Install the 2 screws.

6. INSTALL NO. 3 BOX PANEL





(a) Attach the 4 claws to install the No. 3 box panel.

7. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY





(a) Install the shift lever knob and twist it in the direction indicated by the arrow.

8. INSTALL INSTRUMENT PANEL FINISH PANEL END LH





(a) Attach the 8 clips and claw to install the instrument panel finish panel end.

9. INSTALL INSTRUMENT PANEL FINISH PANEL END RH

HINT
Use the same procedure described for the LH side.
