Installation

CELLULAR COMMUNICATION: TELEPHONE AND GPS ANTENNA: INSTALLATION

1. INSTALL TELEPHONE AND GPS ANTENNA

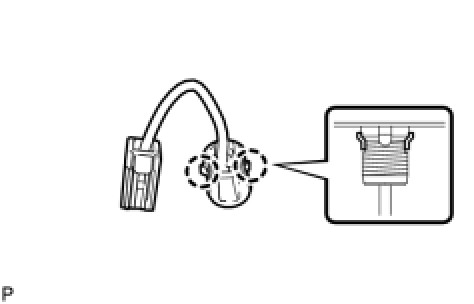

(a) Attach the 2 claws to install the telephone antenna.

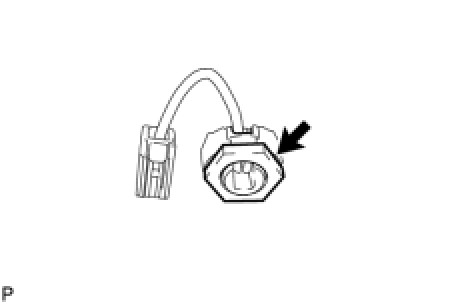

(b) Install the antenna nut.





Torque : 4.5 Nm (46 kgf-cm, 40 in-lbf)

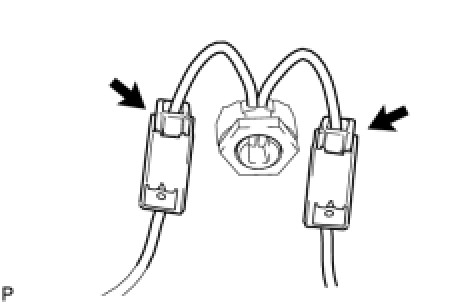

(c) Connect the 2 connectors.

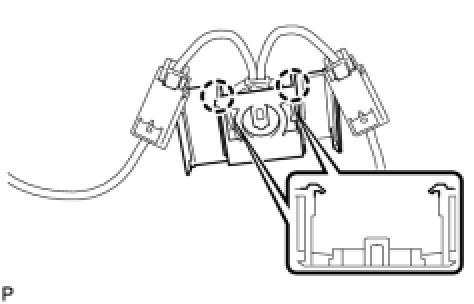

(d) Attach the 2 claws to install the protector.

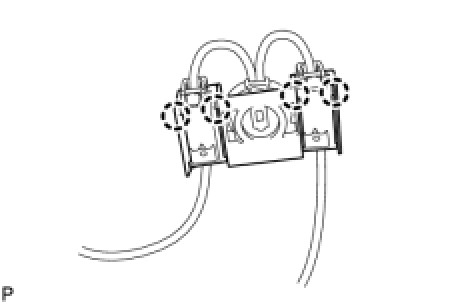

(e) Attach the 4 claws to install the 2 antenna cord connectors.

2. INSTALL ROOF HEADLINING ASSEMBLY

(a) for Standard Body:

Install the roof headlining Installation.

(b) for Long Body:

Install the roof headlining Removal.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

4. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.
