P0505

1UR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0505: Idle Control System Malfunction

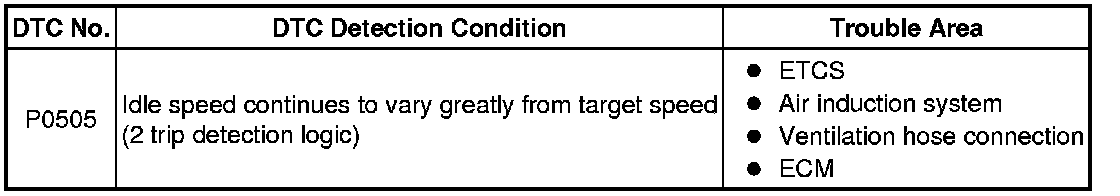

P0505 - Idle Control System Malfunction

DESCRIPTION

The idle speed is controlled by the Electronic Throttle Control System (ETCS). The ETCS is comprised of: 1) one valve type throttle body; 2) the throttle actuator, which operates the throttle valve; 3) the throttle position sensor, which detects the opening angle of the throttle valve; 4) the accelerator pedal position sensor, which detects the accelerator pedal position; 5) the ECM, which controls the ETCS. Based on the target idle speed, the ECM controls the throttle actuator to provide the proper throttle valve opening angle.





MONITOR DESCRIPTION

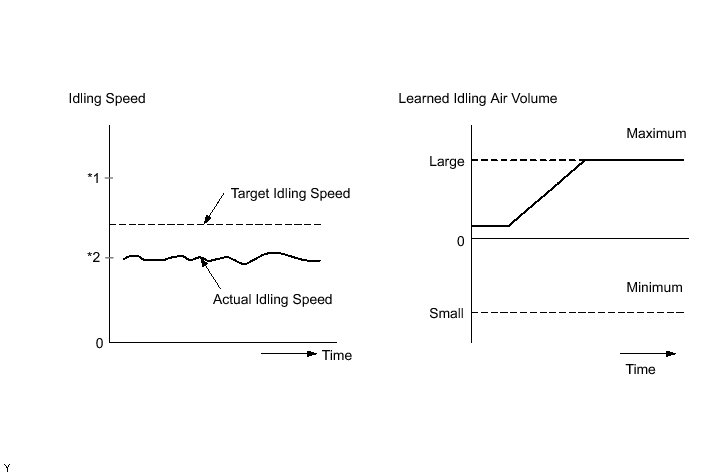

The ECM monitors the idling speed and idling air flow volume to conduct Idle Speed Control (ISC). The ECM determines that the ISC system is malfunctioning if the following conditions are met:

- The difference between the target engine idling speed and actual engine idling speed exceeds the threshold and the IAC flow rate learned value is stuck at the upper or lower limit for 5 seconds or more.

- After driving at a vehicle speed of 10 km/h (6.25 mph) or more, the difference between the target and actual engine idling speed exceeds the threshold 5 times or more during a driving cycle, and then the system determines that the IAC flow rate learned value is stuck at the upper or lower limit, or that the IAC flow rate learned value has been changed by an amount that exceeds the threshold.

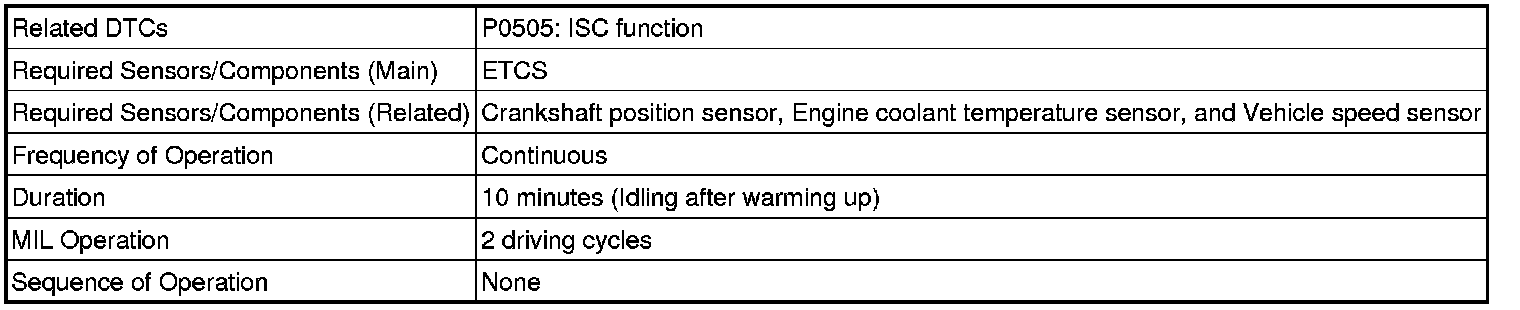

MONITOR STRATEGY

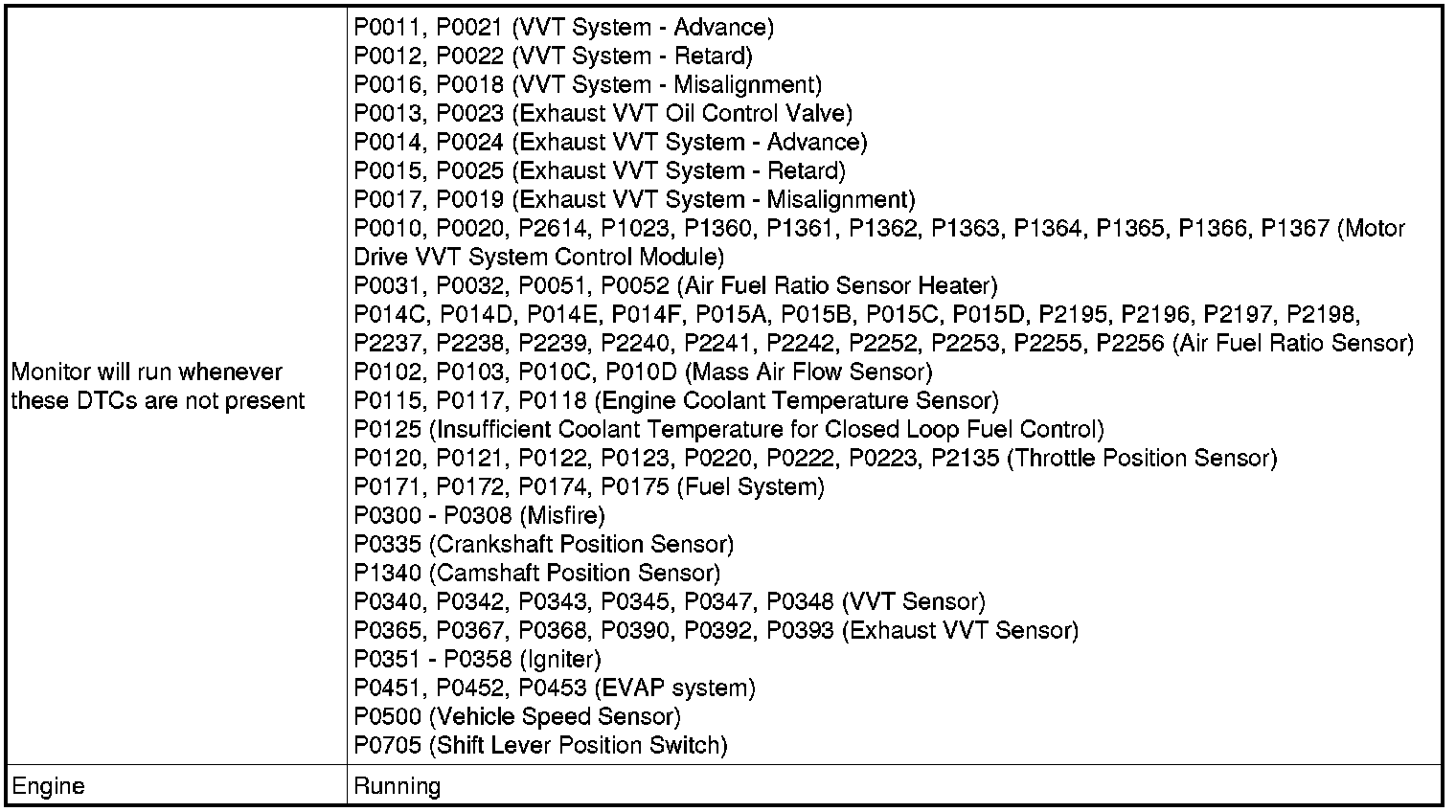

TYPICAL ENABLING CONDITIONS

Functional check:

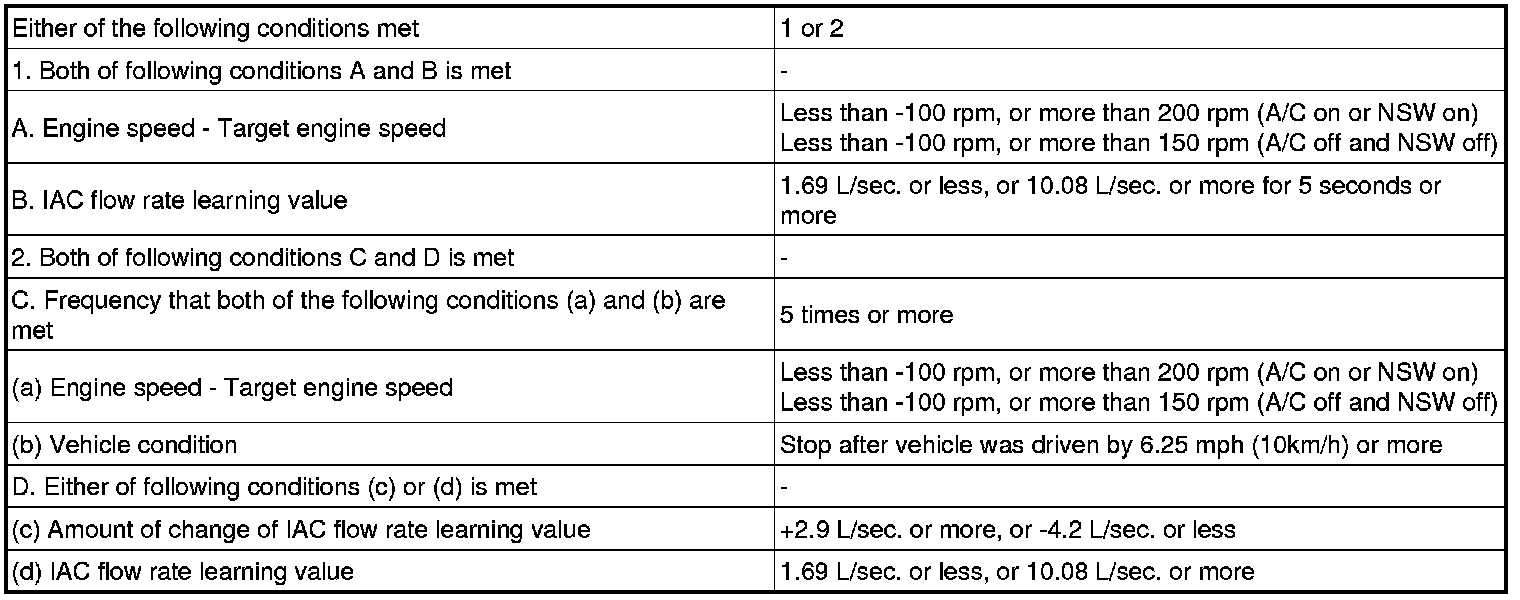

TYPICAL MALFUNCTION THRESHOLDS

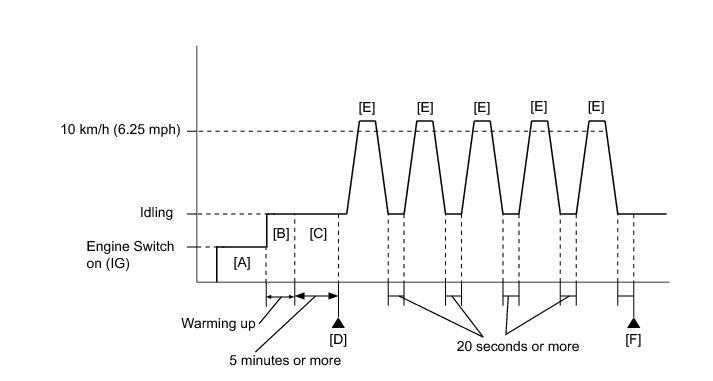

CONFIRMATION DRIVING PATTERN





1. Connect the Techstream to the DLC3.

2. Turn the engine switch on (IG) and turn the Techstream on.

3. Clear DTCs (even if no DTCs are stored, perform the clear DTC operation).

4. Turn the engine switch off and wait for at least 30 seconds.

5. Turn the engine switch on (IG) and turn the Techstream on [A].

6. Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher with all the accessories switched off [B].

7. Idle the engine for 5 minutes or more [C].

HINT
In order to keep the idling stable, turn off the A/C and all other electric loads and do not perform any shift operations.

8. Enter the following menus: Powertrain / Engine / Trouble Codes [D].

9. Read the pending DTCs.

HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.

10. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

11. Input the DTC: P0505.

12. Check the DTC judgment result.





HINT
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows INCOMPLETE or N/A, perform steps [E] and [F].

13. Accelerate the vehicle to 10 km/h (6.25 mph) or more, and then idle the engine for 20 seconds or more [E].

14. Repeat step [E] 5 times.

15. Enter the following menus: Powertrain / Engine / Trouble Codes [F].

16. Read the pending DTCs.

HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.

17. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

18. Input the DTC: P0505.

19. Check the DTC judgment result.





HINT
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.

20. If the judgment result is INCOMPLETE or N/A and no pending DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

INSPECTION PROCEDURE

HINT
- The following conditions may also cause DTC P0505 to be set:
(1) The floor carpet overlapping onto the accelerator pedal, causing the accelerator pedal to be slightly depressed and therefore the throttle valve position to be slightly open.
(2) The accelerator pedal being not fully released.
- Read freeze frame data using the Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
- Refer to "Data List / Active Test" [Engine Speed, ISC Feedback Value and ISC Learning Value] Data List / Active List.

PROCEDURE

1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0505)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Trouble Codes.

(e) Read DTCs.

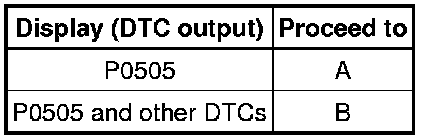

Result:





HINT
If any DTCs other than P0505 are output, troubleshoot those DTCs first.

B -- GO TO DTC CHART SFI System
A -- Continue to next step.

2. CHECK VENTILATION HOSE (HOSE CONNECTIONS)

OK:

Ventilation hose is connected correctly and is not damaged.

NG -- REPAIR OR REPLACE VENTILATION HOSE Testing and Inspection
OK -- Continue to next step.

3. CHECK AIR INDUCTION SYSTEM

(a) Check the air induction system for vacuum leakage.

OK:

No leakage from air induction system.

NG -- REPAIR OR REPLACE AIR INDUCTION SYSTEM
OK -- Continue to next step.

4. CHECK THROTTLE BODY (VISUALLY CHECK THROTTLE VALVE)

(a) Check for contamination between the throttle valve and the housing. If necessary, clean the throttle body. And check that the throttle valve moves smoothly.

OK:

Throttle valve is not contaminated with foreign objects and moves smoothly.

NG -- REPLACE THROTTLE BODY Removal

OK -- REPLACE ECM Removal
